Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Use a flat bladed tool in order to open the front and rear bezel covers.

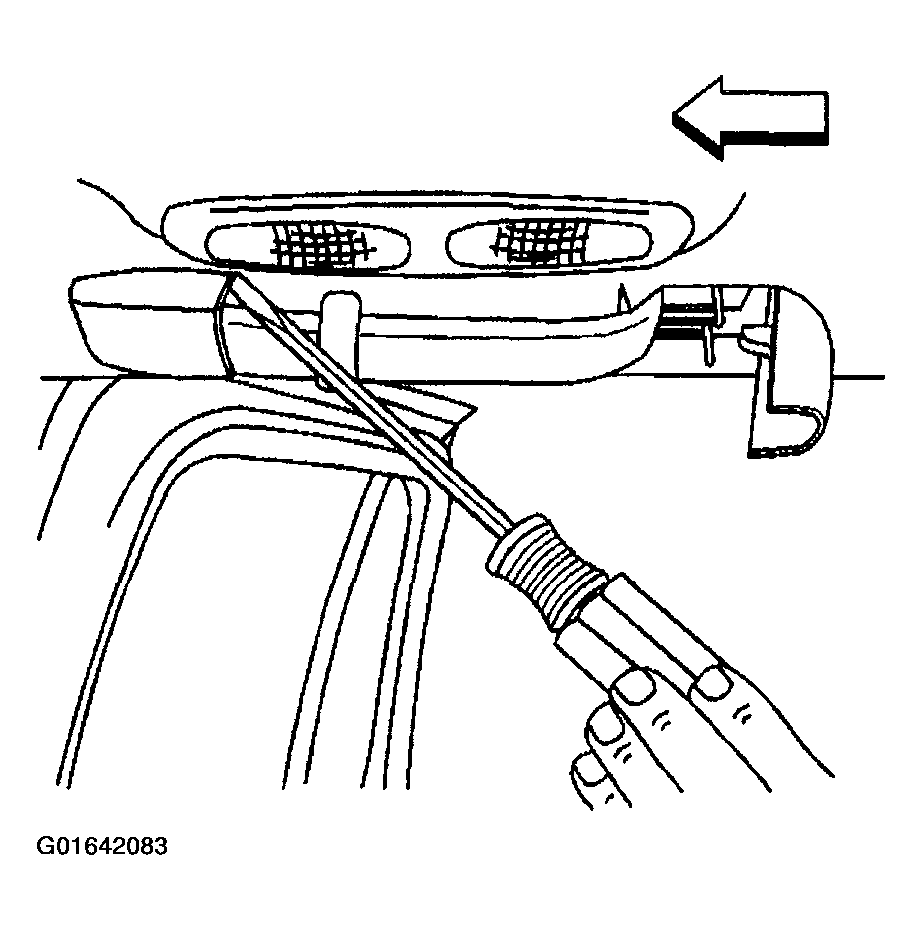

Fig 1: Front And Rear Bezel Covers

G01642083

Courtesy of GENERAL MOTORS CORP.

Position the stem of a flat bladed tool at the rear bezel.
Push the rear bezel rearward 6 mm (1/4 in) and pull down on the handle in order to release the roof panel retaining tab.
Position the stem of a flat bladed tool at the inside edge of the front bezel assembly.

Fig 2: Stem Of Flat Bladed Tool At Rear Bezel

G01642084

Courtesy of GENERAL MOTORS CORP.

Push the front bezel assembly forward 6 mm (1/4 in) and pull down on the handle in order to release the roof panel retaining tab.
Partially lower the headliner in order to expose the rear handle retaining tab (1).

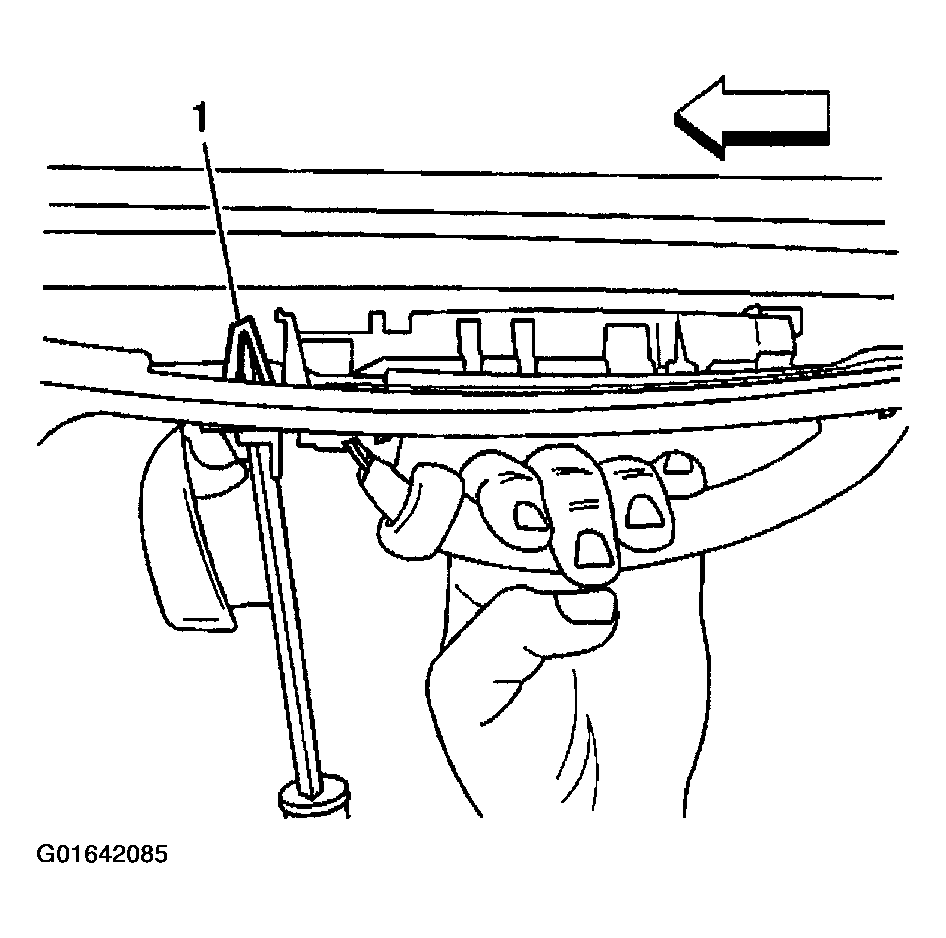

Fig 3: Expose Rear Handle Retaining Tab

G01642085

Courtesy of GENERAL MOTORS CORP.

Insert the tip of a flat bladed tool into the rear retaining tab (1).
With the retaining tab (1) released, pull down on the handle in order to release the roof panel tab from the bezel.
Remove the handle from the roof panel.

Fig 4: Handle From Roof Panel

G01642086

Courtesy of GENERAL MOTORS CORP.

Partially lower the headliner in order to expose the front handle retaining tab (1).

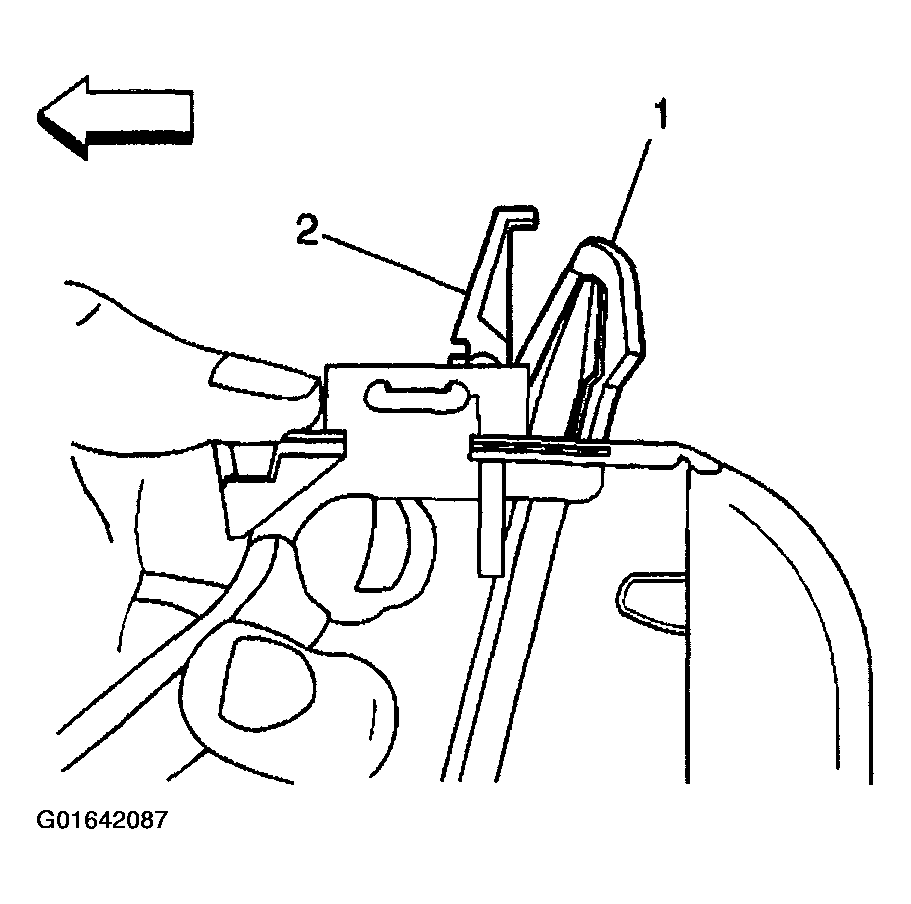

Fig 5: Roof Panel Tab From Bezel

G01642087

Courtesy of GENERAL MOTORS CORP.

Insert the tip of a flat bladed tool into the front retaining tab (1).
With the retaining tab (1) released, pull down on the handle in order to release the roof panel tab (2) from the bezel.
Remove the handle from the roof panel.
Rotate the bezels in order to release the bezel retaining tabs.
Remove the bezels from the headliner.
