Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the switch bezel assembly from the seat assembly. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
  2. Remove the buttons from the switch.
  3. Release the tabs that retain the seat switch to the seat bezel assembly.
  4. Disconnect the electrical connector from the switch.
  5. Remove the seat switch from the seat bezel assembly.

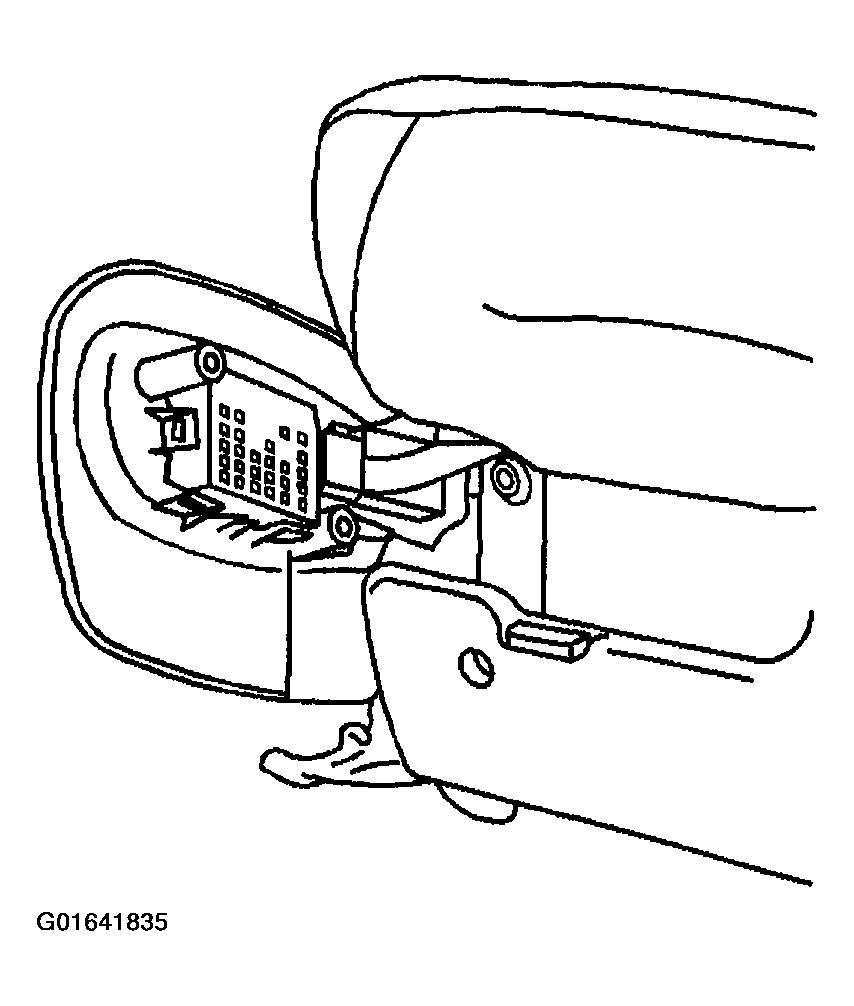

    6. Fig 1: Seat Switch Power
    G01641835Courtesy of GENERAL MOTORS CORP.
