Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 3 screws that retain the switch bezel to the seat.

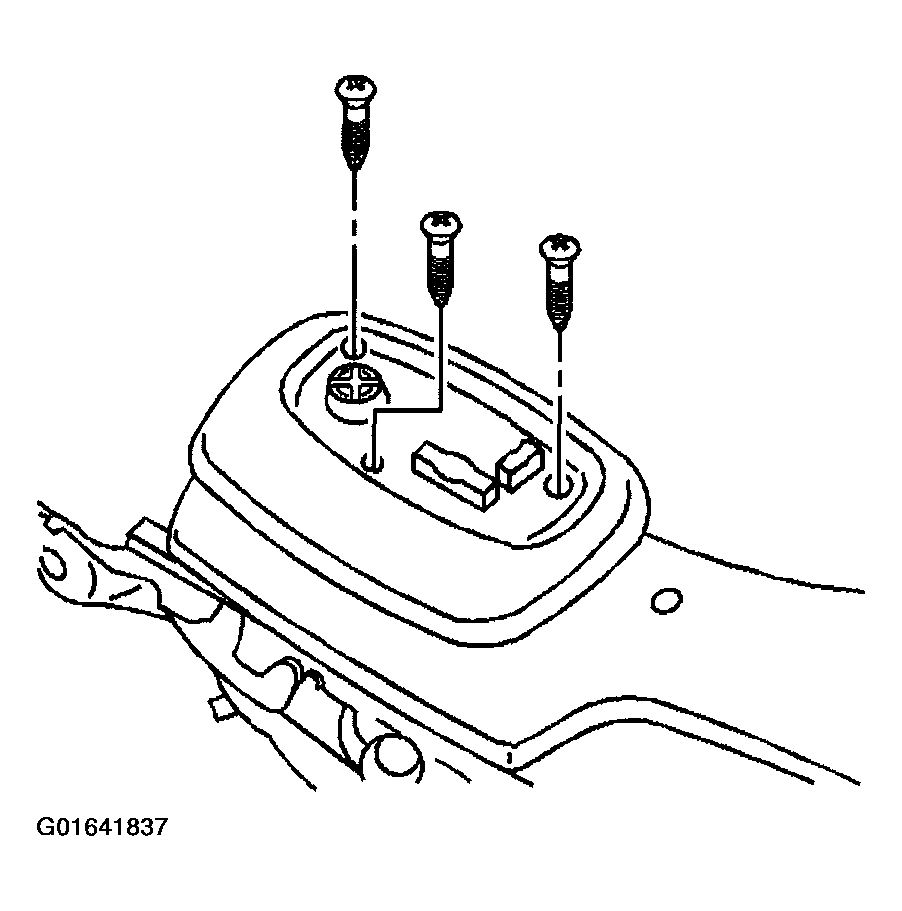

    2. Fig 1: 3 Screws Switch Bezel To Seat
    G01641837Courtesy of GENERAL MOTORS CORP.
  2. Partially remove the switch bezel from the seat.

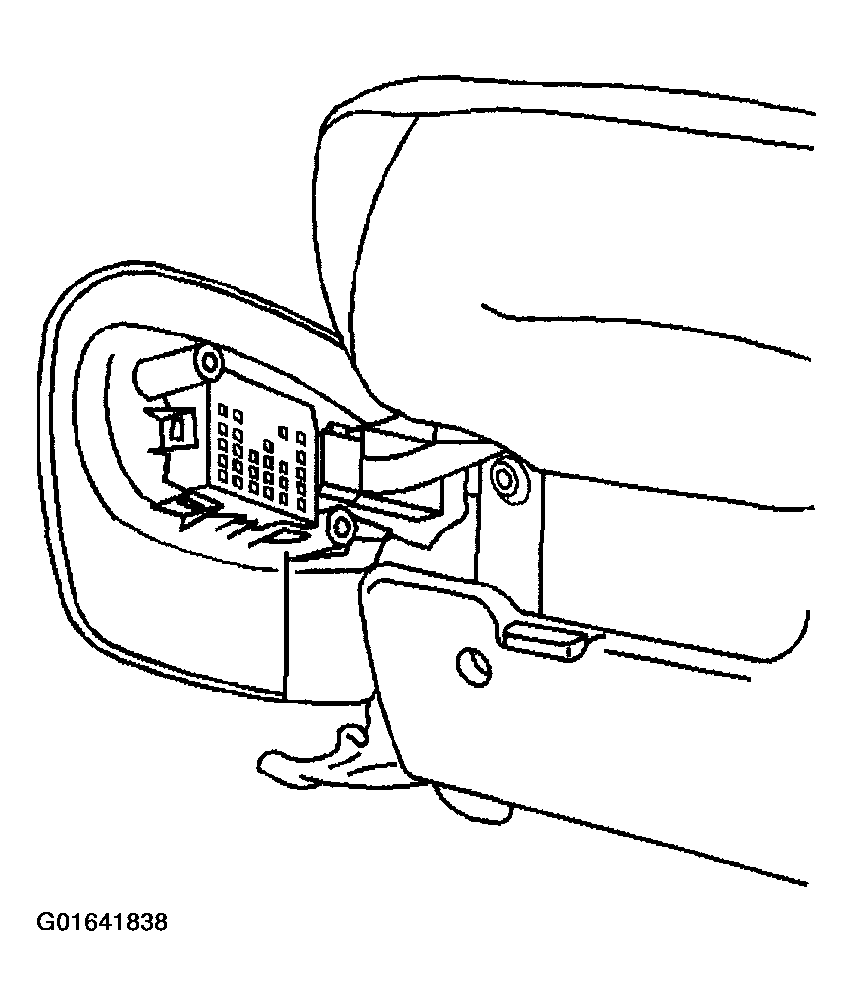

    3. Fig 2: Seat Switch Power
    G01641838Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat switches from the switch bezel by releasing the retaining tabs Refer to SEAT SWITCH REPLACEMENT - POWER  .
  4. Remove the lumbar switch from the switch bezel by releasing the retaining tabs. Refer to LUMBAR SWITCH REPLACEMENT - FRONT  .
  5. Remove the switch bezel from the seat.
