Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the seat cushion to expose the seat riser latch assembly (2).
  2. Remove the seat riser latch assembly (2) from the outer riser assembly stud (1).

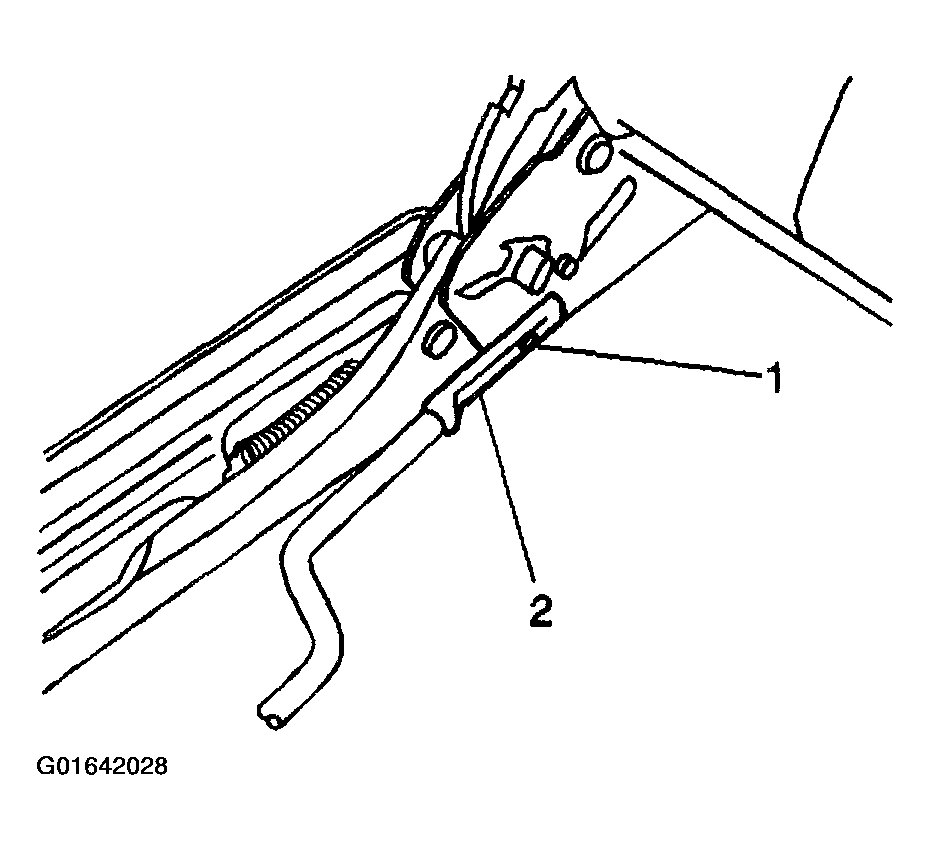

    3. Fig 1: Seat Riser Latch Assembly
    G01642028Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat riser latch assembly (1) from the seat latch rod (2).

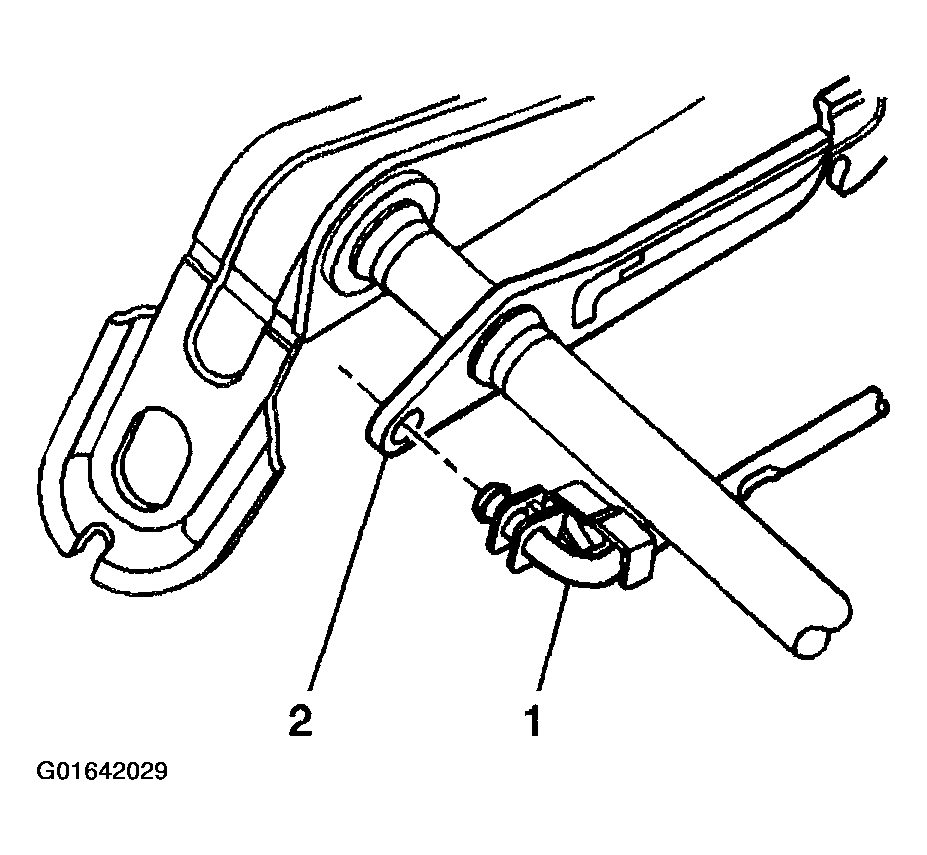

    4. Fig 2: Seat Riser Latch Assembly
    G01642029Courtesy of GENERAL MOTORS CORP.
