Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the three nuts securing the seat assembly to the vehicle.
  2. Remove the seat belt anchors from the floor studs.
  3. Remove the three seat mounting bolts.
  4. Remove the seat assembly from the vehicle.

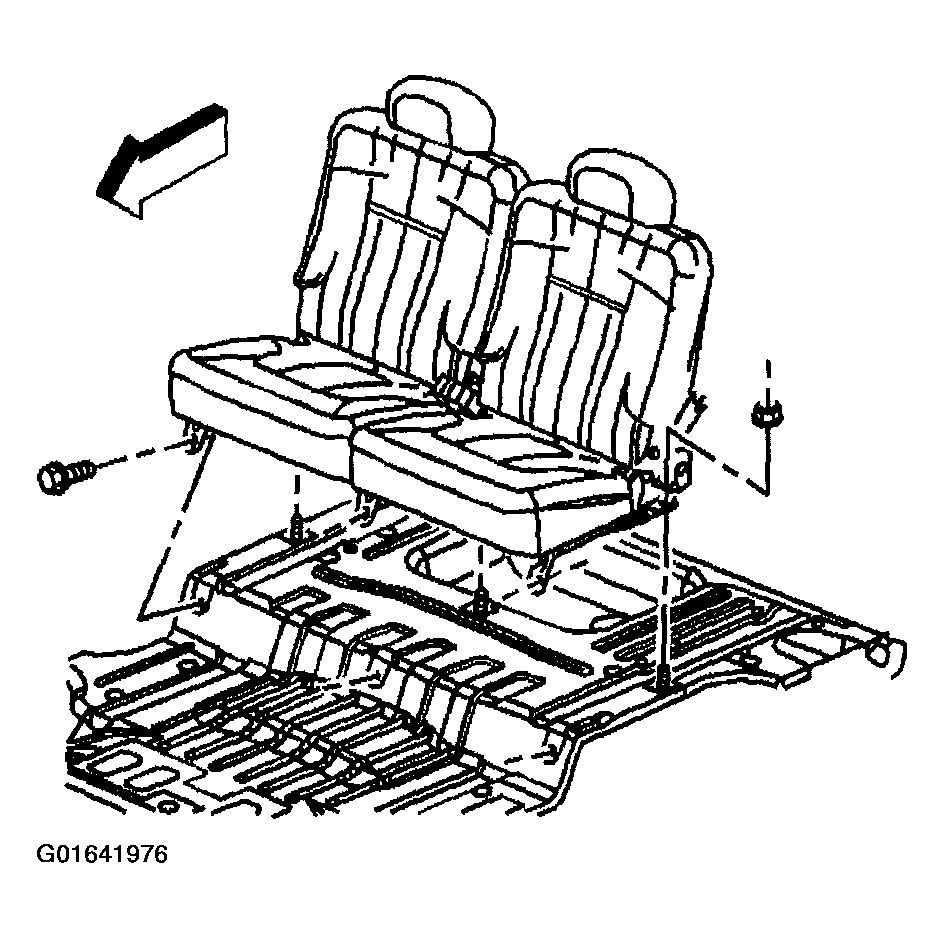

  5. Fig 1: Three Seat Mounting Bolts
    G01641976Courtesy of GENERAL MOTORS CORP.
