Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the communication interface module if removing the right-hand rear seat. Refer to COMMUNICATION INTERFACE MODULE REPLACEMENT (TRAILBLAZER, ENVOY & BRAVADA) or COMMUNICATION INTERFACE MODULE REPLACEMENT (TRAILBLAZER EXT & ENVOY XL) in Cellular Communications.
  2. Remove the front two rear seat mounting nuts (2) securing the seat to the vehicle.

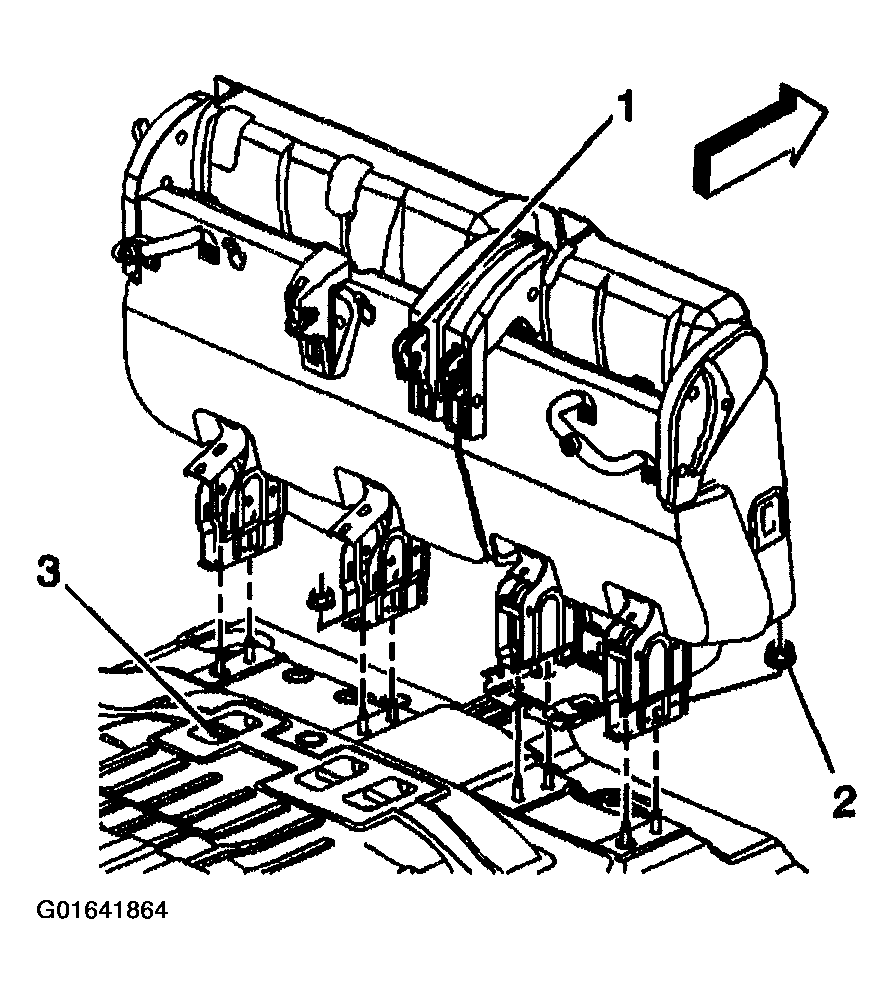

    3. Fig 1: Front Two Rear Seat Mounting Nuts
    G01641864Courtesy of GENERAL MOTORS CORP.
  3. Fold the seat to the stowed position.
  4. Remove the rear two rear seat mounting nuts (2) securing the seat to the vehicle.
  5. Remove the seat from the vehicle.
