Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat to the vehicle.
    IMPORTANT: Do not move or adjust the seat adjuster release handle or the seat back until all 4 fastener attachments have been made. Do not tighten the front seat mounting bolt until the remaining 3 mounting nuts have been tightened.
  2. Install the front seat mounting bolt. Do not tighten.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the three front seat mounting nuts on the floor studs.

    Tighten

    Tighten the front seat mounting nuts to 45 N.m (33 lb ft).

    Tighten

    Tighten the front seat mounting bolt to 45 N.m (33 lb ft).

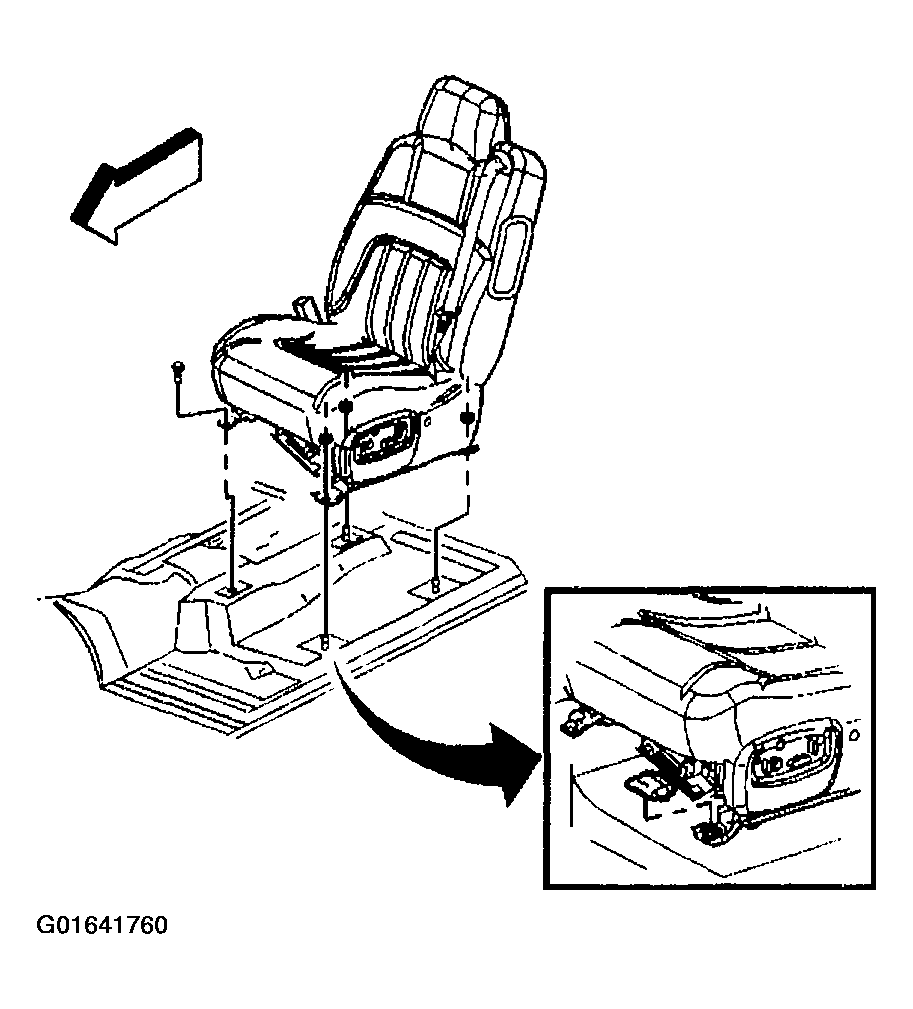

    4. Fig 1: Front Seat Mounting Bolt
    G01641760Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical harness. Clip the harness to the seat bracket.
  5. Enable SIR. Refer to ZONE 7 and to ZONE 9 in SIR.
  6. Install the seat mounting fastener covers.
