Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2  .
  2. Remove the two bolts (2) securing the rear seat cushion assembly (1) to the seat latch rod (3).

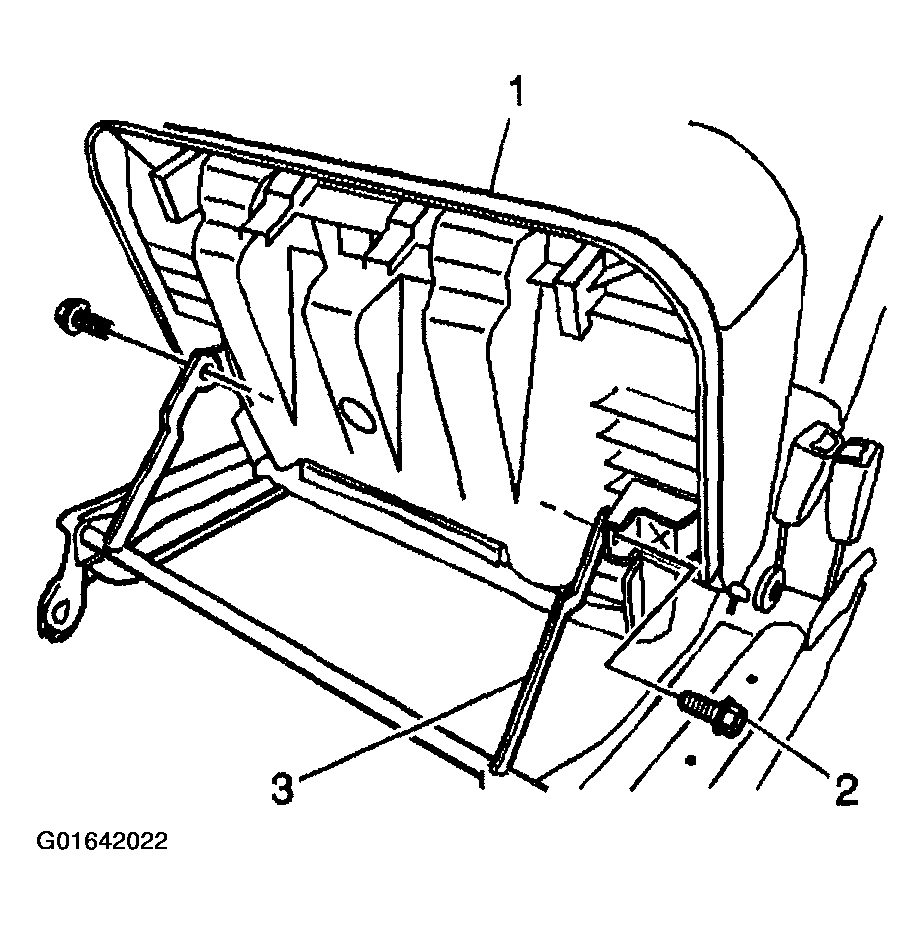

    3. Fig 1: Two Bolts Of Rear Seat Cushion Assembly
    G01642022Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat riser latch assembly (1) from the seat latch rod (2).

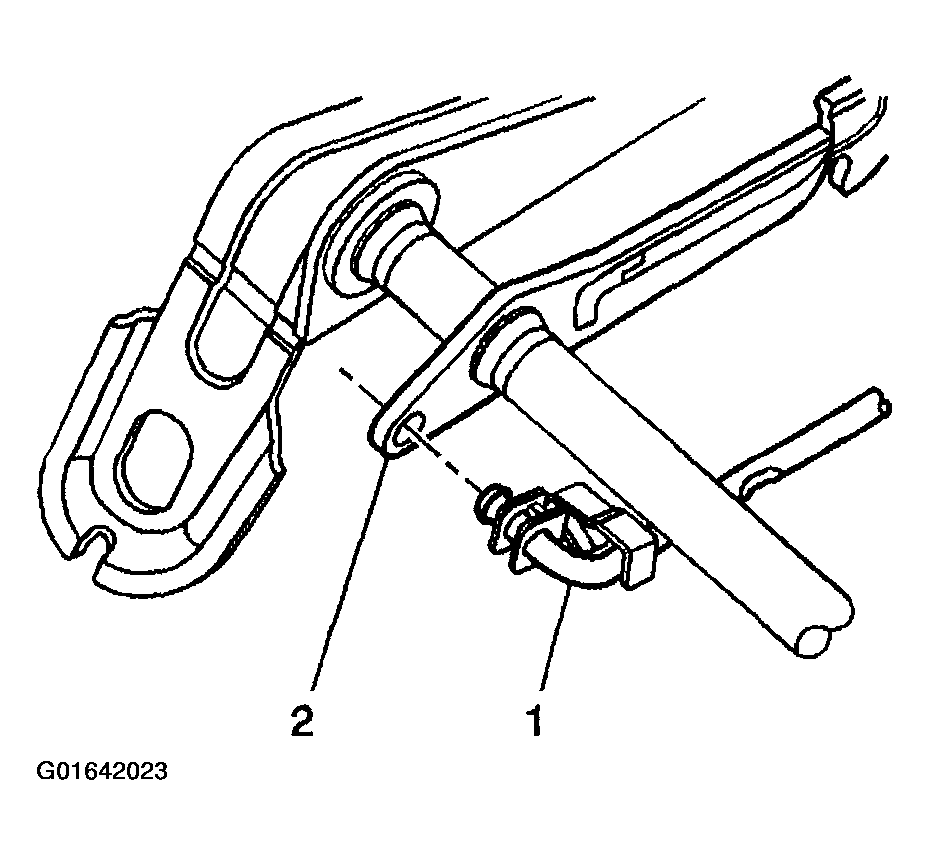

    4. Fig 2: Seat Riser Latch Assembly
    G01642023Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer nut (2) from each end of the seat latch rod (1).
  5. Remove the seat latch rod.

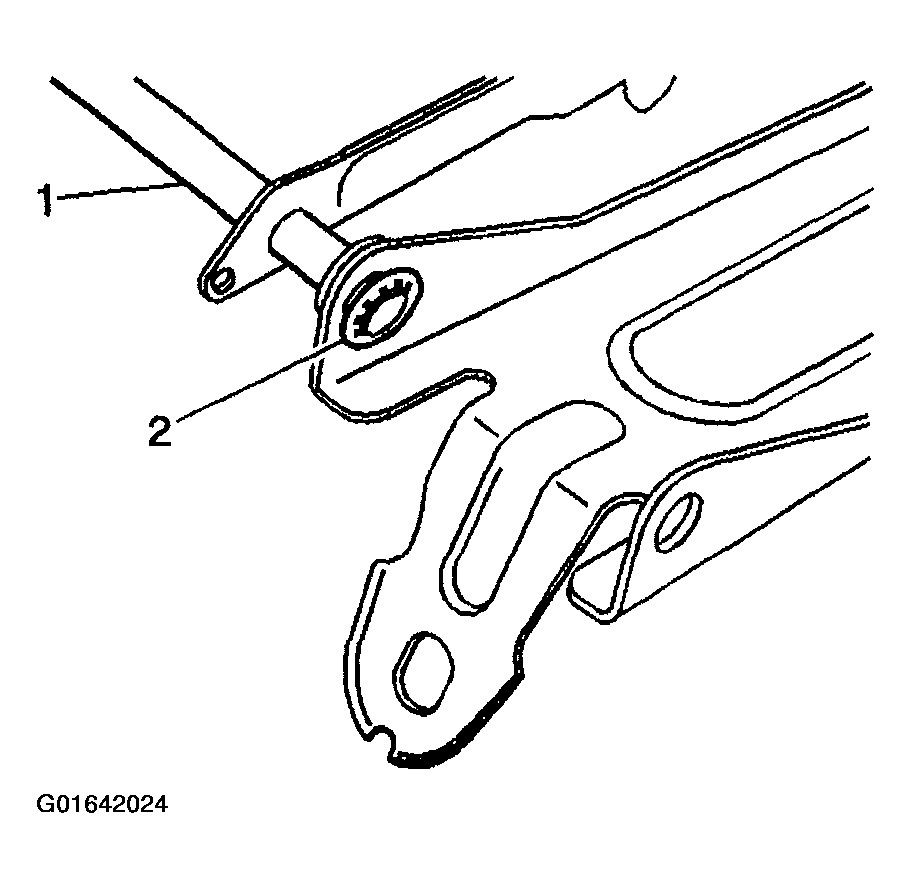

    6. Fig 3: Retainer Nut From End Of Seat Latch Rod
    G01642024Courtesy of GENERAL MOTORS CORP.
