Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat latch rod (1) to the inner and outer riser assemblies.
  2. Install a retainer nut (2) on each end of the seat latch rod (1).

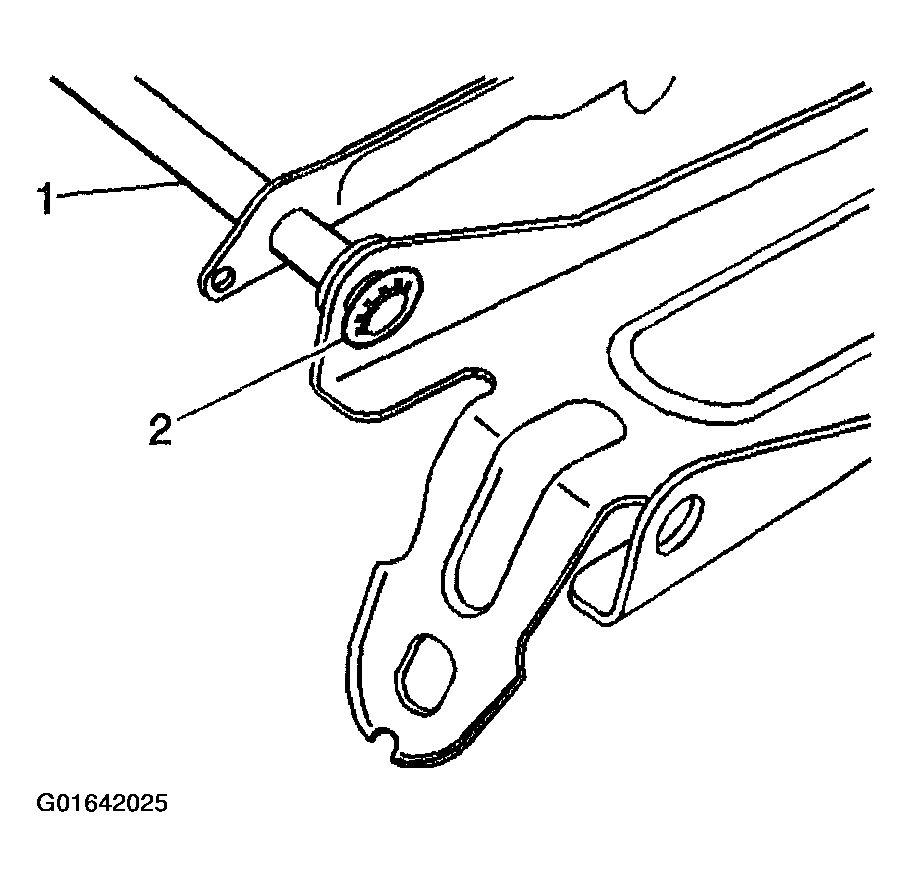

    3. Fig 1: Retainer Nut
    G01642025Courtesy of GENERAL MOTORS CORP.
  3. Install the seat riser latch assembly (1) to the seat latch rod (2).

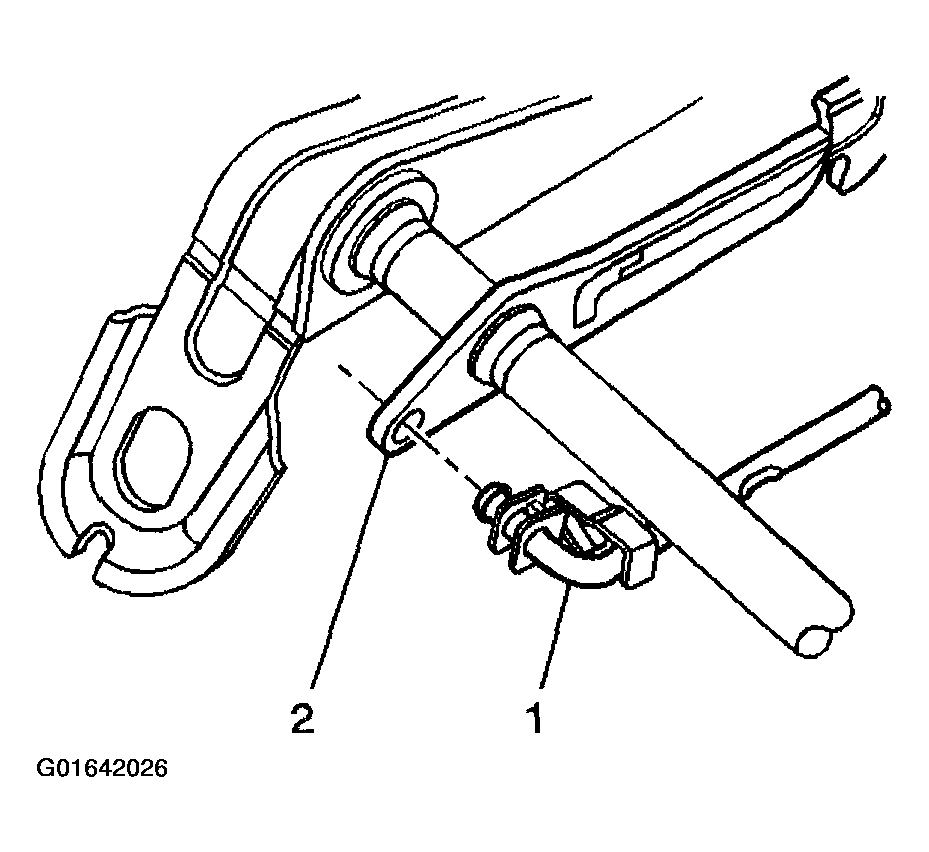

    Fig 2: Seat Riser Latch Assembly
    G01642026Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the rear seat cushion assembly (1) to the seat latch rod (3) with two bolts (2).

    Tighten

    Tighten the rear seat cushion bolts to 11 N.m (97 lb in).

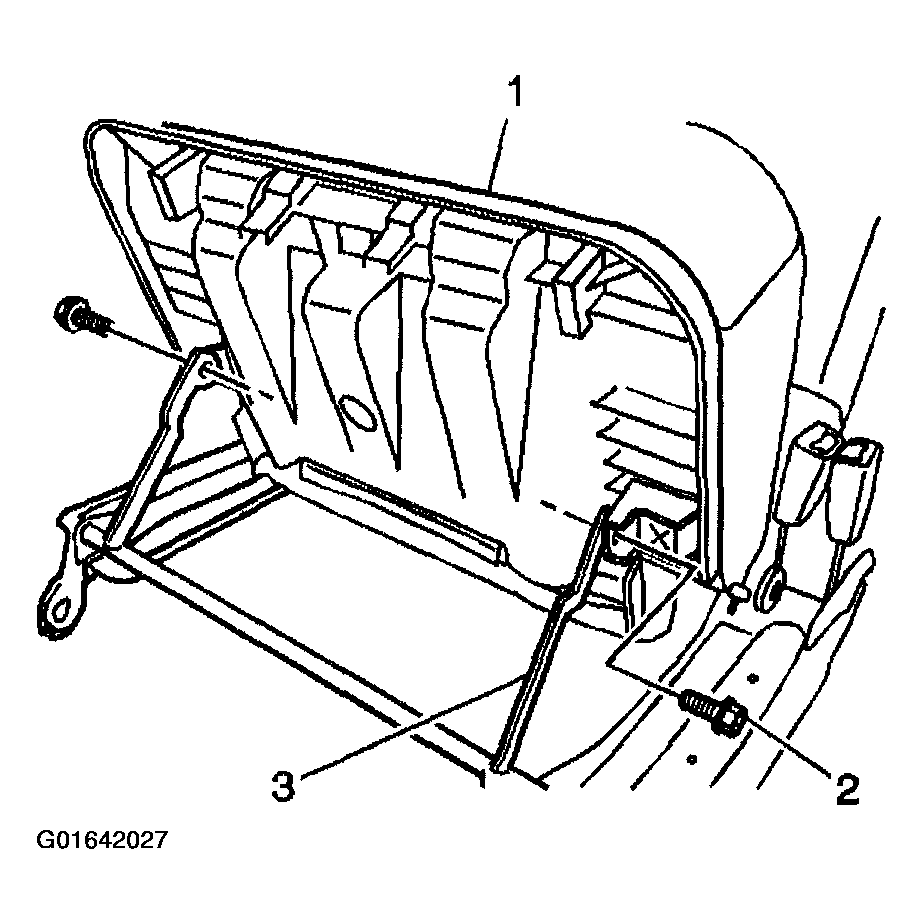

    5. Fig 3: Rear Seat Cushion Assembly
    G01642027Courtesy of GENERAL MOTORS CORP.
  5. Install the seat in the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2  .
