Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the extension panel up to expose the hinge cover.
  2. Remove the extension panel hinge finish cover (2).

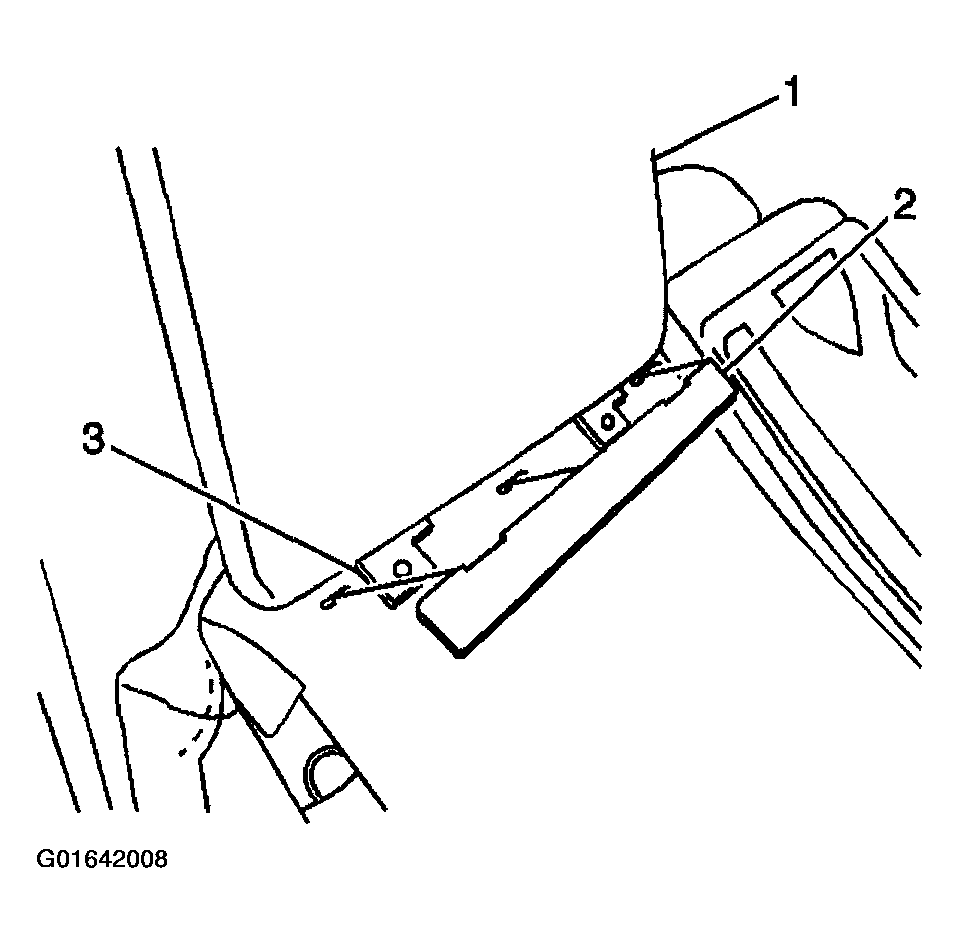

  3. Fig 1: Extension Panel Hinge Finish Cover
    G01642008Courtesy of GENERAL MOTORS CORP.
