Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
Remove the rear seat bracket trim covers (1).
Remove the rear seat bracket mounting nuts (2).

Fig 1: Rear Seat Bracket Mounting Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the rear seat bracket.
Remove the two bolts (2) securing the support (1) to the seat cushion trim panel.

Fig 2: Two Bolts Securing Support

Courtesy of GENERAL MOTORS CORP.

Remove the seat cover J-strips (1) from the seat cushion trim panel (2).

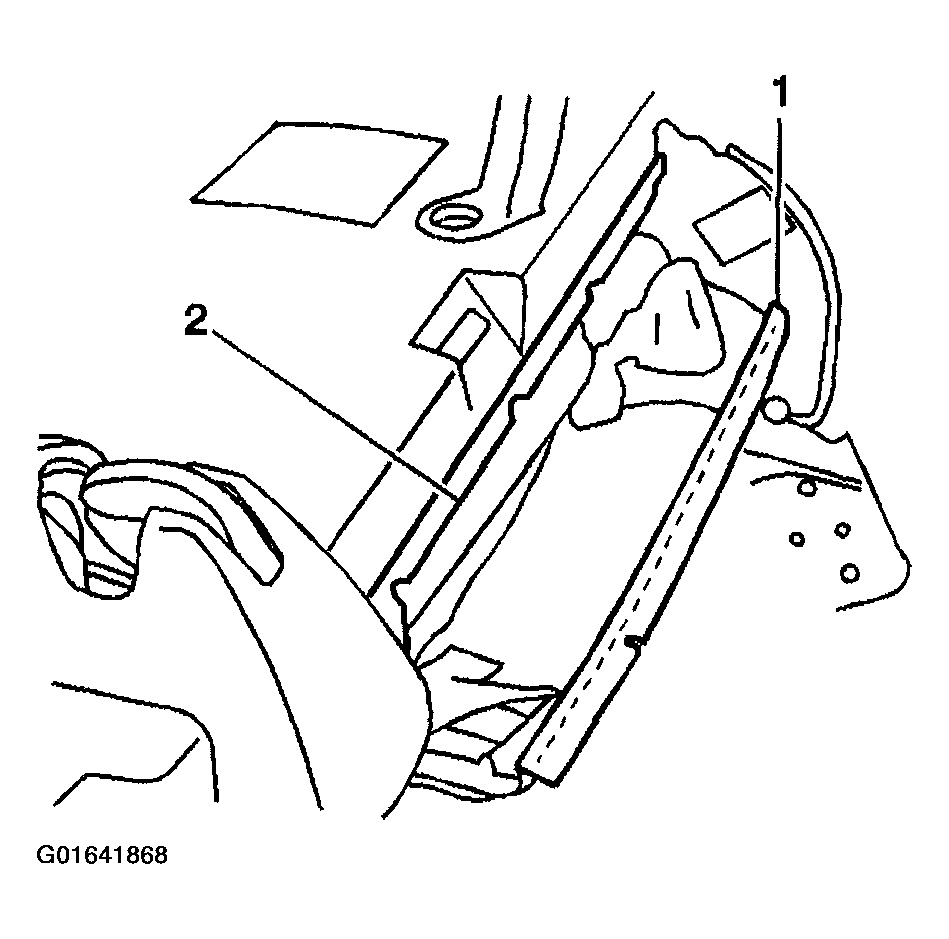

Fig 3: Seat Cover J-Strips From Seat Cushion Trim Panel

Courtesy of GENERAL MOTORS CORP.

Remove the screws securing the seat cushion trim panel to the seat frame.
Remove the seat cushion trim panel.

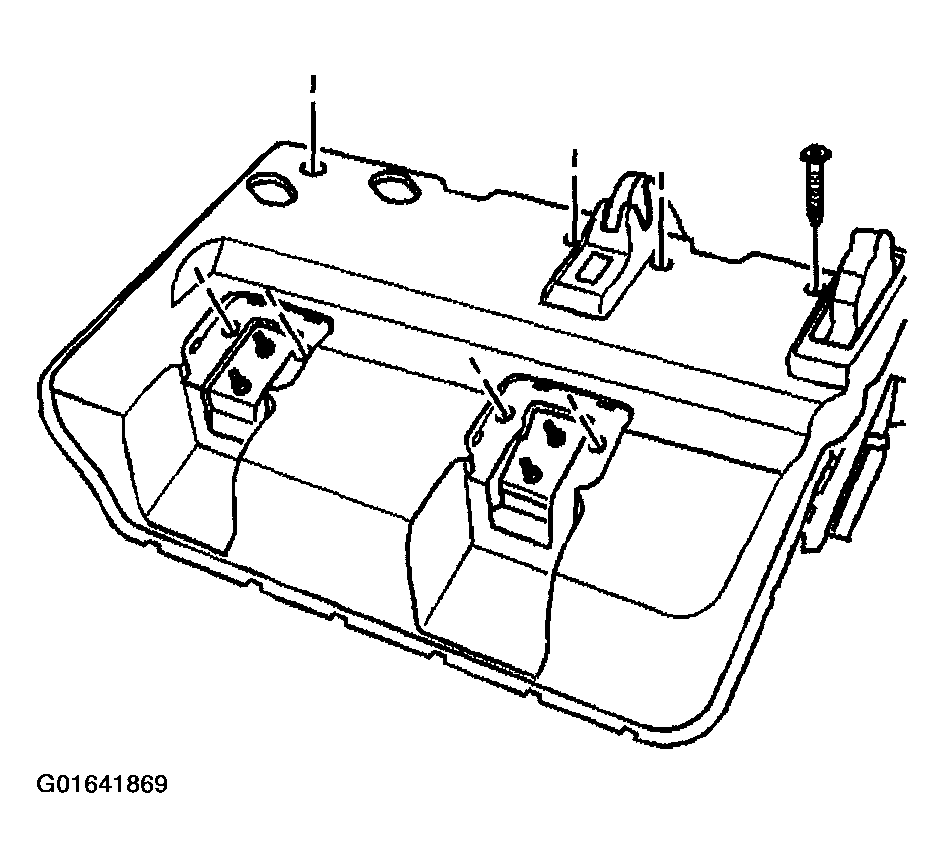

Fig 4: Screws Seat Cushion Trim Panel To Seat Frame

Courtesy of GENERAL MOTORS CORP.
