Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Install the screws securing the seat cushion trim panel to the seat cushion assembly.
Tighten

Tighten the rear seat cushion trim panel screws to 2 N.m (18 lb in).

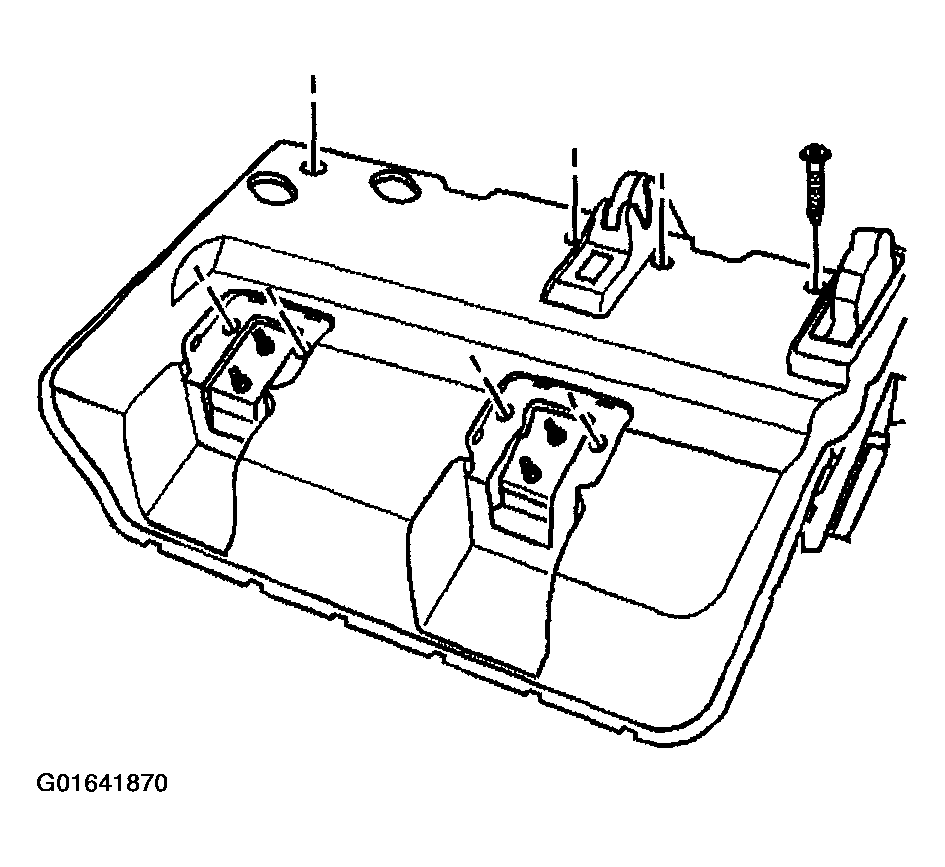

Fig 1: Screws Seat Cushion Trim Panel To Seat Cushion Assembly

Courtesy of GENERAL MOTORS CORP.

Install the seat cover J-strips (1) to the seat cushion trim panel (2).

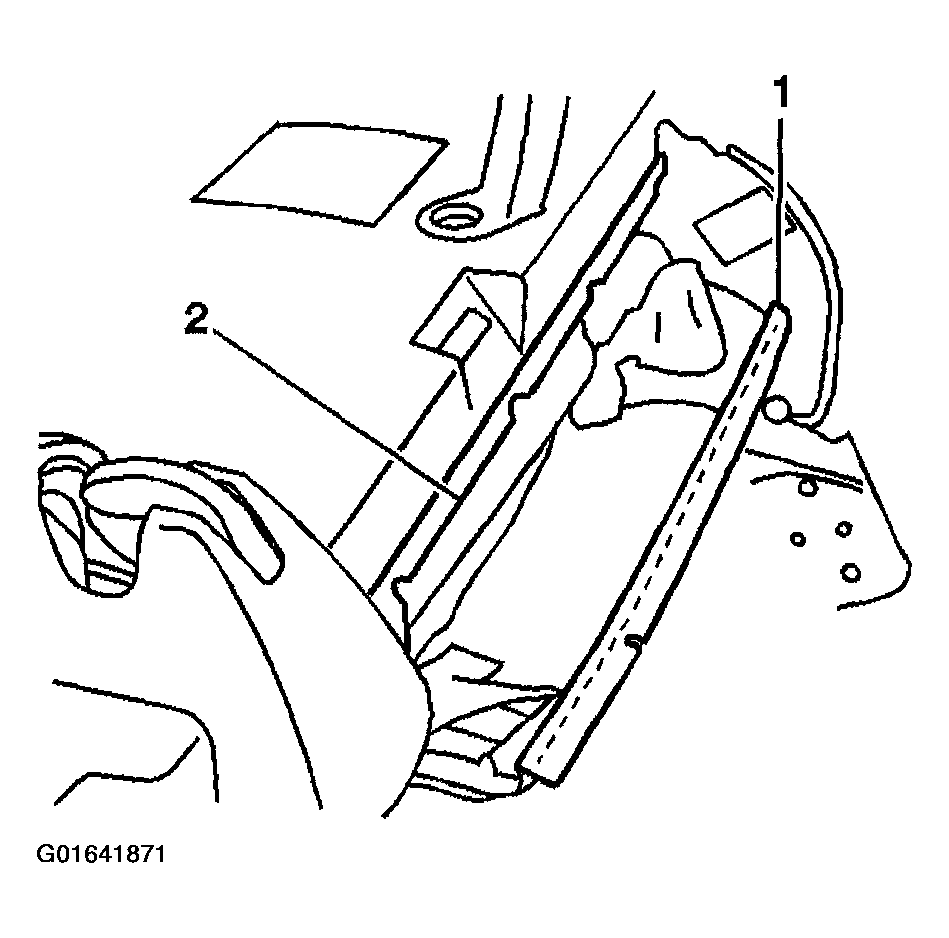

Fig 2: Seat Cover J-Strips To Seat Cushion Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the two bolts (2) securing the support (1) to the seat cushion trim panel.
Tighten

Tighten the rear seat support bolts to 35 N.m (26 lb ft).

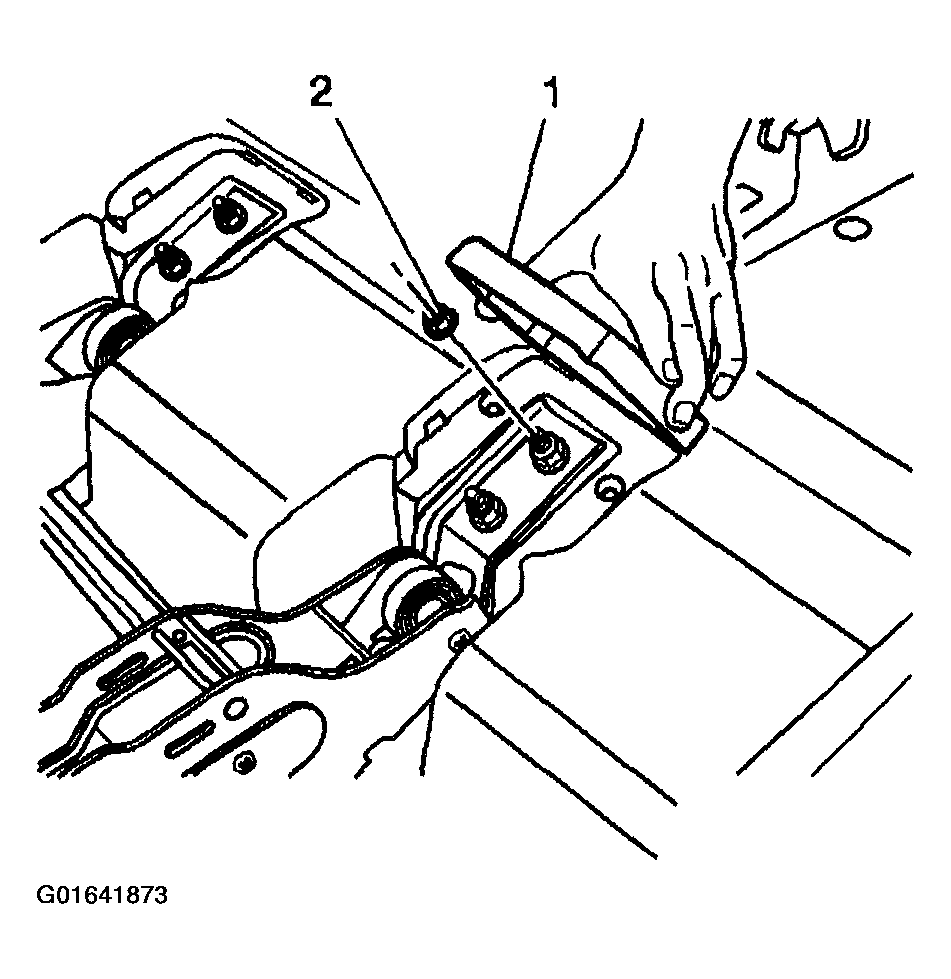

Fig 3: Two Bolts Securing Support To Seat Cushion Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the rear seat bracket with the four mounting nuts (2).
Tighten

Tighten the rear seat bracket mounting nuts to 25 N.m (18 lb ft).
Install the rear seat bracket trim covers (1).

Fig 4: Rear Seat Bracket Trim Covers

Courtesy of GENERAL MOTORS CORP.

Install the seat in the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT, ENVOY XL) .
