Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the small loop (1) onto the rear seat cushion latch (2).

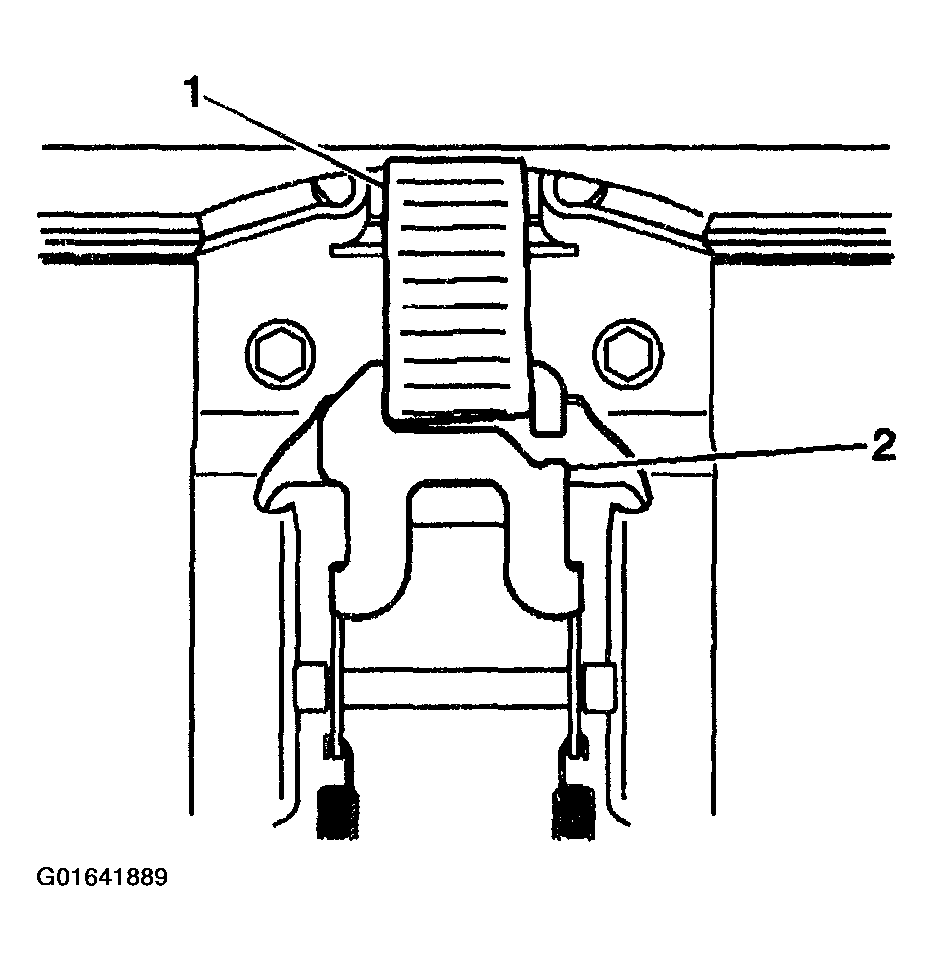

Fig 1: Small Loop Onto Rear Seat Cushion Latch

Courtesy of GENERAL MOTORS CORP.

Install the strap through the opening in the seat pan.

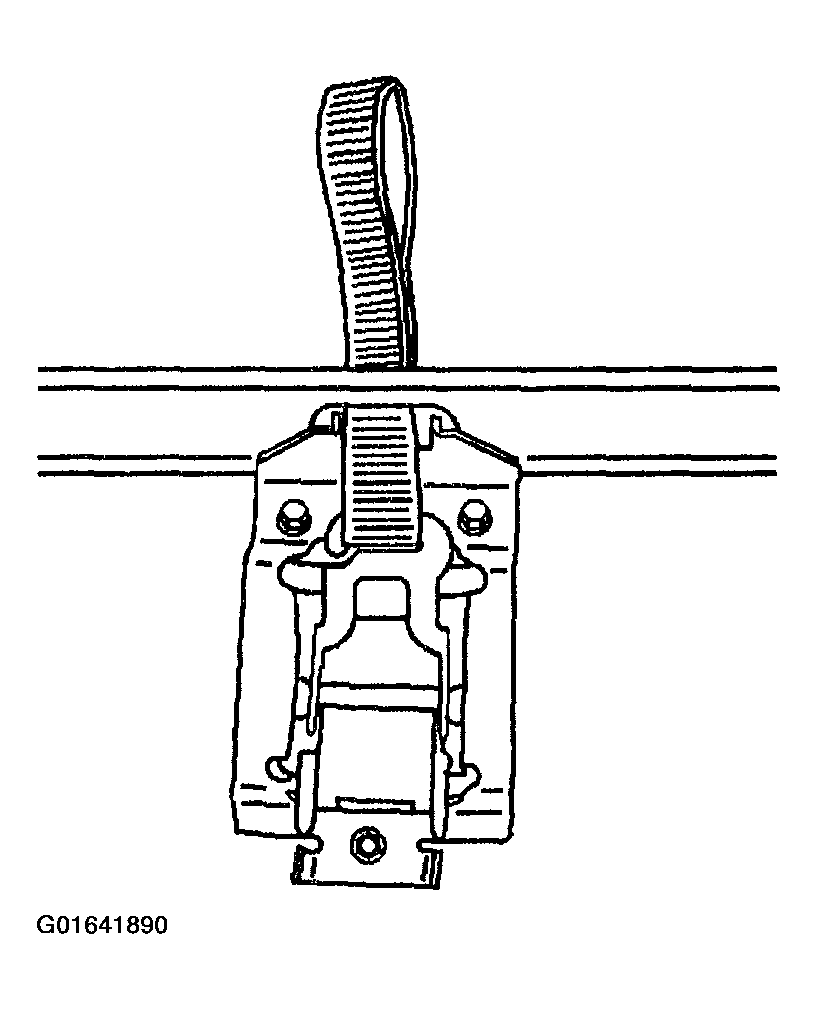

Fig 2: Strap Through Opening In Seat Pan

Courtesy of GENERAL MOTORS CORP.

Install the rear-seat cushion cover and the pad. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
Install the rear seat cushion assembly to the vehicle. Refer to SEAT CUSHION REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) .
