Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the two rear seat cushion bolts (2) securing the rear seat cushion assembly (1) to the seat latch rod (3).

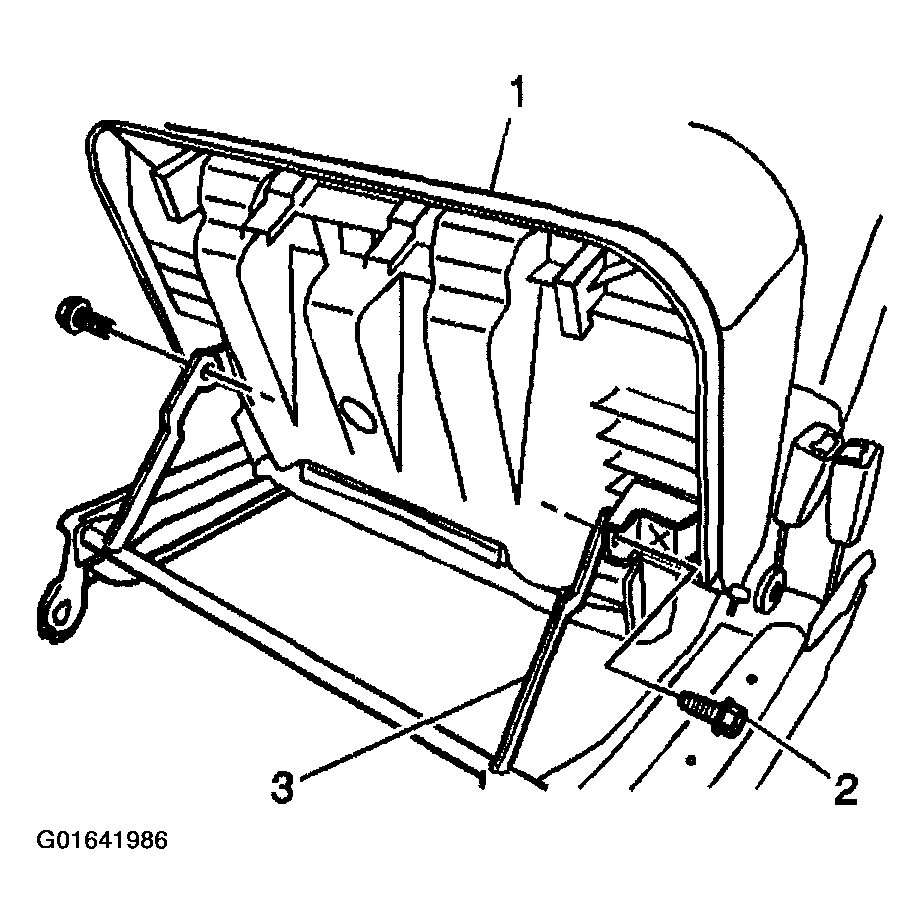

    2. Fig 1: Bolts Rear Seat Cushion
    G01641986Courtesy of GENERAL MOTORS CORP.
  2. Remove the seat cushion assembly.
  3. Remove the pull handle (1). Refer to PULL HANDLE ASSEMBLY REPLACEMENT - REAR NO. 2   .
  4. Remove the J-strips (2) securing the seat cushion cover to the seat cushion panel.
    5. Fig 2: Pull Handle
    G01641987Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat cushion panel from the pad and cover.
