Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel from the power seat by performing the following:
    1. 1.1. Remove the 3 seat switch bezel mounting screws. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
    2. 1.2. Remove the 3 trim panel retaining screws.

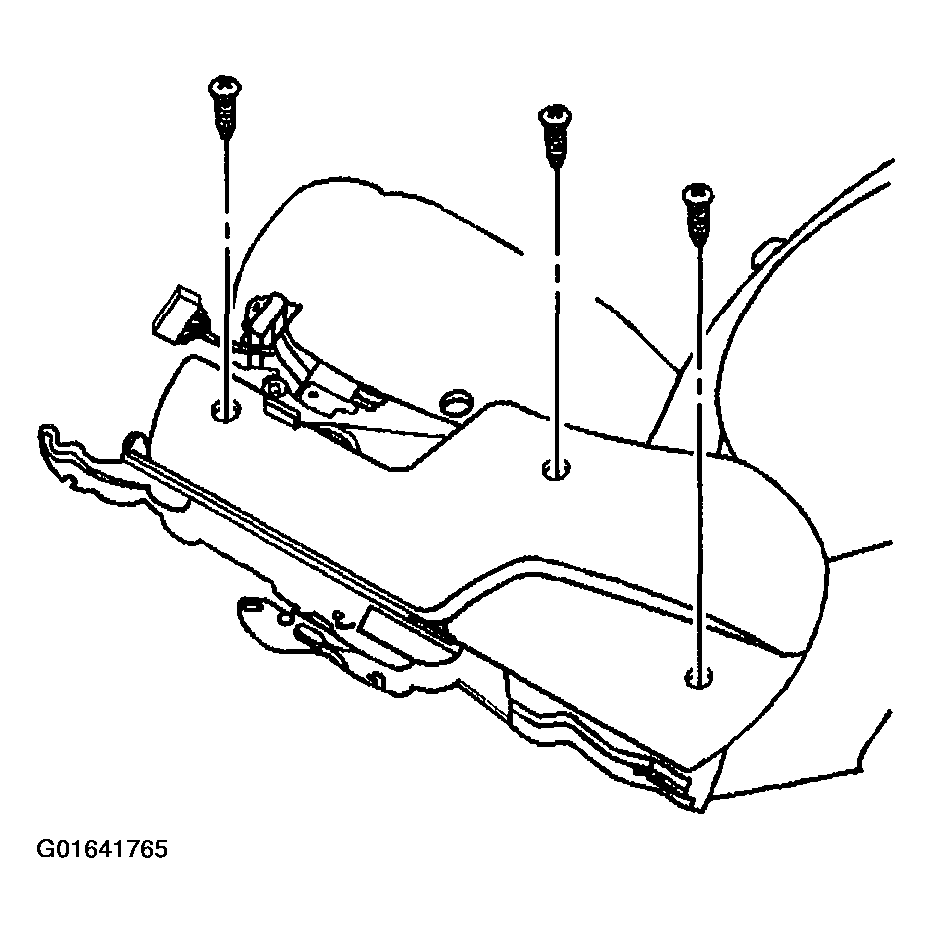

    2. Fig 1: 3 Trim Panel Retaining Screws
    G01641765Courtesy of GENERAL MOTORS CORP.
  2. Remove the trim panel from the manual seat by performing the following steps:
    1. 2.1. Remove the lumbar support knob. Refer to LUMBAR SUPPORT KNOB REPLACEMENT  .
    2. 2.2. Remove the seat back recliner handle. Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT  .
    3. 2.3. Remove the screws from the trim panel. Remove the trim panel from the seat assembly.

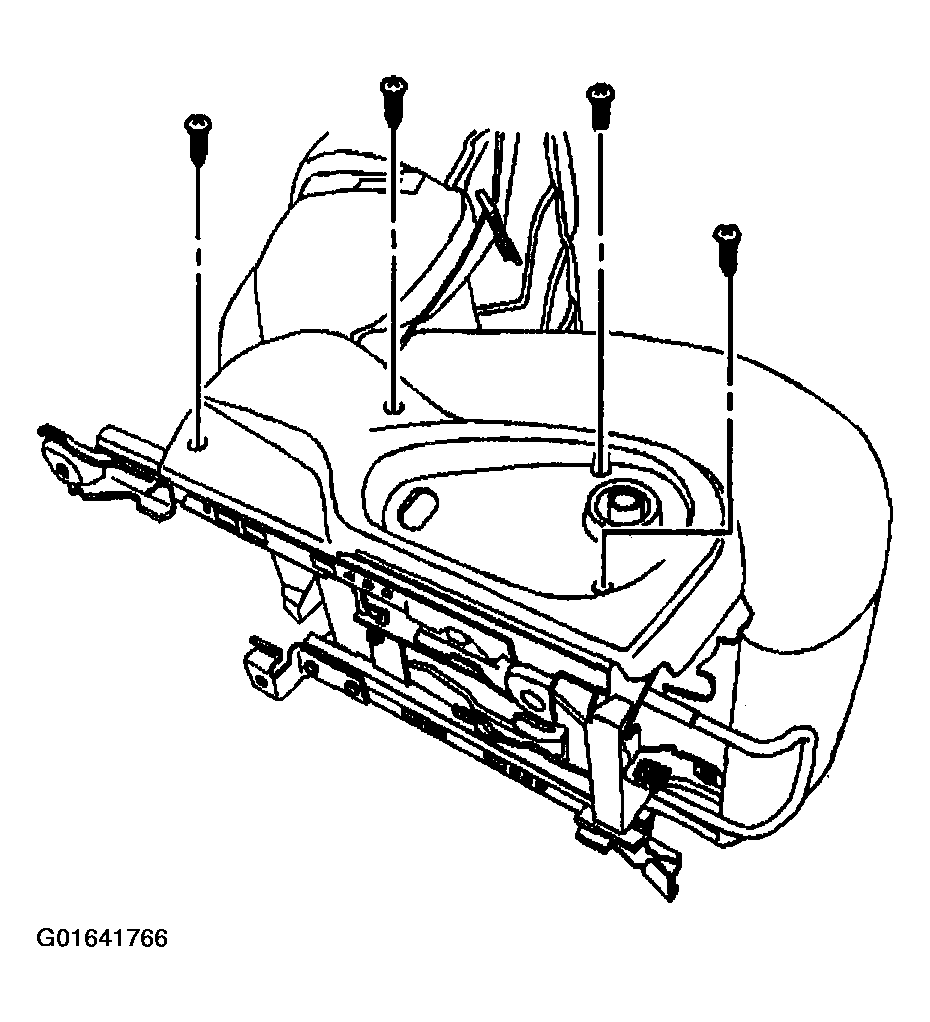

    3. Fig 2: Trim Panel From Manual Seat
    G01641766Courtesy of GENERAL MOTORS CORP.
