Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the trim panel to the power seat by performing the following steps:
1. 1.1. Align the trim panel to the seat assembly.
  NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
2. 1.2. Install the screws retaining the trim panel to the seat assembly.
  Tighten

  Tighten the trim panel screws to 3 N.m (26 lb in).
3. 1.3. Install the 3 seat switch bezel mounting screws.
  Tighten

  Tighten the seat switch bezel mounting screws to 3 N.m (26 lb ft).

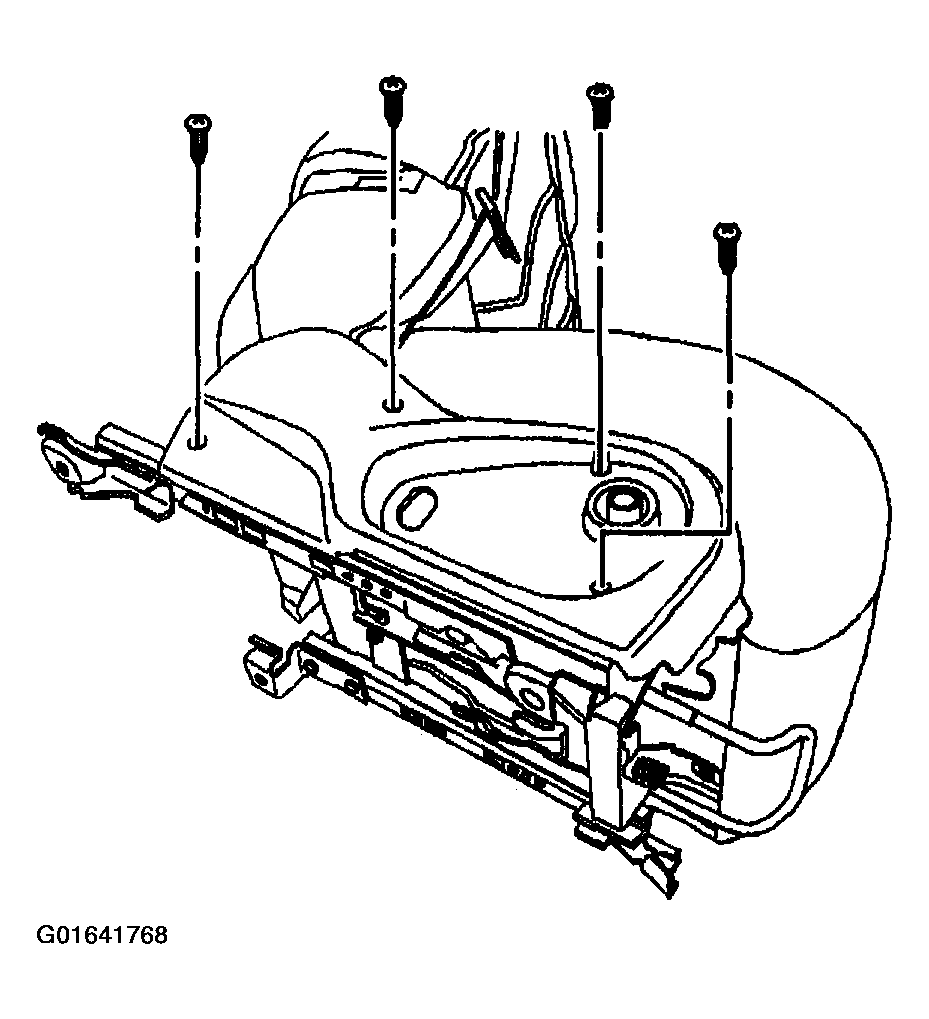

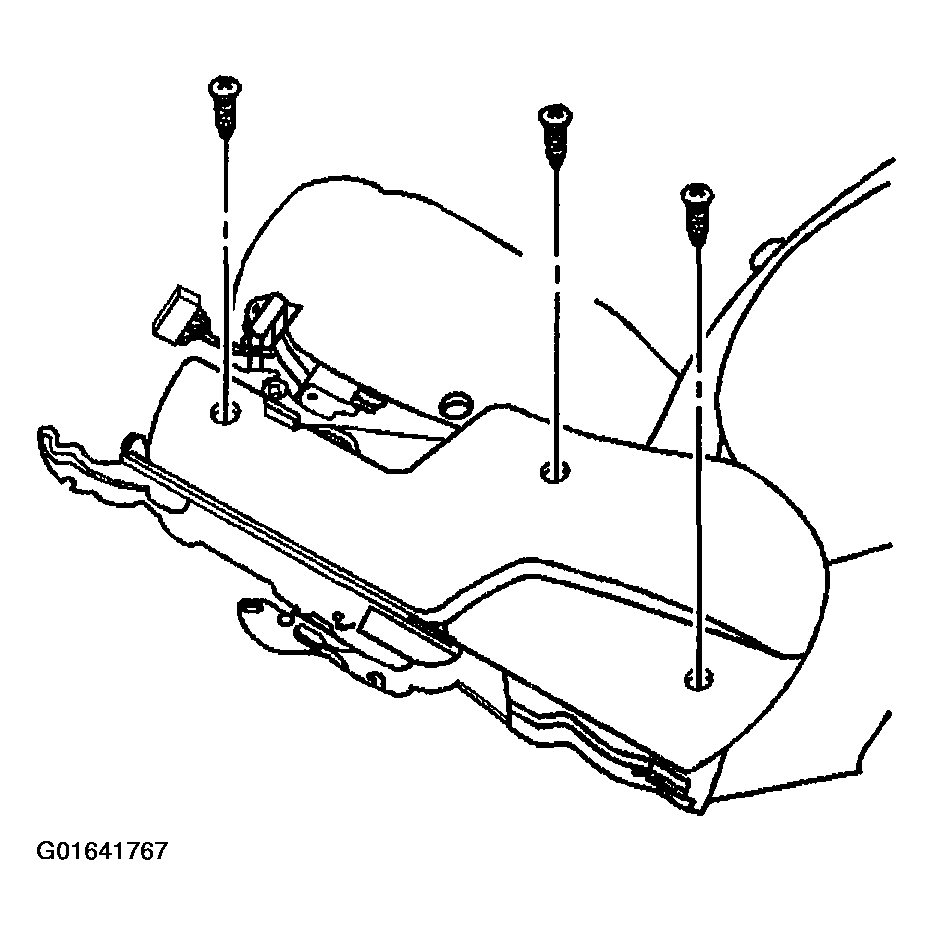

Fig 2: Trim Panel To Manual Seats

Courtesy of GENERAL MOTORS CORP.

Install the trim panel to the manual seat by performing the following steps:
1. 2.1. Install the screws in the trim panel.
2. 2.2. Install the lumbar support knob. Refer to LUMBAR SUPPORT KNOB REPLACEMENT .
3. 2.3. Install the seat back recliner handle. Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT .
