Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion assembly from the vehicle. Refer to SEAT CUSHION REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  .
  2. Remove the rear-seat cushion cover and the pad. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  3. Remove the strap (1) from the rear seat cushion latch (2).

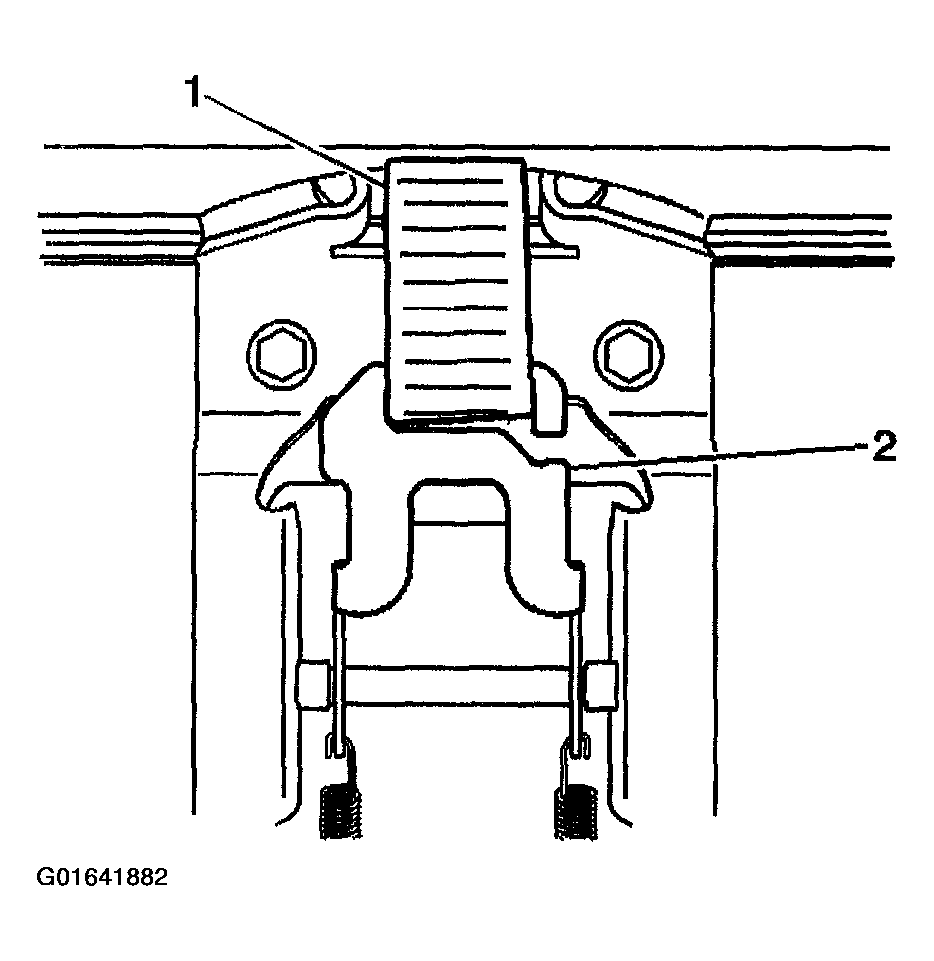

    4. Fig 1: Strap
    G01641882Courtesy of GENERAL MOTORS CORP.
  4. Remove the 3 bolts securing the rear seat cushion latch to the seat pan.

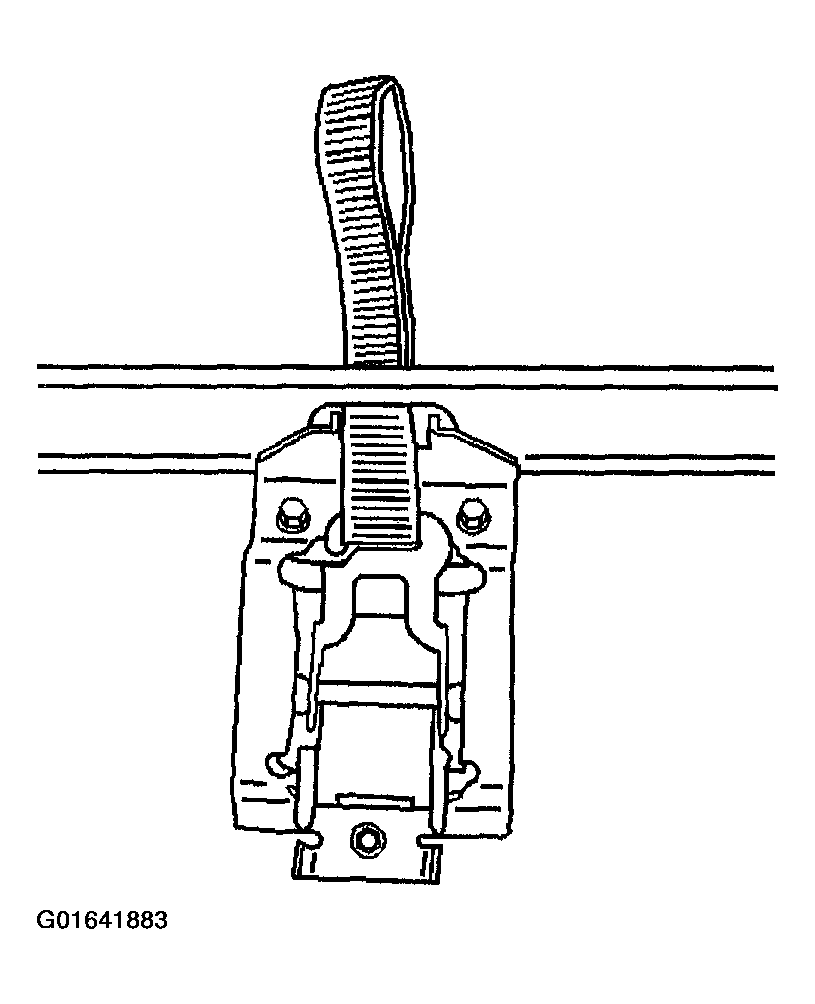

    5. Fig 2: 3 Bolts Rear Seat Cushion Latch To Seat Pan
    G01641883Courtesy of GENERAL MOTORS CORP.
