Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Install the 3 bolts securing the rear seat cushion latch to the seat pan.
Tighten

Tighten the rear seat cushion latch release bolts to 10 N.m (88 lb in).

Fig 1: 3 Bolts Rear Seat Cushion Latch To Seat Pan

Courtesy of GENERAL MOTORS CORP.

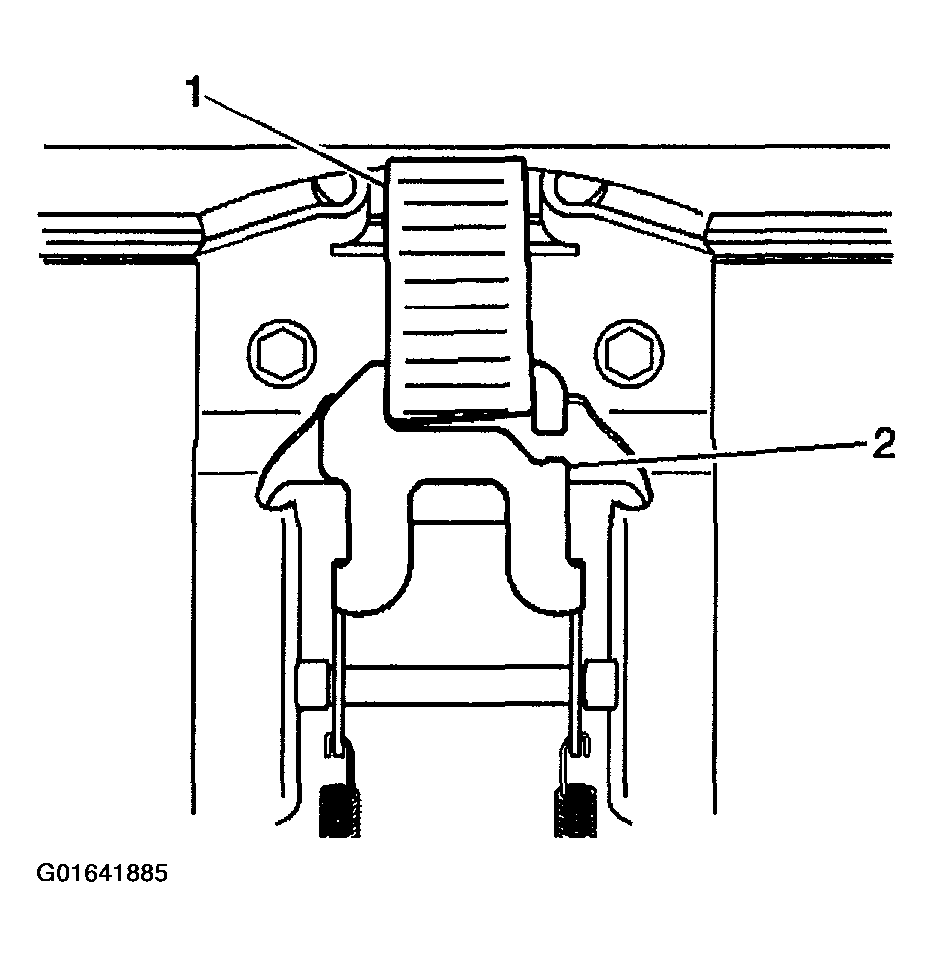

Install the small loop (1) onto the rear seat cushion latch (2).

Fig 2: Small Loop Onto Rear Seat Cushion Latch

Courtesy of GENERAL MOTORS CORP.

Install the strap through the opening in the seat pan.
Install the rear-seat cushion cover and the pad. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
Install the rear seat cushion assembly to the vehicle. Refer to SEAT CUSHION REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) .
