Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 3 seat switch bezel mounting screws.

    Refer to SEAT SWITCH BEZEL REPLACEMENT  .

  2. Remove the 4 nuts that secure the seat pan to the power seat adjuster frame.

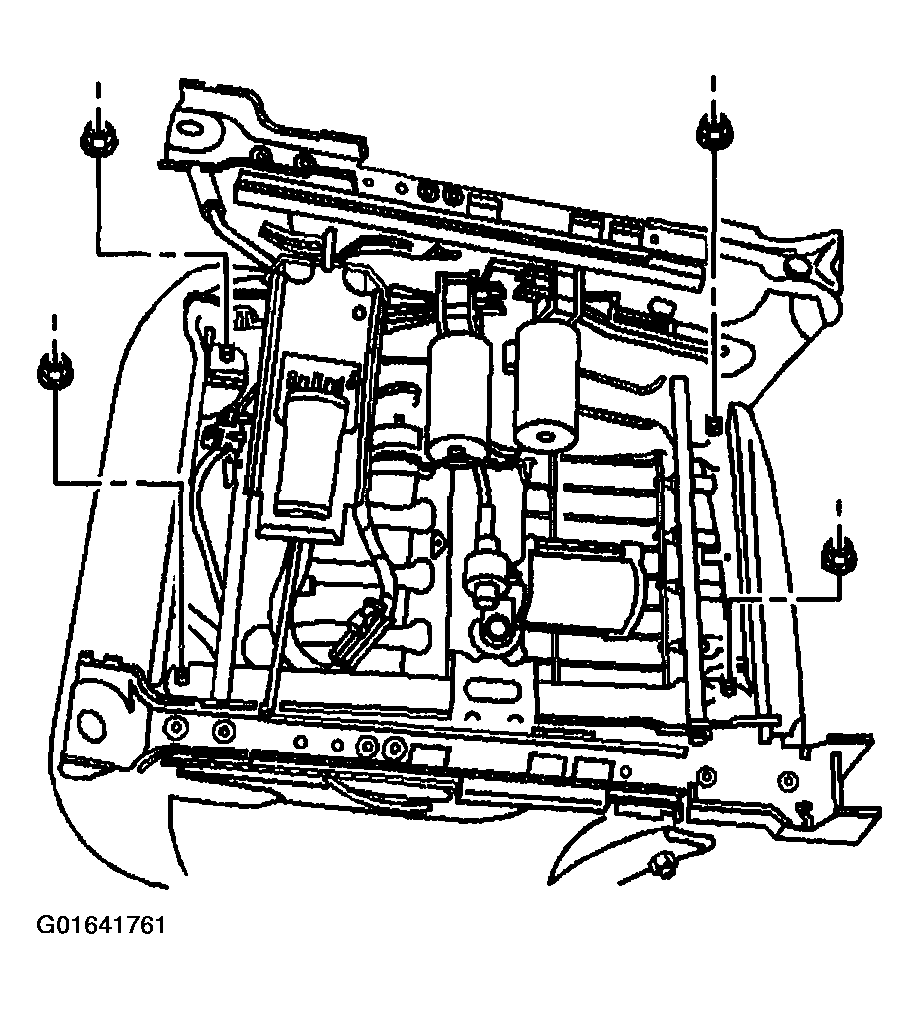

    3. Fig 1: 4 Nuts Seat Pan To Power Seat Adjuster Frame
    G01641761Courtesy of GENERAL MOTORS CORP.
  3. Remove the clip from the front outboard seat pan stud, if equipped. Discard the clip.
  4. Disconnect the black electrical connector (6) from the seat back harness.

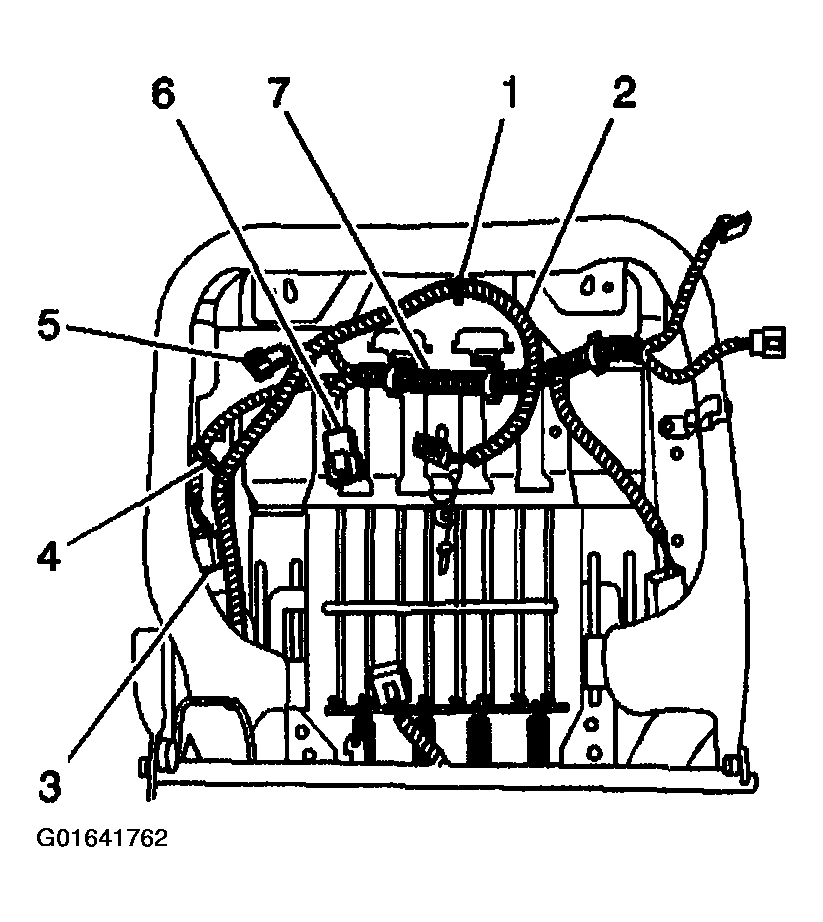

    5. Fig 2: Seat Harness From Seat Pan
    G01641762Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the black electrical connector (3) from the seat belt buckle.
  6. Disconnect the gray lumbar electrical connector (5), if equipped.
  7. Remove the SIR harness (2) from the harness clips (1, 4), and remove the SIR harness from the seat.
  8. Remove the seat harness from the seat pan.
  9. Remove the seat memory module, if equipped.

    Refer to MEMORY SEAT CONTROL MODULE REPLACEMENT  .

  10. Remove the seat cushion assembly.
  11. Remove the seat cushion cover and pad from the seat frame. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - FRONT  .
  12. Remove the wiring harness and connector clips, if you are replacing the frame.
