Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hog rings (1) securing the seat cover to the pad.

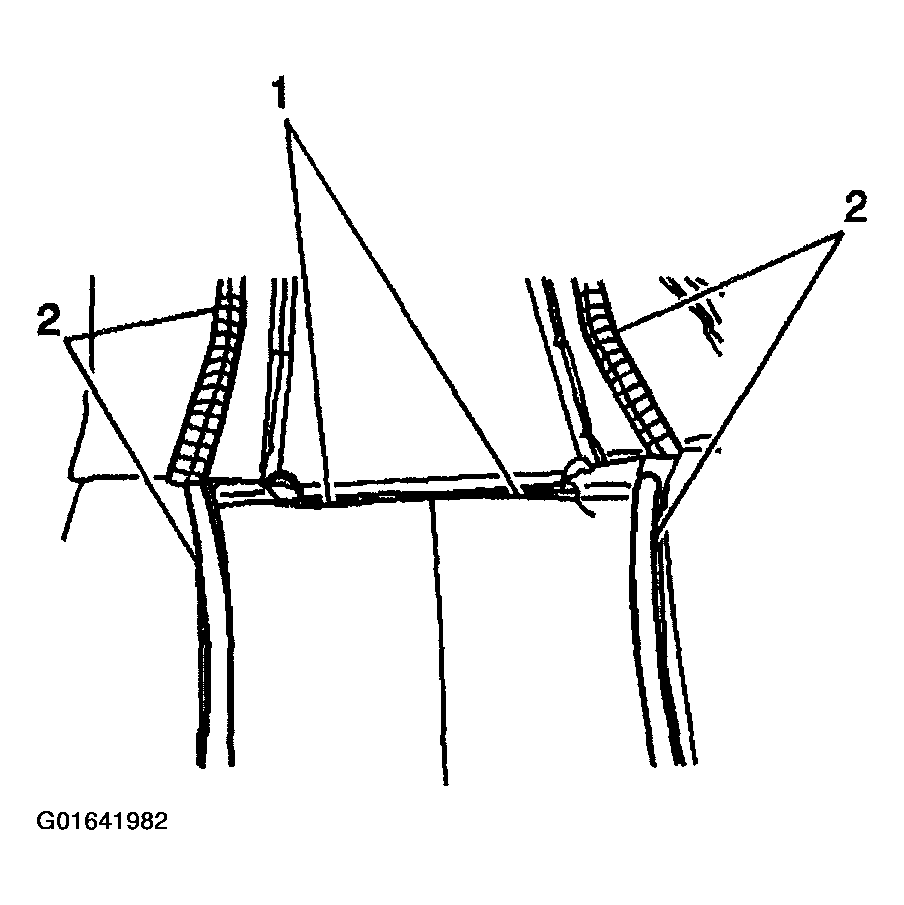

    2. Fig 1: Hog Rings
    G01641982Courtesy of GENERAL MOTORS CORP.
  2. Pull the cover over the pad pressing the hook and loop fastener strips (2) together.
  3. Install the cover flaps to the pad with hog rings (1).

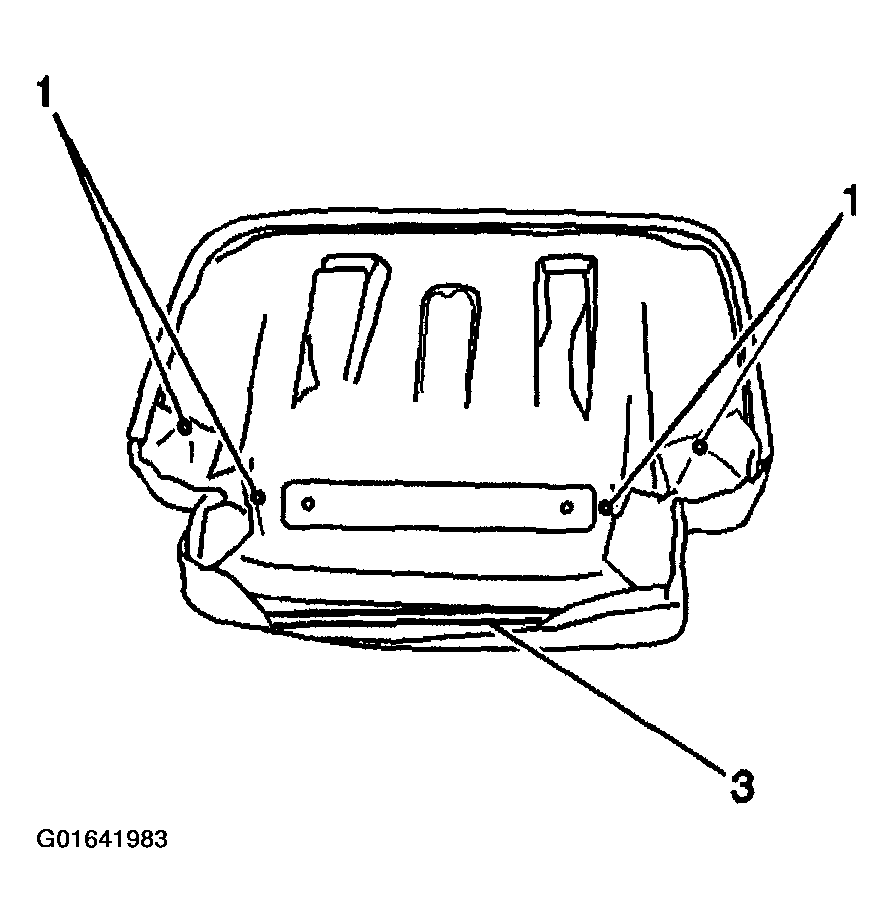

    4. Fig 2: Cover Flaps To Pad With Hog Rings
    G01641983Courtesy of GENERAL MOTORS CORP.
  4. Install the seat cushion panel on the pad and cover.
  5. Install the J-strips (2) securing the seat cushion cover to the seat cushion panel.

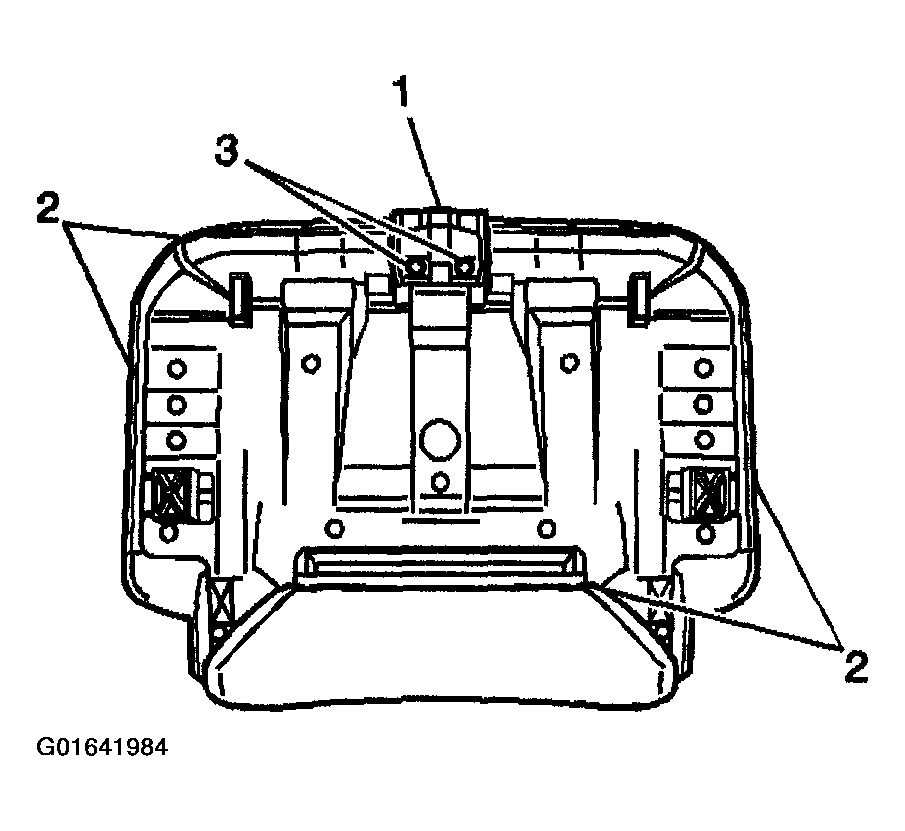

    6. Fig 3: Seat Cushion Panel
    G01641984Courtesy of GENERAL MOTORS CORP.
  6. Install the pull handle assembly (1). Refer to PULL HANDLE ASSEMBLY REPLACEMENT - REAR NO. 2   .
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  7. Install the rear seat cushion assembly (1) to the seat latch rod (3) with two bolts (2).

    Tighten

    Tighten the seat cushion bolts to 11 N.m (97 lb in).

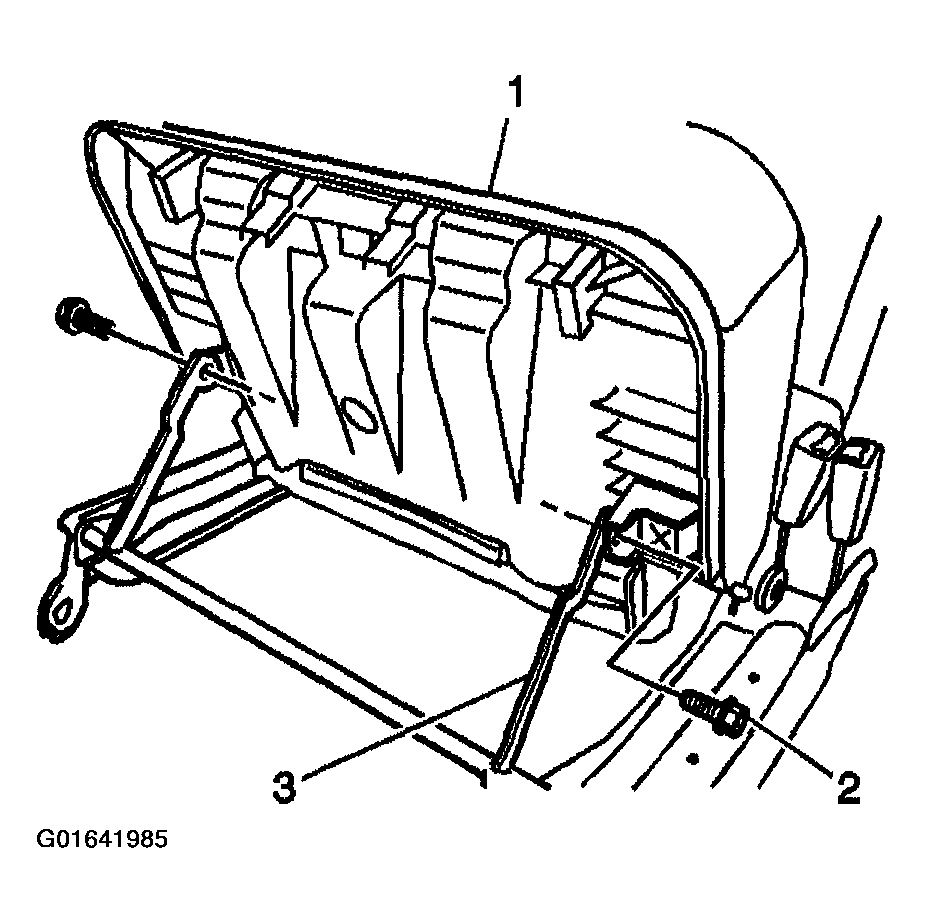

    8. Fig 4: Rear Seat Cushion Assembly
    G01641985Courtesy of GENERAL MOTORS CORP.
