Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the J-strips that retain the cover to the seat pan.
  2. Compress the foam and partially remove the seat cover assembly from the seat pan.
    IMPORTANT: When separating the seat cover retaining strips, do not pull the adhesive-backed strip from the seat pad.
  3. Remove the cover from the cushion by separating the retaining strips.

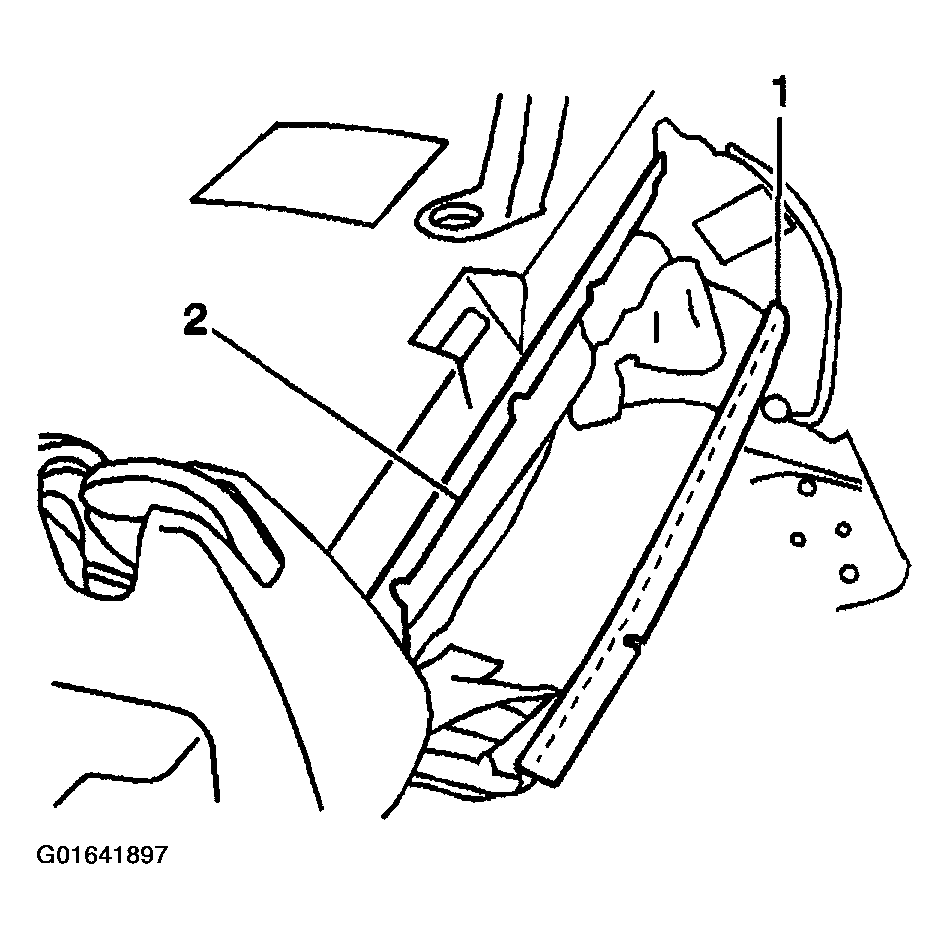

    4. Fig 1: Cover From Cushion By Separating Retaining Strips
    G01641897Courtesy of GENERAL MOTORS CORP.
  4. Separate and remove the cushion and cover assembly from the seat pan.
  5. Release the reinforcement bar from the hog-rings.
  6. Remove the cover from the cushion.
