Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover to the cushion.

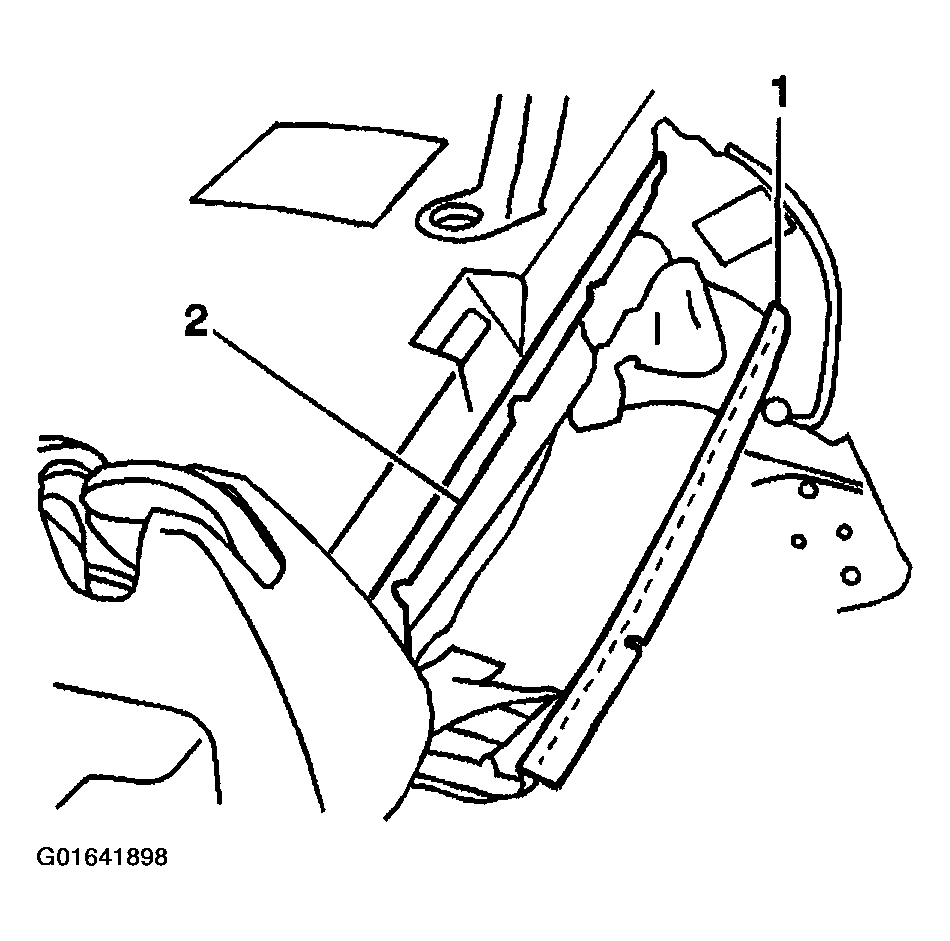

    2. Fig 1: Cover To Cushion
    G01641898Courtesy of GENERAL MOTORS CORP.
  2. Install the reinforcement bar to the hog-rings.
  3. Attach the retaining strips that retain the cover to the cushion.
  4. In order to install the seat cushion to the seat pan, perform the following:
  5. Install the seat pan to the cushion and cover assembly.
  6. Compress the foam and install the seat cover and cushion to the seat pan.
  7. Connect the J-strips that retain the cover to the seat pan.
