Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 3 seat switch bezel screws. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
  2. Remove the 4 nuts that retain the seat pan to the seat adjuster assembly.

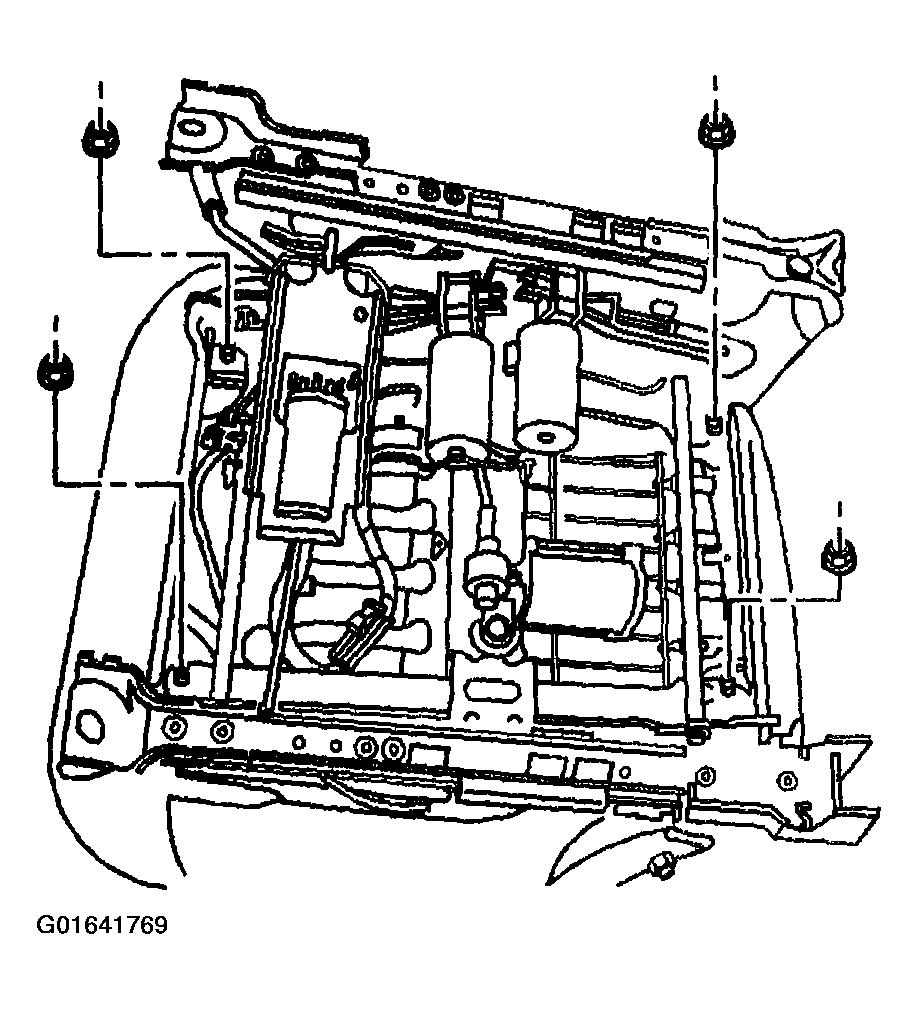

    3. Fig 1: 4 Nuts Of Front seat
    G01641769Courtesy of GENERAL MOTORS CORP.
  3. Remove the clip from the front outboard seat pan stud, if equipped. Discard the clip.
  4. Release the J strips (1,3) on each side of the seat cushion.

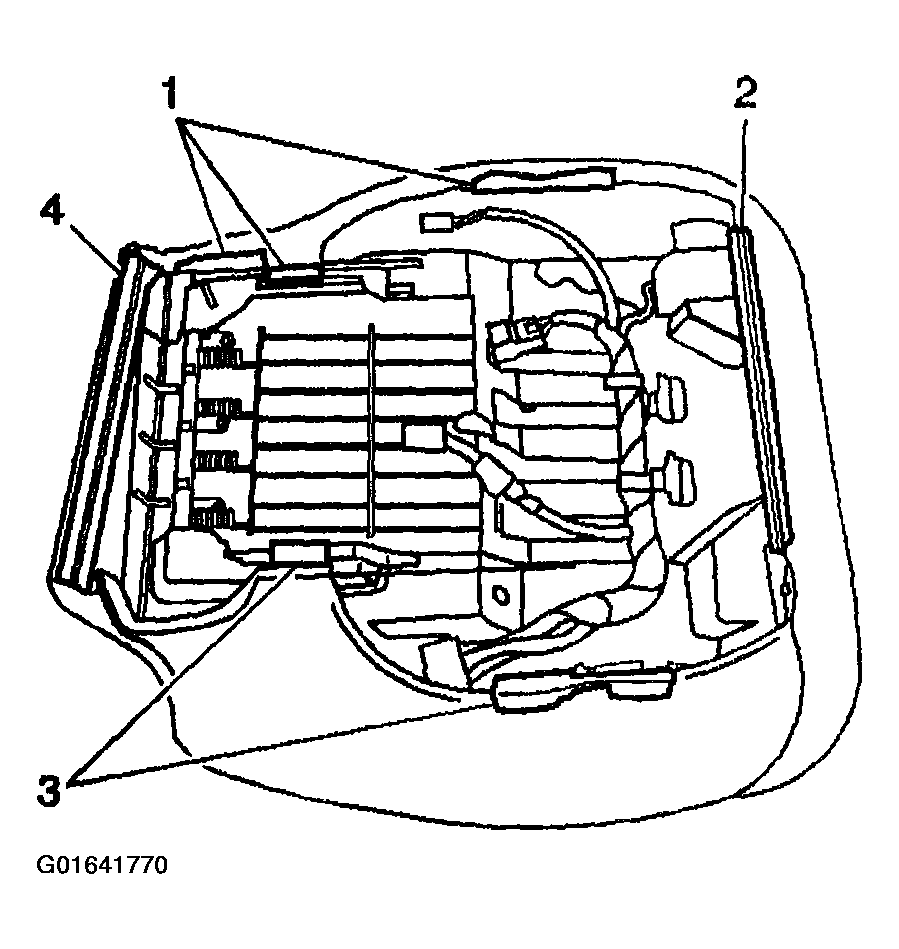

    5. Fig 2: Front/Rear J Strips
    G01641770Courtesy of GENERAL MOTORS CORP.
  5. Release the front/rear J strips (2,4).
  6. Remove the SIR electrical harness (2) from the seat pan.
  7. Remove the seat electrical harness from the seat pan.
  8. Remove the wire harness fasteners from the seat pan.

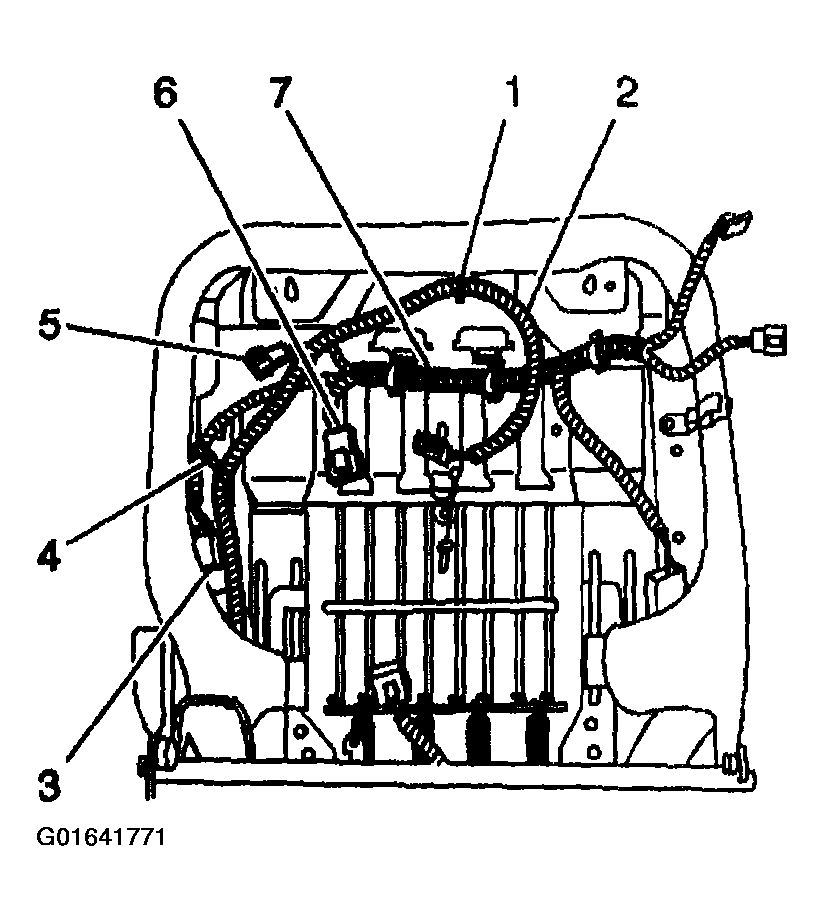

    9. Fig 3: Wire Harness Fasteners From Seat Pan
    G01641771Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the seat cushion heater electrical connector, if equipped.
    IMPORTANT: When separating the seat cover hook and loop retaining strips, do not pull the adhesive-backed strip from the seat pad.
  10. Separate the hook and loop retaining strips.
  11. Remove the hog rings (1) from the bottom rear side of the cover.

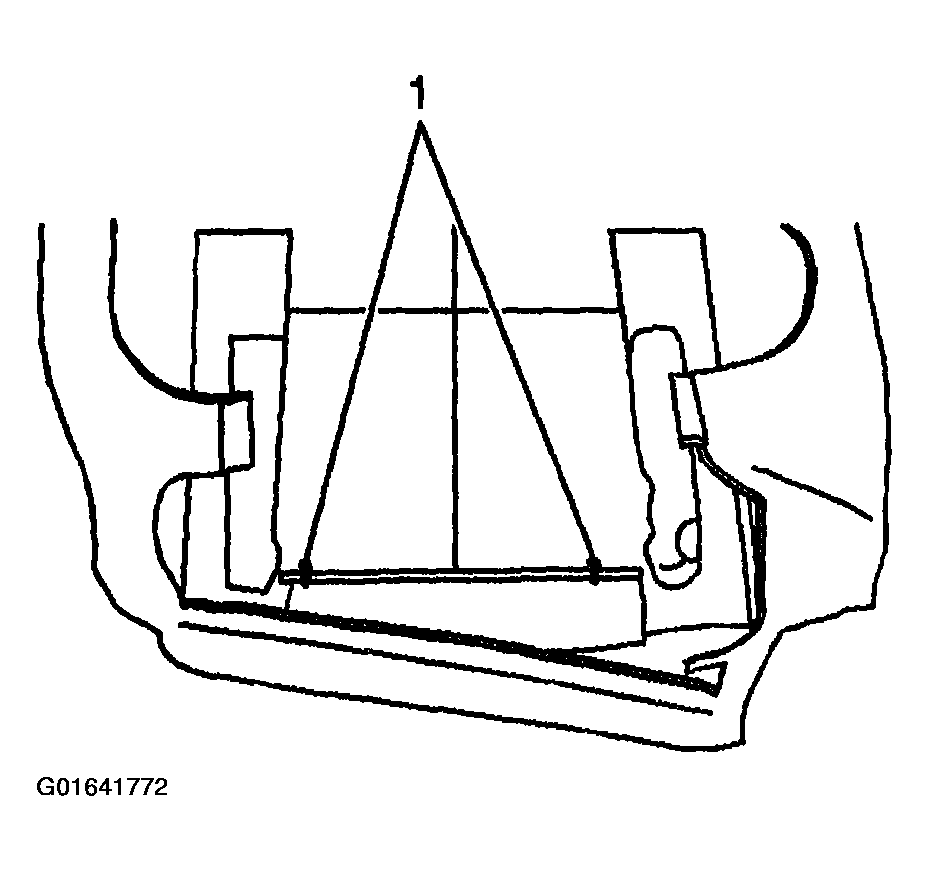

    12. Fig 4: Hog Rings
    G01641772Courtesy of GENERAL MOTORS CORP.
  12. Remove the 11 hog rings from the top side of the cover.
  13. Remove the seat cushion trim cover and pad from the seat frame.
  14. Remove the seat module retaining screw, if equipped.

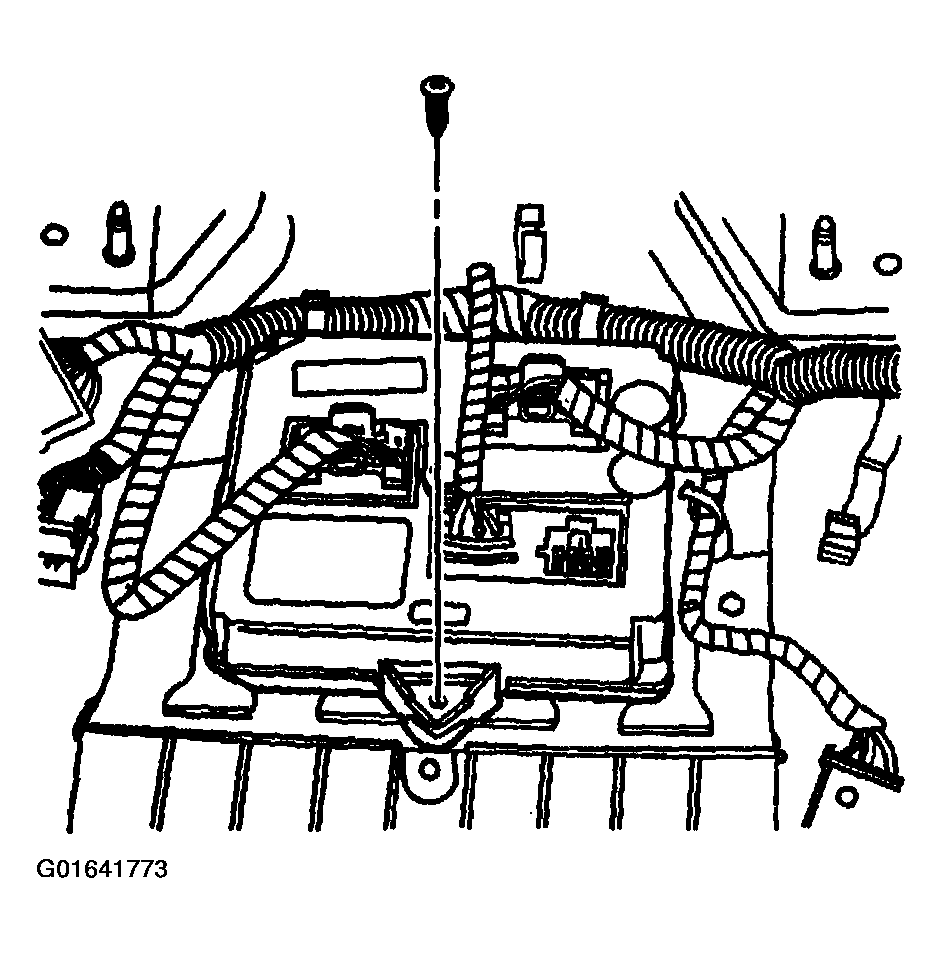

    15. Fig 5: Seat Module Retaining Screw
    G01641773Courtesy of GENERAL MOTORS CORP.
  15. Remove the seat module, if equipped.
  16. Remove the seat cover from the seat cushion.
  17. Remove the seat cushion from the seat pan.
