Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion to the seat pan.
  2. Install the seat cover to the seat cushion.
  3. Using a side to side motion, carefully pull the seat cushion cover onto the seat pan.
  4. Install the seat module, if equipped.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the seat module retaining screw.

    Tighten

    Tighten the screw to 5 N.m (44 lb in).

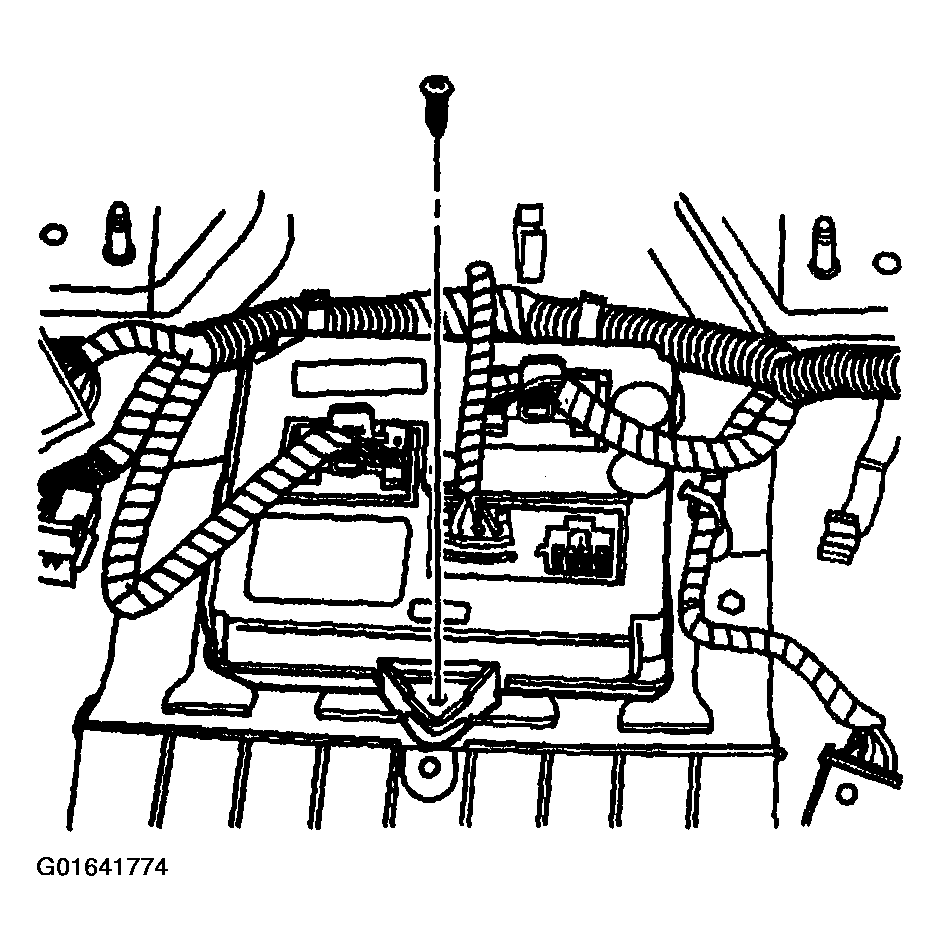

    6. Fig 1: Seat Module Retaining Screw
    G01641774Courtesy of GENERAL MOTORS CORP.
  6. Install the 11 hog rings to the top side of the cover and pad.
  7. Install the 2 hog rings (1) to the bottom rear side of the cover and pad.

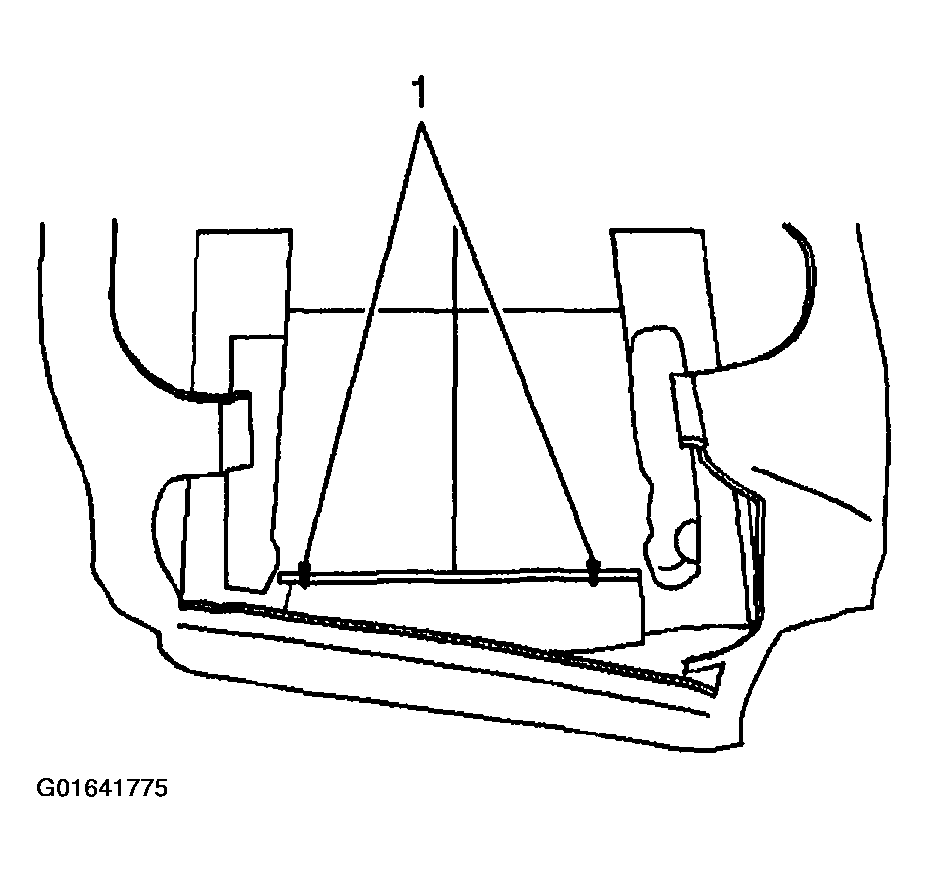

    8. Fig 2: 2 Hog Rings
    G01641775Courtesy of GENERAL MOTORS CORP.
  8. Press the seat cover hook and loop retaining strips together by running your hand firmly over the seat cover.
  9. Connect the seat cushion heater electrical connector.
  10. Install the seat electrical harness to the seat pan.

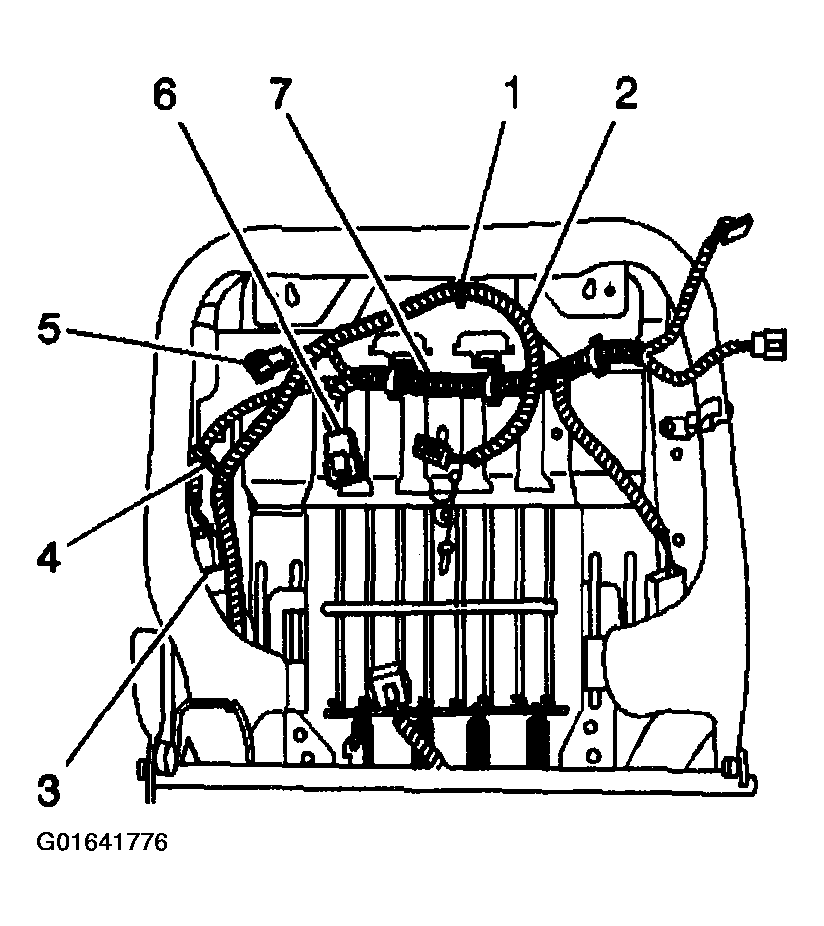

    11. Fig 3: Seat Electrical Harness To Seat Pan
    G01641776Courtesy of GENERAL MOTORS CORP.
  11. Install the SIR electrical harness (2) to the seat pan.
  12. Install the front/rear J strips (2,4).

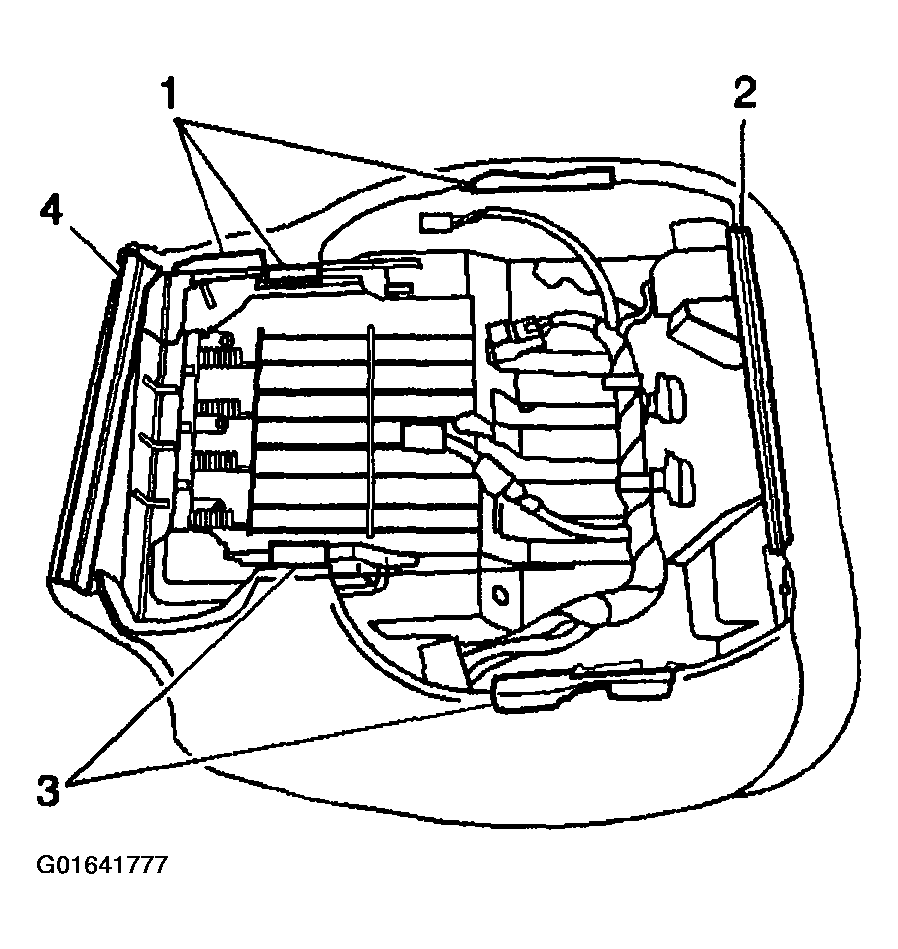

    13. Fig 4: Front/Rear J Strips
    G01641777Courtesy of GENERAL MOTORS CORP.
  13. Install the side J strips (1,3).
  14. Install the seat pan to the seat adjuster frame.
  15. Install the 4 retaining nuts to the studs on the underside of the cushion.

    Tighten

    Tighten the nuts to 25 N.m (18 lb ft).

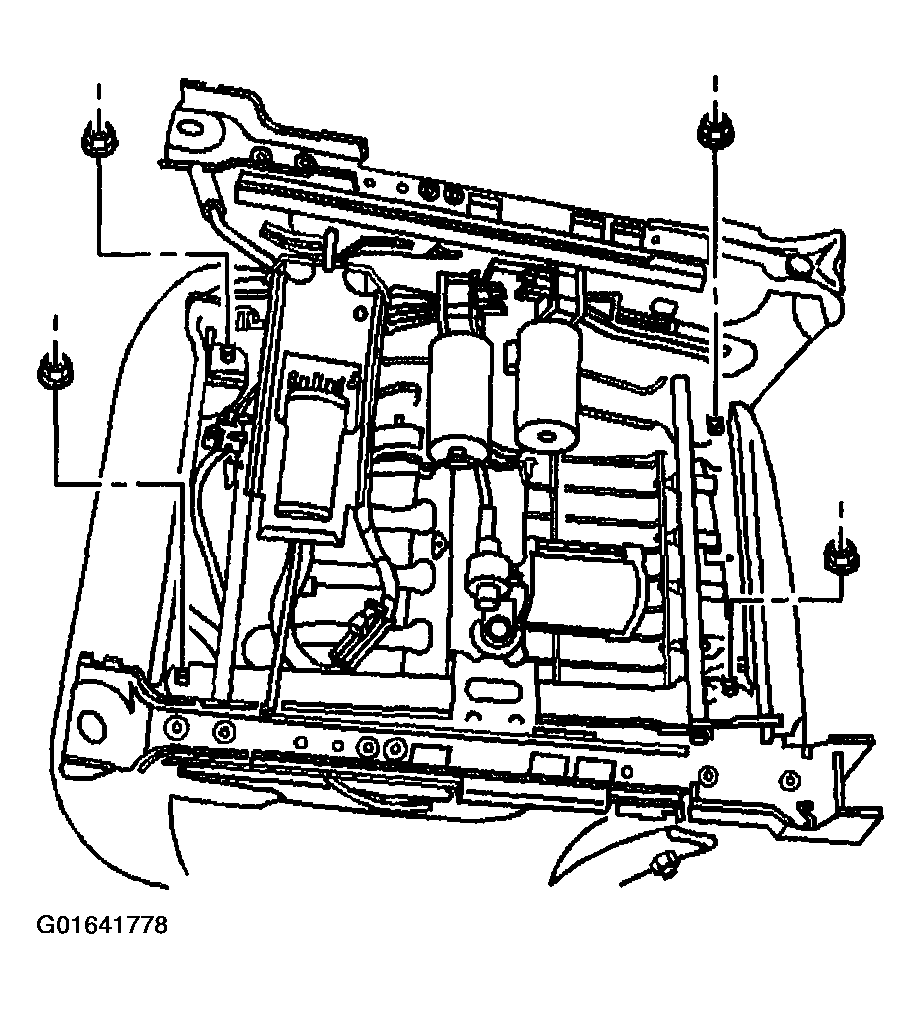

    16. Fig 5: 4 Retaining Nuts
    G01641778Courtesy of GENERAL MOTORS CORP.
  16. Install the 3 seat switch bezel screws. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
