Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion assembly from the vehicle. Refer to SEAT CUSHION REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  .
  2. Remove the 2 bolts securing the bracket assembly to the seat cushion.

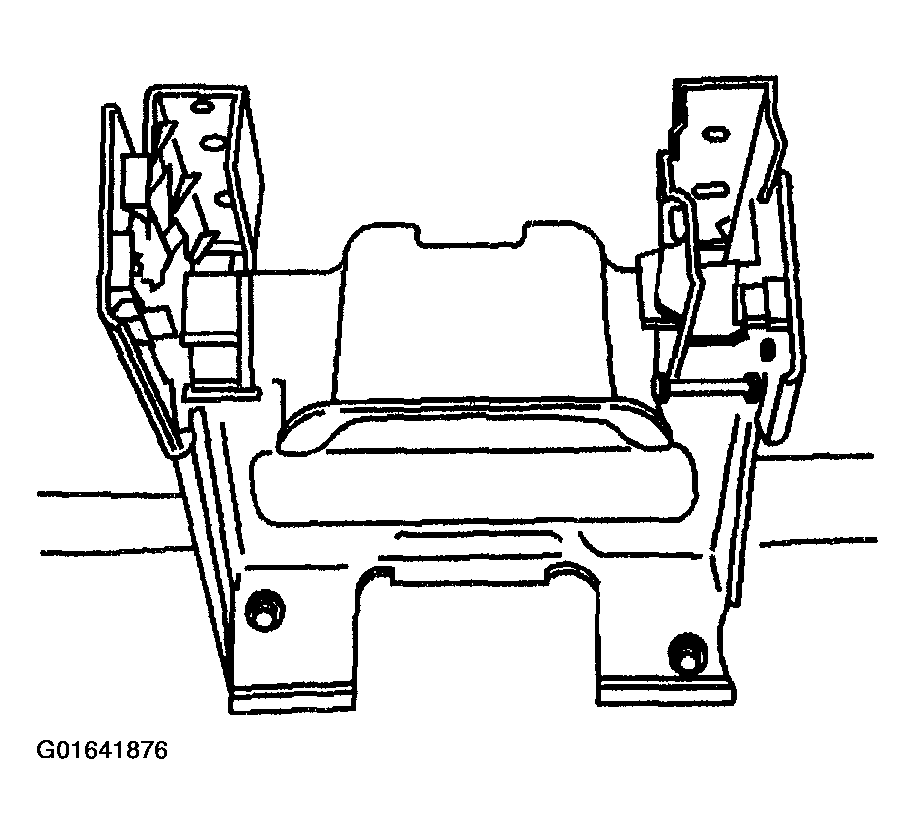

    3. Fig 1: 2 Bolts Securing Bracket Assembly To Seat Cushion
    G01641876Courtesy of GENERAL MOTORS CORP.
  3. Remove the bracket assembly from the seat cushion.

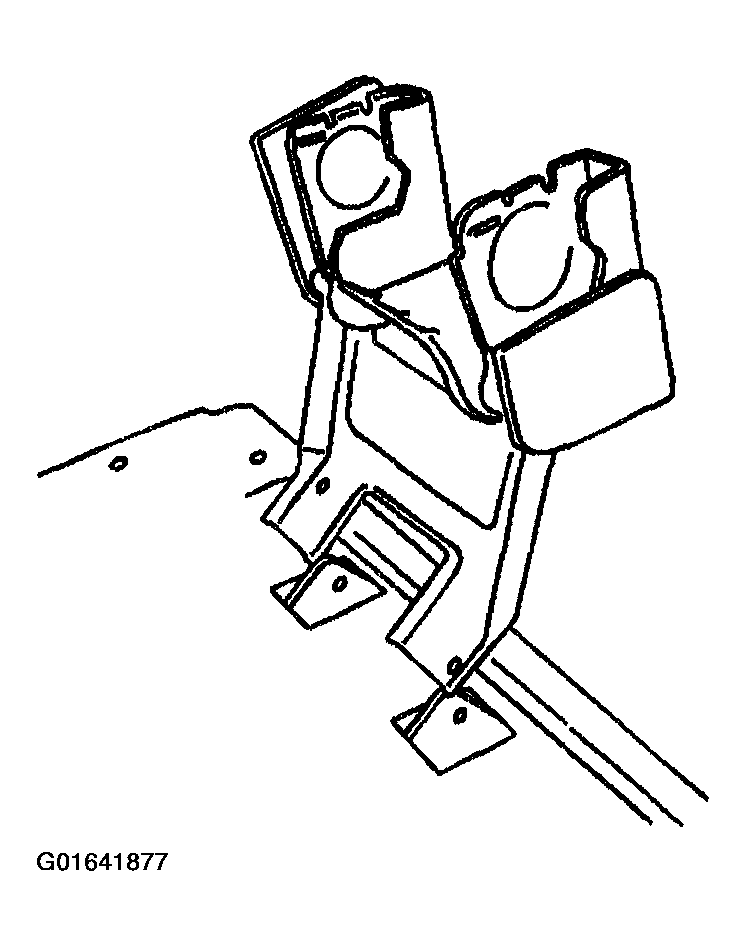

    4. Fig 2: Bracket Assembly From Seat Cushion
    G01641877Courtesy of GENERAL MOTORS CORP.
