Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT, ENVOY XL) .
Remove the rear seat bracket trim covers (1).

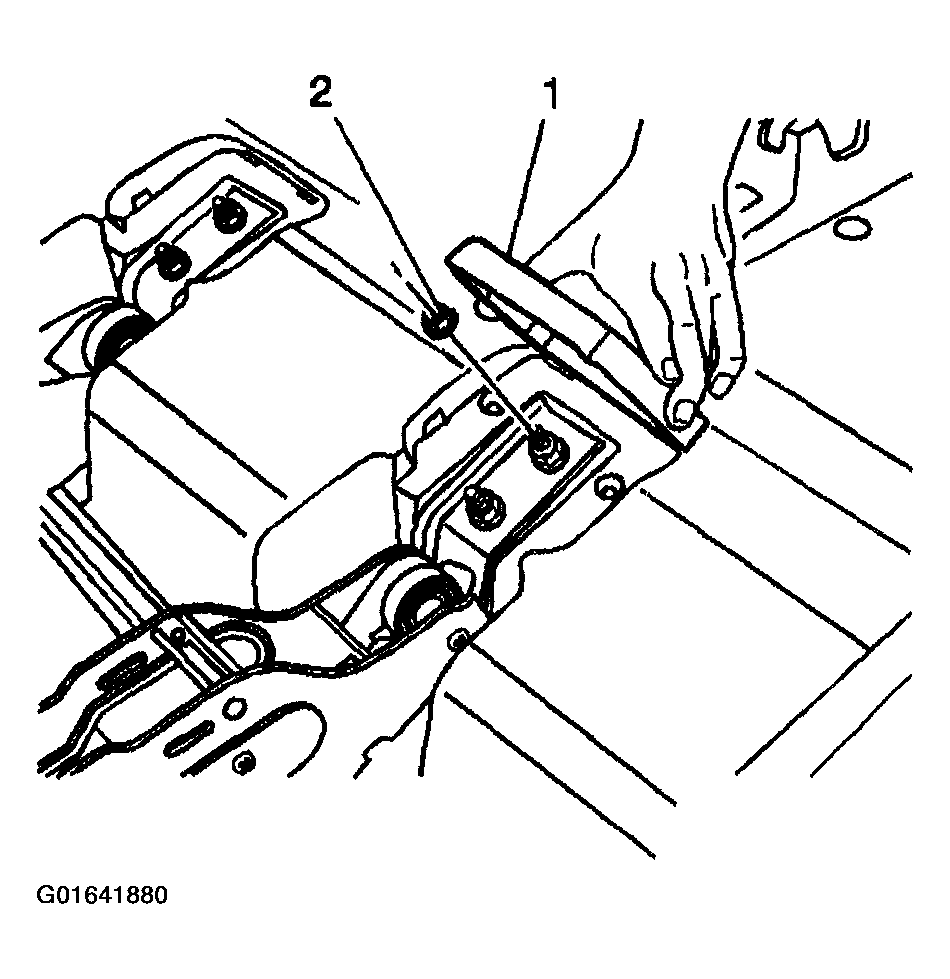

Fig 1: Rear Seat Bracket Trim Covers

Courtesy of GENERAL MOTORS CORP.

Remove the rear seat cushion bracket mounting nuts (2).
Remove the rear seat cushion bracket.
