Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat assembly from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat cushion trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT  .
  3. Remove the seat belt anchor nut.

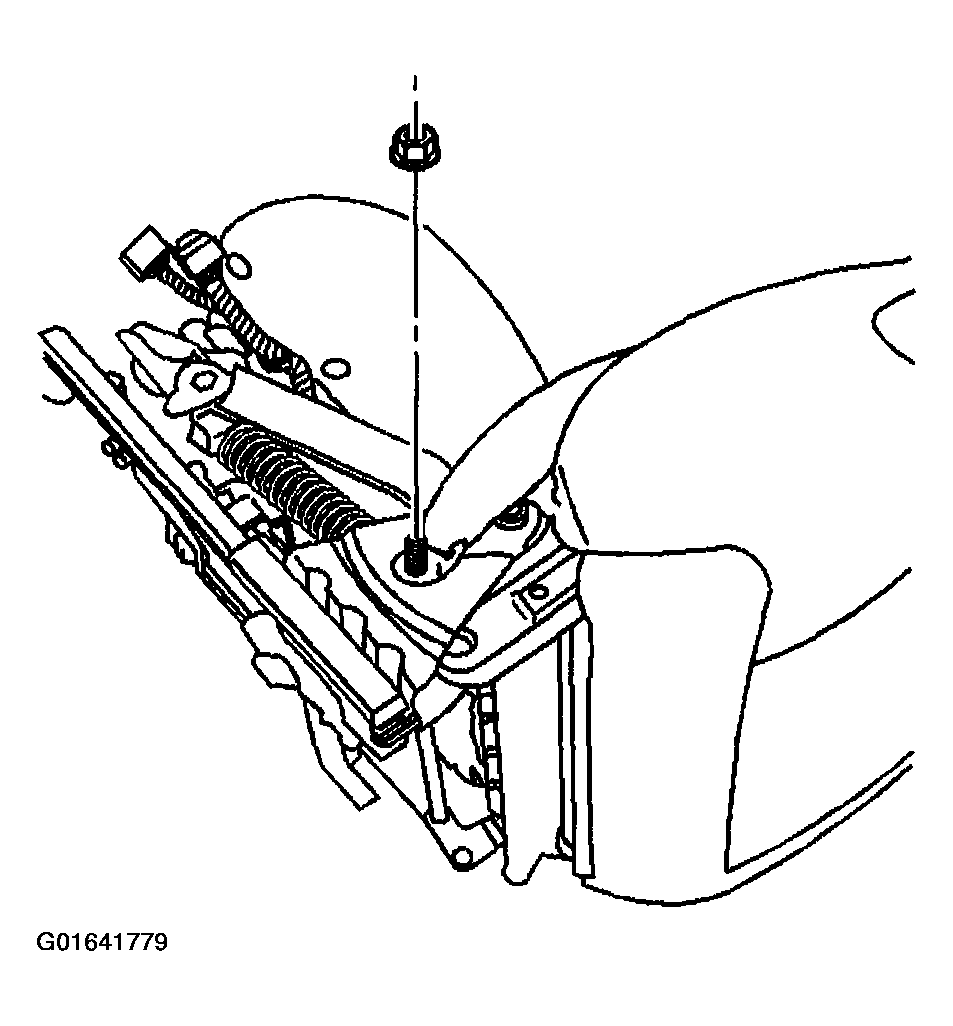

    4. Fig 1: Seat Belt Anchor Nut
    G01641779Courtesy of GENERAL MOTORS CORP.
  4. Release the J-strips (1,4) across the bottom of the seat back cover.

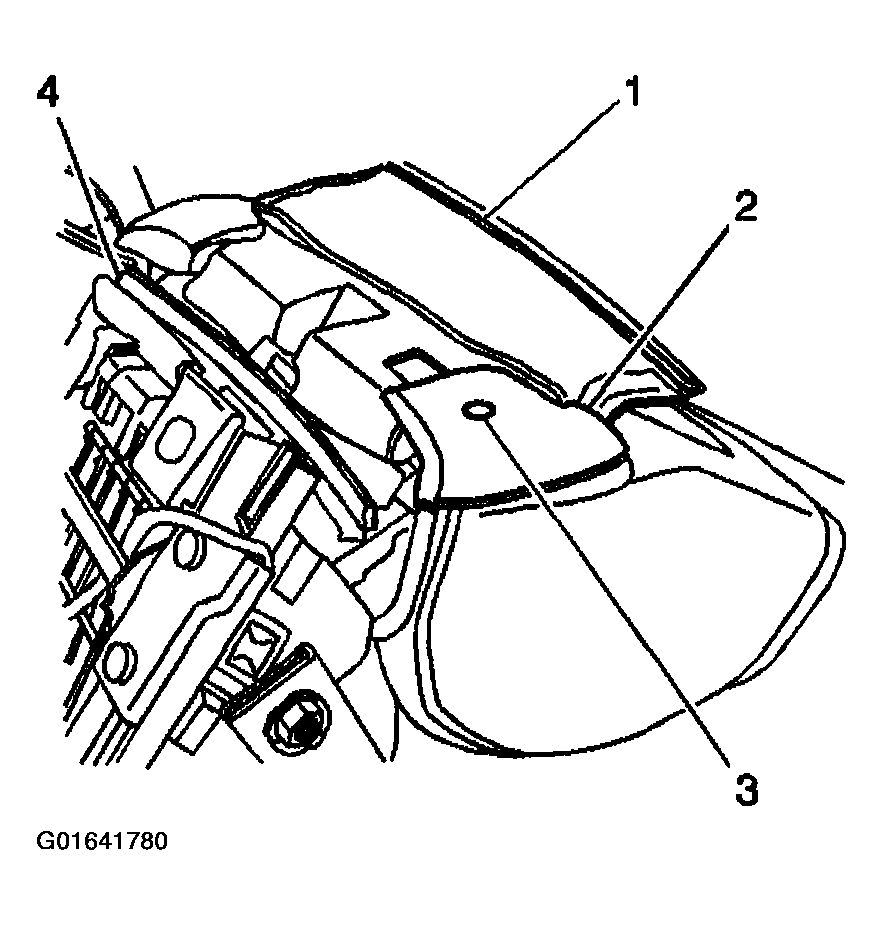

    Fig 2: J-Strips
    G01641780Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When separating the hook and loop retaining strips on the seat cover, do not pull the adhesive-backed band from the seat pad.
  5. Remove the pushpins (3) securing the seat cover (2) to the seat frame.
  6. Carefully , and lift the seat cover in order to expose the lower half of the seat back pad.

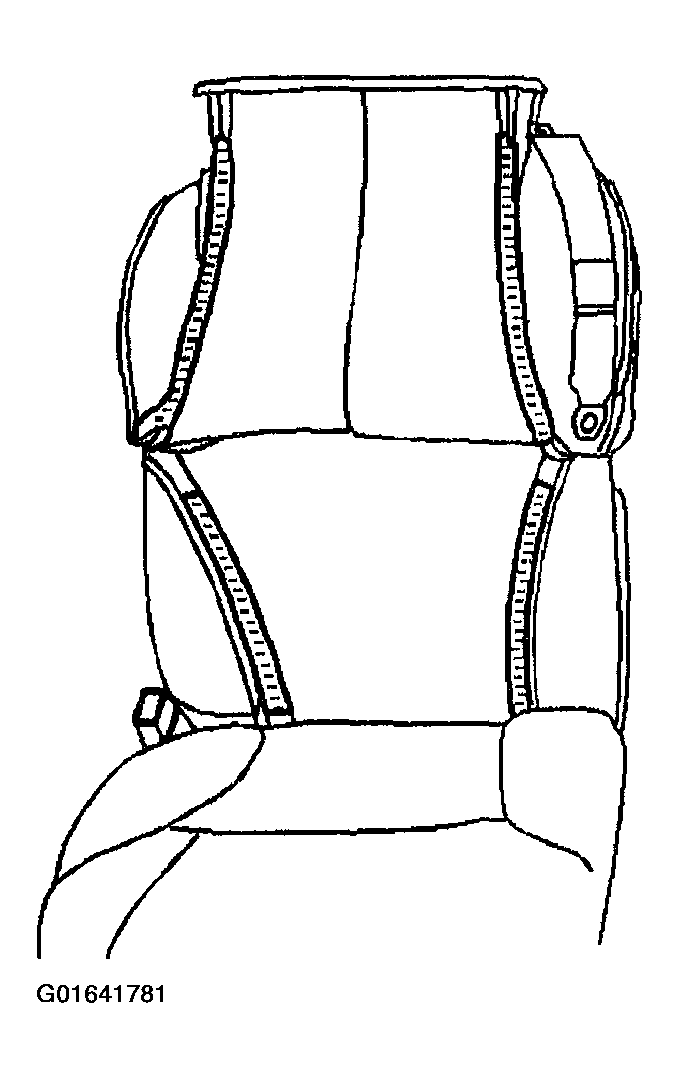

    7. Fig 3: Hook And Loop Retaining Strips
    G01641781Courtesy of GENERAL MOTORS CORP.
  7. Remove the seat back pivot bolt.

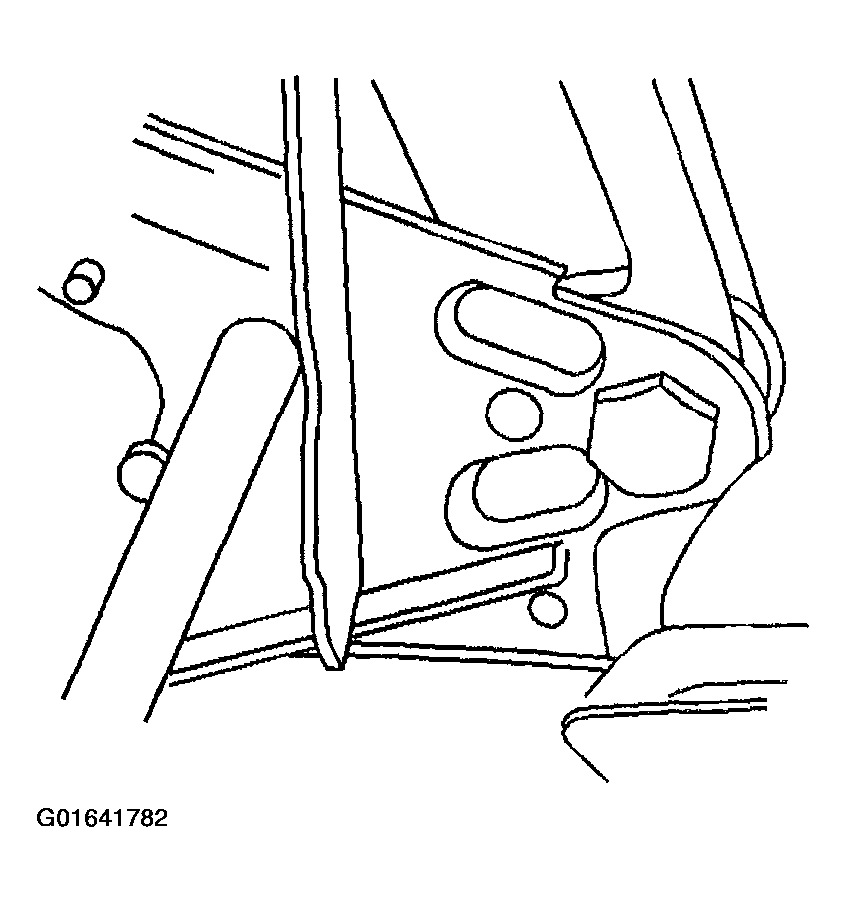

    8. Fig 4: Seat Back Pivot Bolt
    G01641782Courtesy of GENERAL MOTORS CORP.
  8. Remove the 2 bolts from the seat back recliner arm.

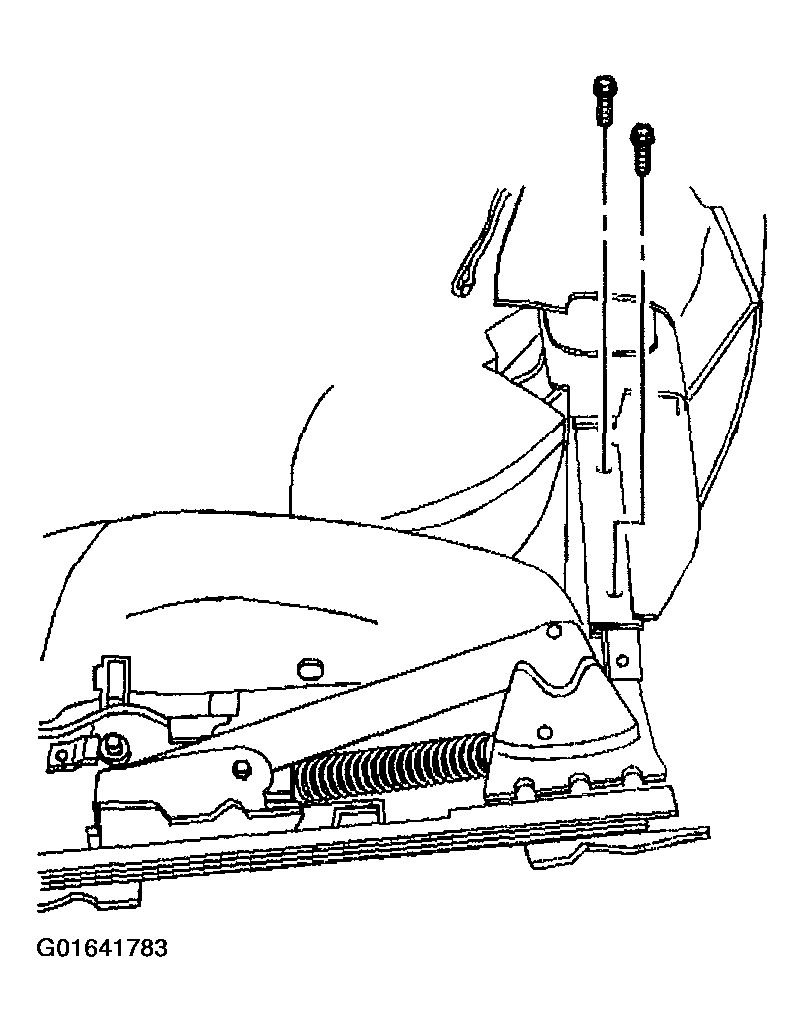

    9. Fig 5: 2 Bolts From Seat Back Recliner Arm
    G01641783Courtesy of GENERAL MOTORS CORP.
  9. Remove the seat back assembly from the seat adjuster.
