Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  2. Remove the release latch by pinching the lower locking tabs together.
    3. Fig 1: Release Latch
    G01641934Courtesy of GENERAL MOTORS CORP.
  3. Remove the release cable from the release latch.

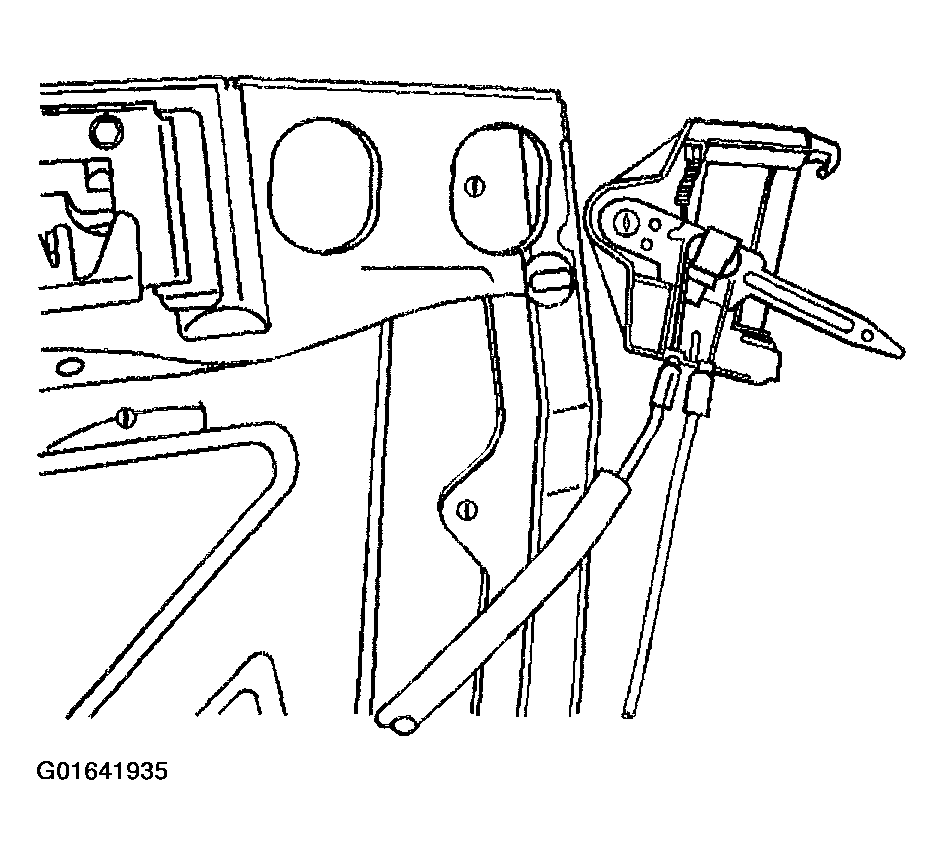

    4. Fig 2: Release Cable From Release Latch
    G01641935Courtesy of GENERAL MOTORS CORP.
