Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the release cable to the release latch.

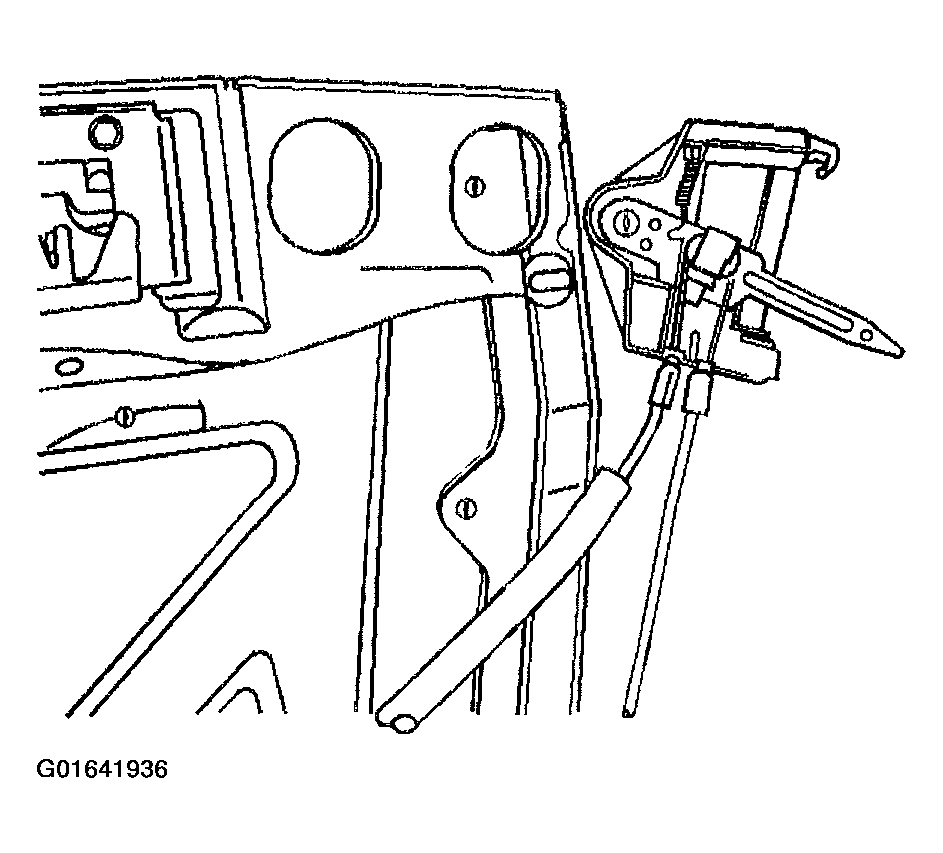

Fig 1: Release Cable To Release Latch

Courtesy of GENERAL MOTORS CORP.

Install the release latch to the seat frame by pressing the latch into the seat frame until the locking tabs are fully engaged.

Fig 2: Release Latch

Courtesy of GENERAL MOTORS CORP.

Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
