Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the screw securing the recliner handle.
  3. Remove the recliner handle.

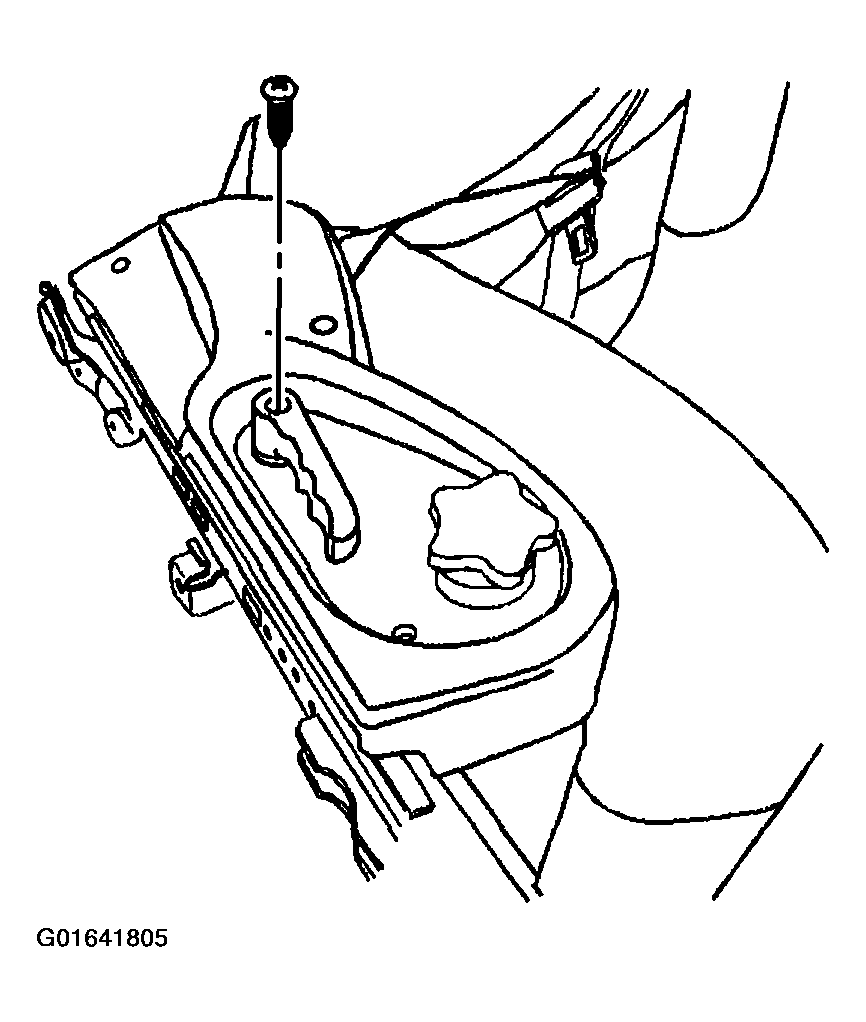

    4. Fig 1: Screw Recliner Handle
    G01641805Courtesy of GENERAL MOTORS CORP.
