Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat assembly from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  3. Remove the lumbar cables from the panel clips.

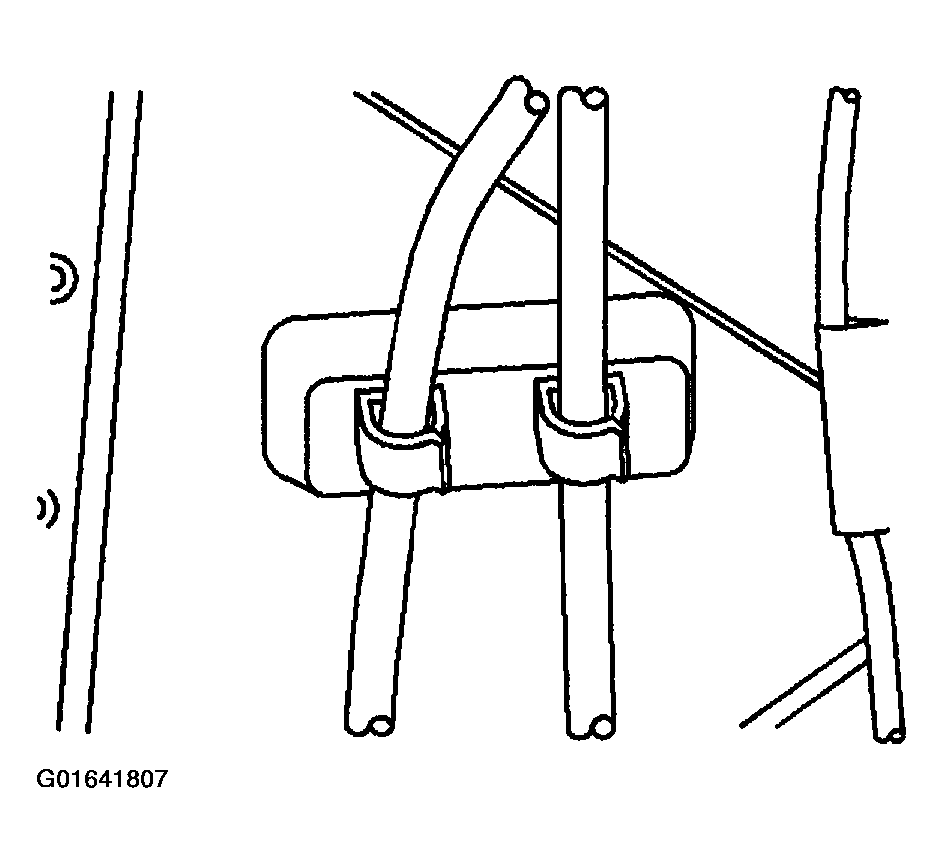

    4. Fig 1: Front Bucket Seat Assembly From Vehicle
    G01641807Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 push-pin fasteners (1) from each side of the panel.
    5. Fig 2: 2 Push-Pin Fasteners
    G01641808Courtesy of GENERAL MOTORS CORP.
  5. Remove the push-pin fastener (1) from the bottom of the panel.
    6. Fig 3: Push-Pin Fastener
    G01641809Courtesy of GENERAL MOTORS CORP.
  6. Remove the panel from the top of the seat-back frame.
  7. Remove the seat-back frame.

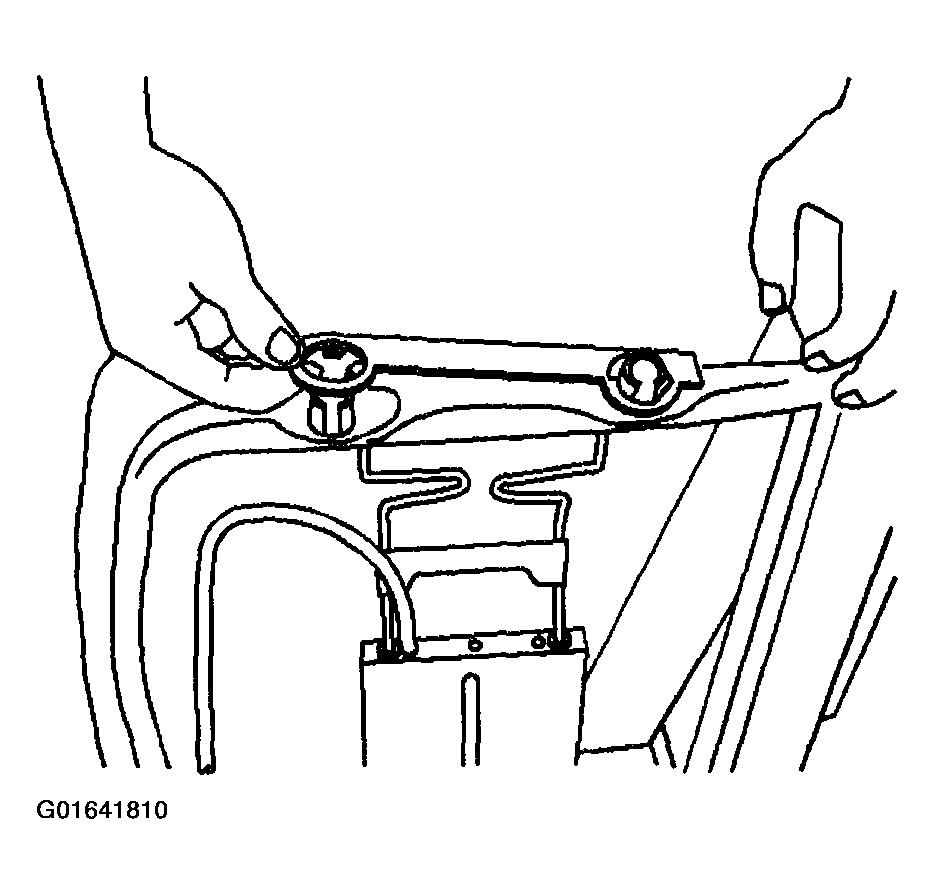

    8. Fig 4: Seat-Back Frame
    G01641810Courtesy of GENERAL MOTORS CORP.
