Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat back over the top of the seat-back frame.

Fig 1: Seat Back Over Top Of Seat-Back Frame

Courtesy of GENERAL MOTORS CORP.

Install the panel to the seat-back frame with 2 push-pin fasteners (1) to each side of the panel.

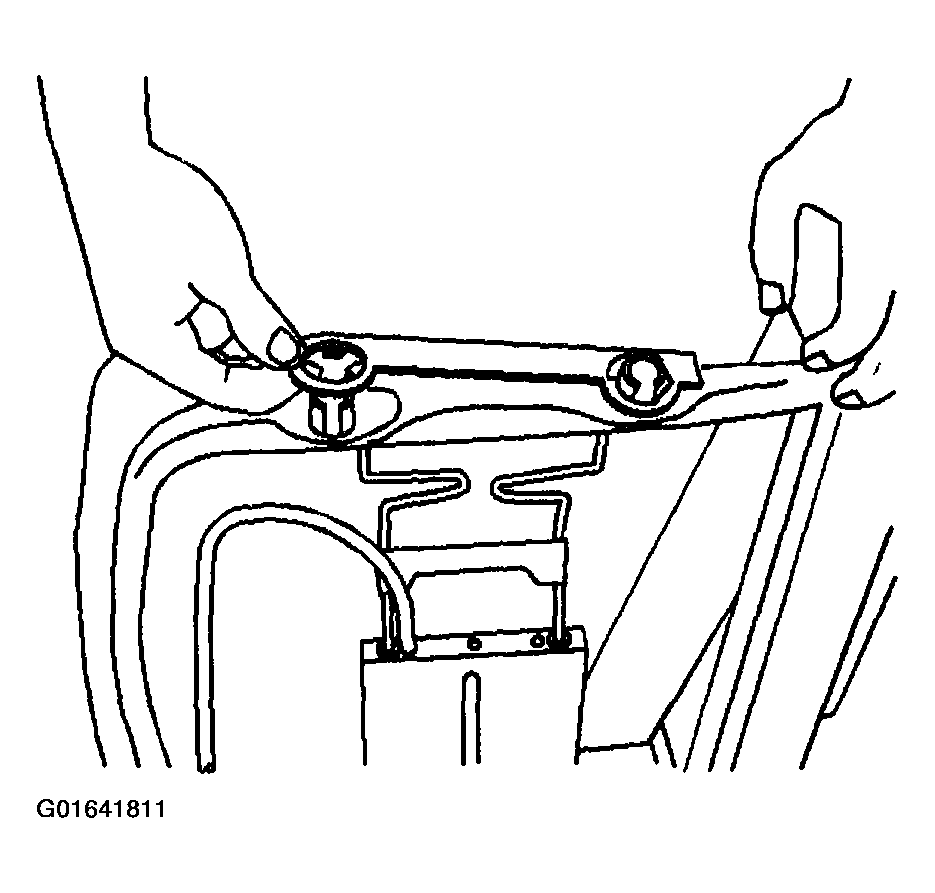

Fig 2: Panel To Seat-Back Frame With 2 Push-Pin Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the push-pin fastener (1) to the bottom of the panel.

Fig 3: push-pin fastener

Courtesy of GENERAL MOTORS CORP.

Install the lumbar cables to the panel clips.

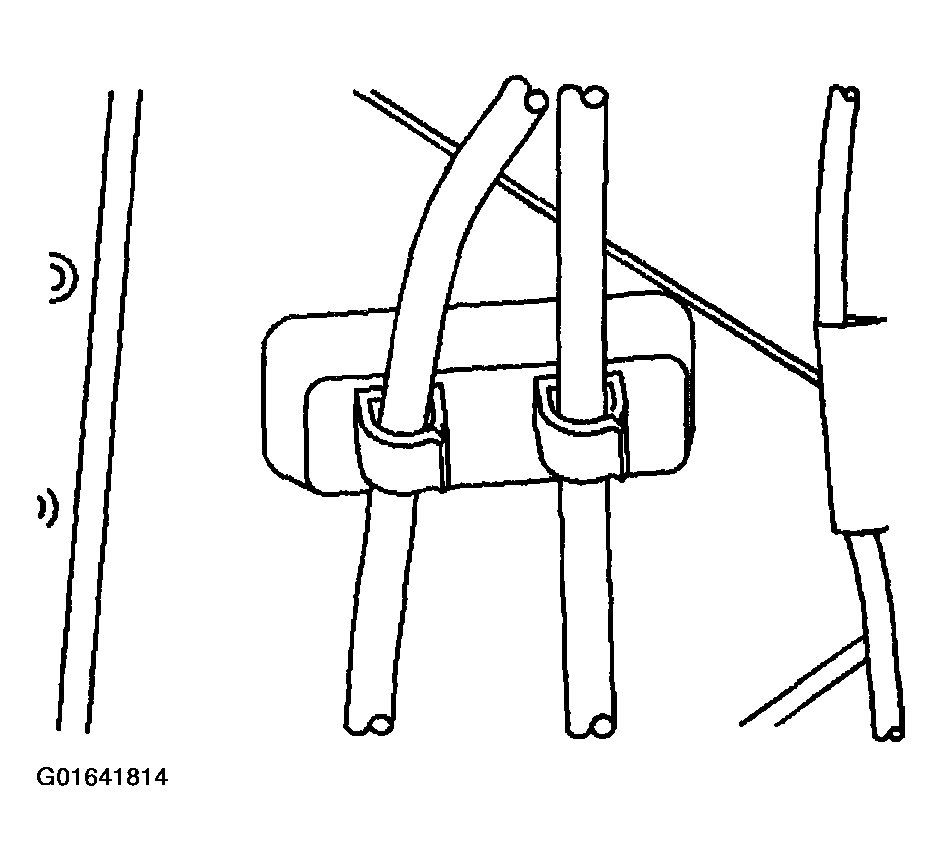

Fig 4: Lumbar Cables To Panel Clips

Courtesy of GENERAL MOTORS CORP.

Install the front seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT .
Install the front bucket seat assembly to the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET .
