Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back from the vehicle. Refer to SEAT BACK REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK REPLACEMENT - REAR NO. 1 (TRAILBLAZER, EXT & ENVOY XL)  .
  2. Remove the bolts (2) that retain the latch bracket to the seat hinge.

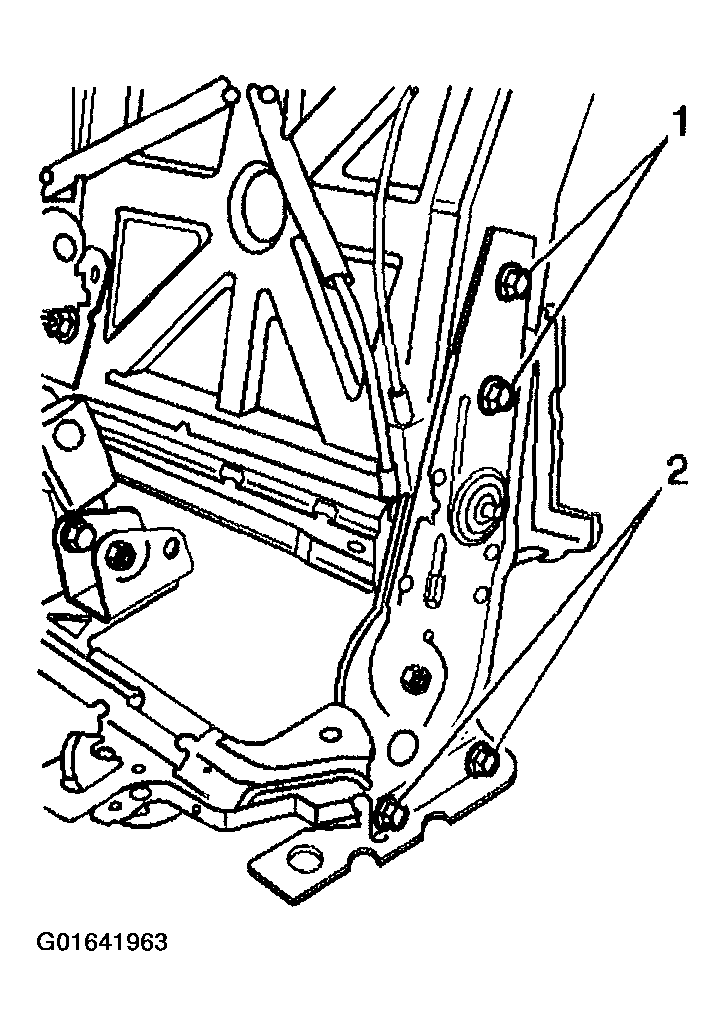

    3. Fig 1: Bolts Latch Bracket To Seat Hinge
    G01641963Courtesy of GENERAL MOTORS CORP.
  3. Remove the latch bracket from the seat hinge.
