Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the seat cushion mounting bolts (1) securing the rear seat cushion frame to the inboard/outboard rear seat back hinge assembly.

    Tighten

    Tighten all rear seat cushion mounting bolts to 25 N.m (18 lb ft).

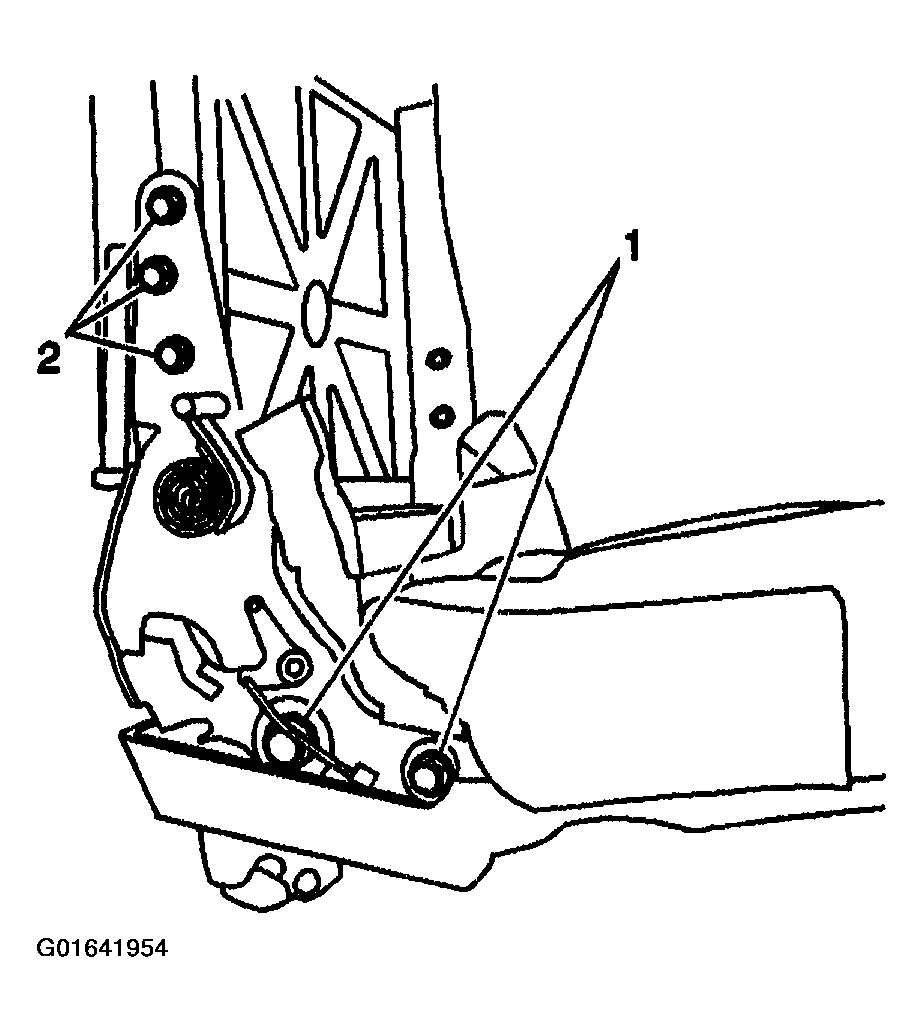

    2. Fig 1: Seat Cushion Mounting Bolts
    G01641954Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back mounting bolts (2) securing the rear seat back frame to the inboard/outboard rear seat back hinge assembly.

    Tighten

    Tighten all rear seat back mounting bolts to 25 N.m (18 lb ft).

  3. Install the seat belt side buckle (1) to the seat with the seat belt anchor nut (2), if replacing the right-hand seat inboard hinge.

    Tighten

    Tighten the seat belt side buckle nut to 55 N.m (40 lb ft).

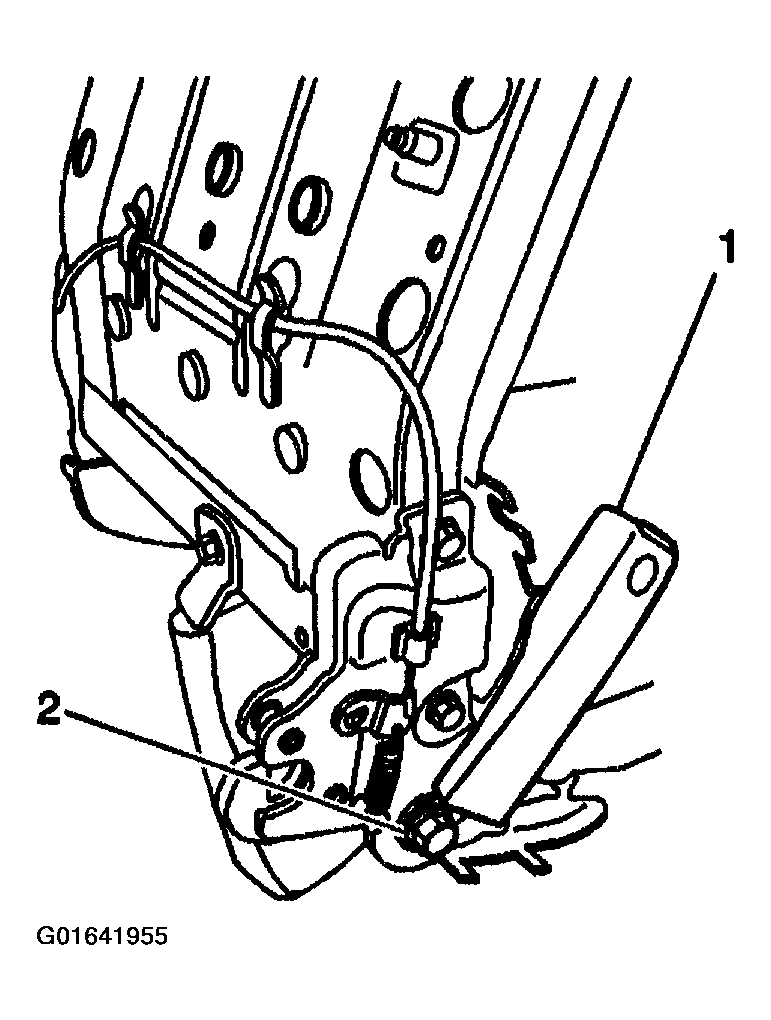

    4. Fig 2: Seat Belt Side Buckle
    G01641955Courtesy of GENERAL MOTORS CORP.
  4. Install the rear center seat belt anchor nut (2), if replacing the left-hand seat inboard hinge.

    Tighten

    Tighten all rear center seat belt anchor nut to 60 N.m (44 lb ft).

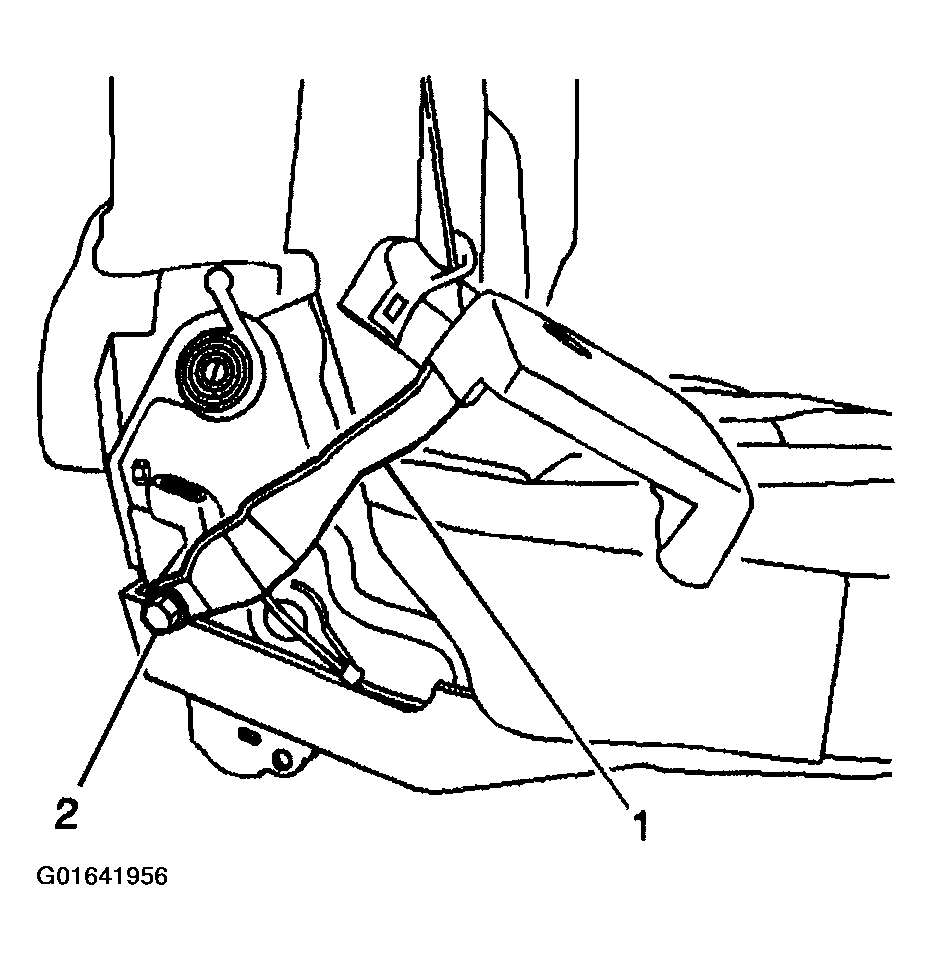

    5. Fig 3: Rear Center Seat Belt Anchor Nut
    G01641956Courtesy of GENERAL MOTORS CORP.
  5. Install the seat back cover and pad to the seat back. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  6. Install the inboard/outboard rear seat back cushion latch covers. Refer to SEAT BACK HINGE COVER REPLACEMENT - REAR NO. 1  .
  7. Install the seat in the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
