Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint assembly. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 2  .
  3. Remove the two bolts (1) securing the outer riser assembly to the seat back frame.

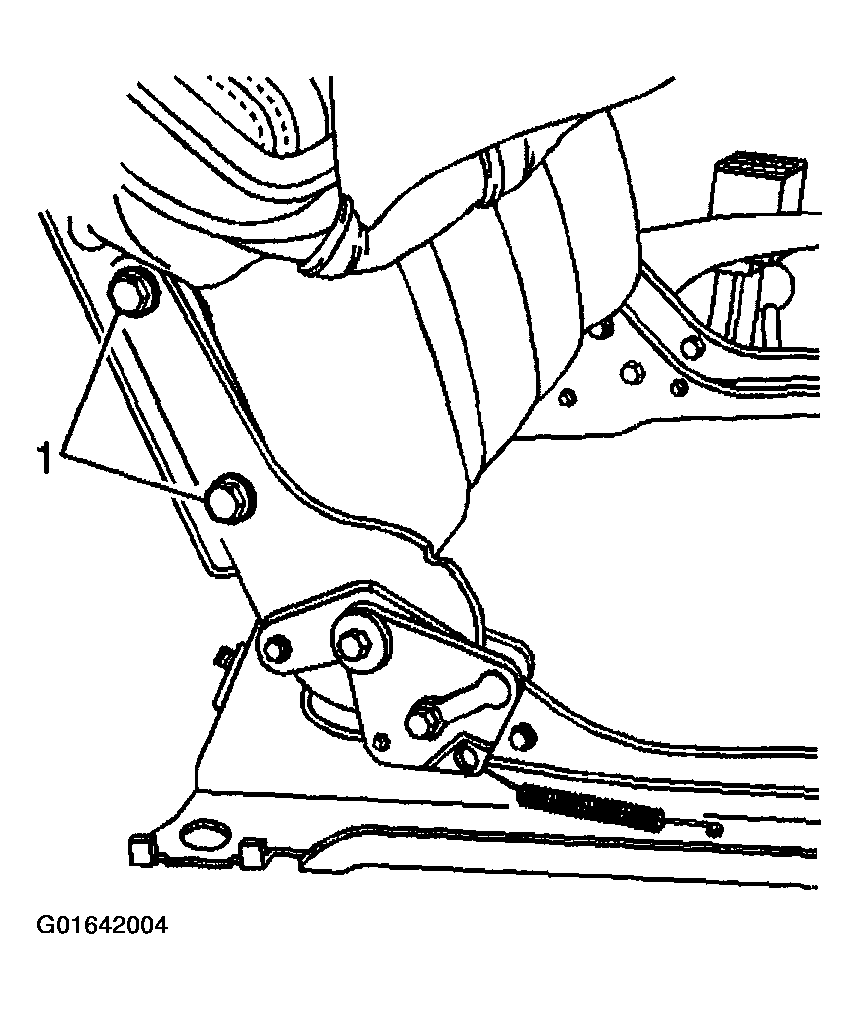

    4. Fig 1: Bolts Of Outer Riser Assembly To Seat Back Frame
    G01642004Courtesy of GENERAL MOTORS CORP.
  4. Remove the two bolts securing the inner riser assembly to the seat back frame.
  5. Remove the seat back.
