Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

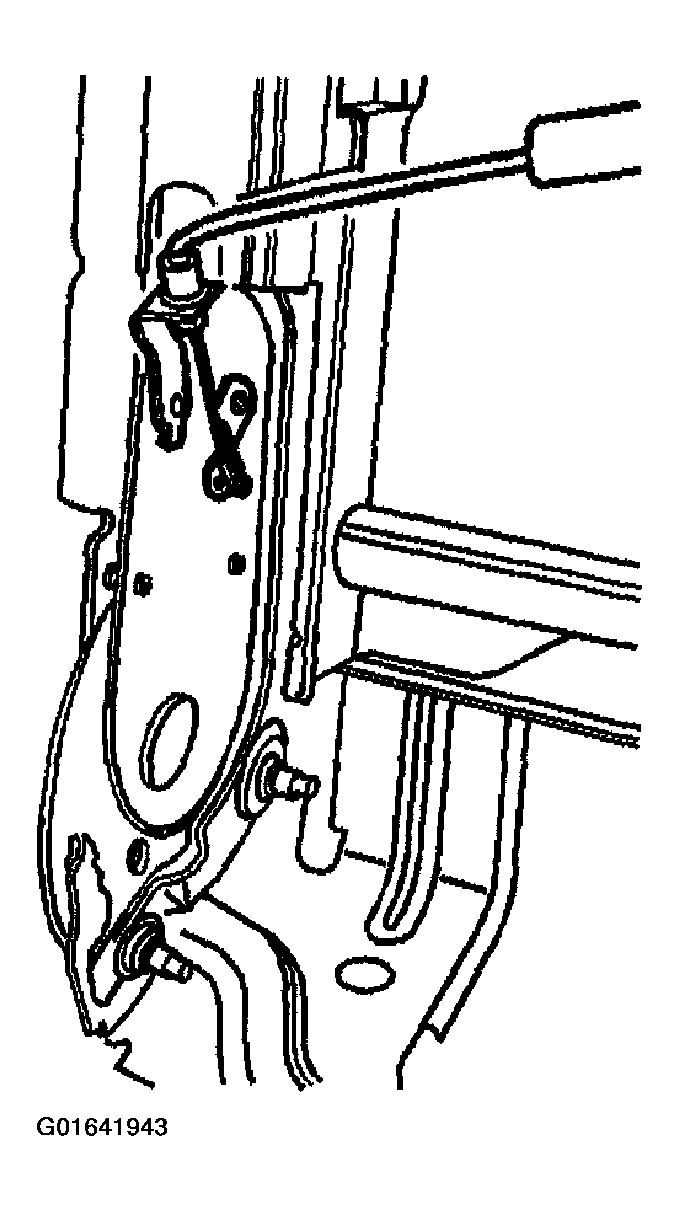

  1. Install the latch release cable to the right-hand hinge bracket.
    2. Fig 1: Latch Release Cable To Right-Hand Hinge Bracket
    G01641943Courtesy of GENERAL MOTORS CORP.
  2. Install the seat belt retractor assembly, on the left side only. Refer to SEAT BELT SYSTEM or SEAT BELT SYSTEM in Seat Belts.
  3. Install the seat back hinge brackets. Refer to SEAT BACK HINGE REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  or SEAT BACK HINGE REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  .
  4. Install the head restraint retractor assembly. Refer to HEAD RESTRAINT RETRACTOR ASSEMBLY REPLACEMENT - REAR NO. 1  .
  5. Install the latch release assembly. Refer to SEAT BACK RELEASE LATCH REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK RELEASE LATCH REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .

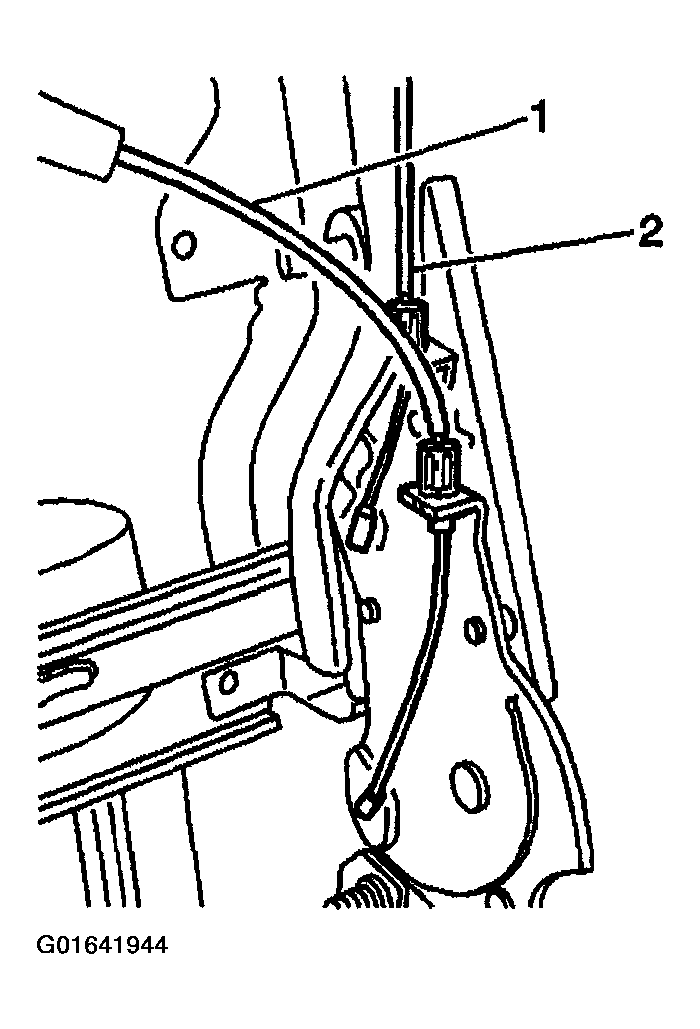

  6. Install the latch release cables (1) and the head rest restraint cable (2) to the left-hand hinge bracket.
    7. Fig 2: Latch Release Cables And Head Rest Restraint Cable
    G01641944Courtesy of GENERAL MOTORS CORP.
  7. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
