Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat assembly from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT  .
  3. Remove the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  4. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  5. Remove the front seat back panel. Refer to SEAT BACK PANEL REPLACEMENT - FRONT  .
  6. Remove the lumbar assembly. Refer to LUMBAR REPLACEMENT - FRONT SEAT  .
  7. Remove the seat belt and retractor assembly. Refer to SEAT BELT REPLACEMENT - FRONT .
  8. Remove 2 screws (1) securing the inflatable side impact module to the seat back frame.
    9. Fig 1: 2 Screws Securing Inflatable Side Impact Module To Seat Back Frame
    G01641799Courtesy of GENERAL MOTORS CORP.

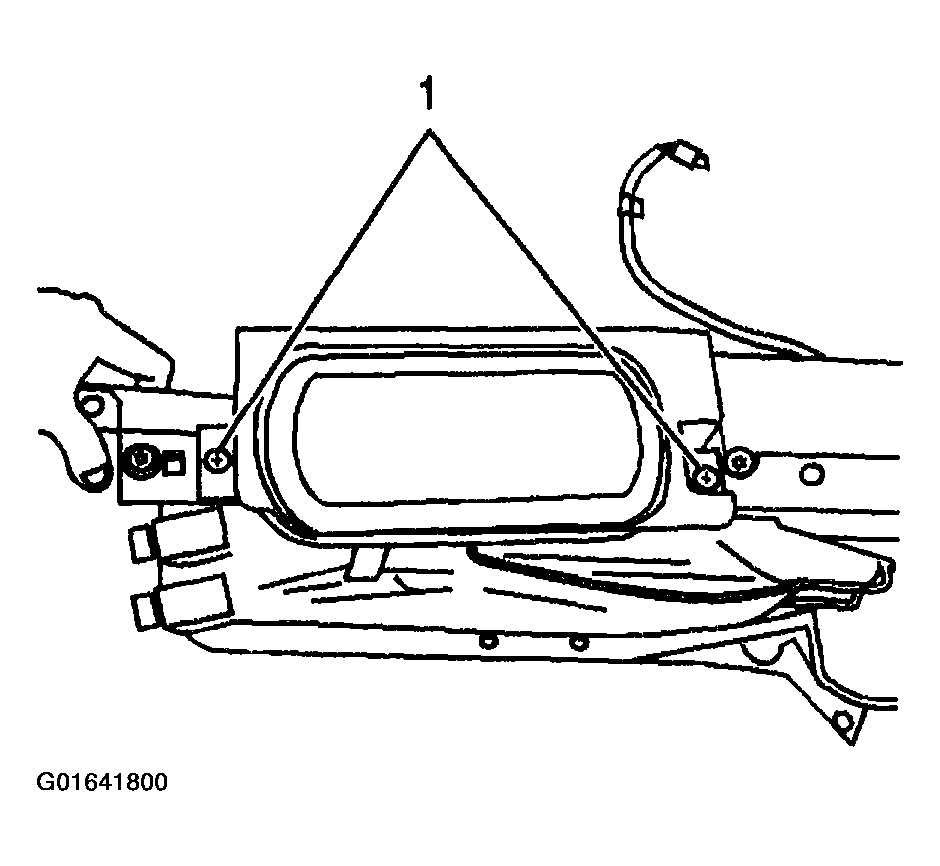

  9. Remove the 2 push pins (1) securing the side impact module tub to the seat back frame.
    10. Fig 2: 2 Push Pins Securing Side Impact Module Tub To Seat Back Frame
    G01641800Courtesy of GENERAL MOTORS CORP.

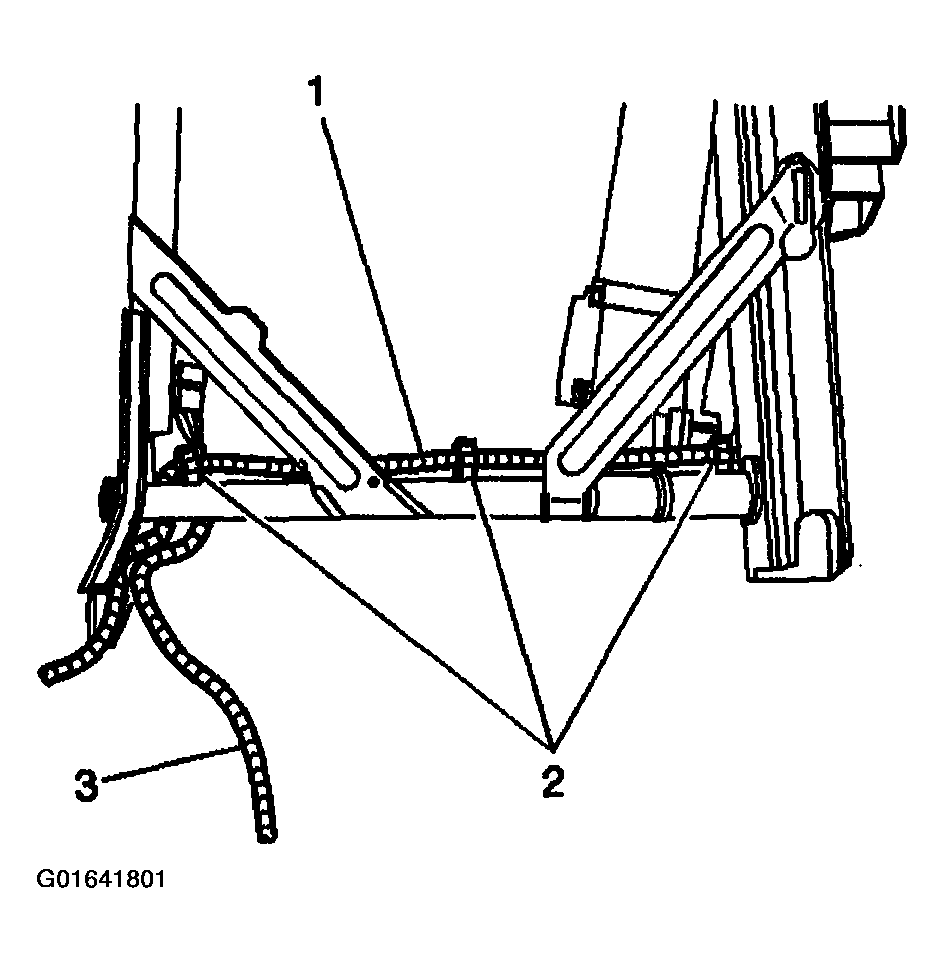

  10. Remove the SIR wiring harness (1) from the seat back frame.
  11. Remove the lumbar wiring harness (3) from the seat back frame.
  12. Remove the wiring harness clips (2) from the seat back frame.
    13. Fig 3: Wiring Harness Clips Of Seat Back Frame
    G01641801Courtesy of GENERAL MOTORS CORP.
