Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the pad on the seat back frame.
  2. Fit the seat back cover over the top of the seat back frame and pad.
  3. Install the head restraint guides by pushing them through the cover into the frame until the locking tabs snap into place. The guide with the locking tab (1) installs on the right hand side of the seat.
    4. Fig 1: Locking Tab
    G01641999Courtesy of GENERAL MOTORS CORP.
  4. Install the hog rings (1) to the cover and pad.

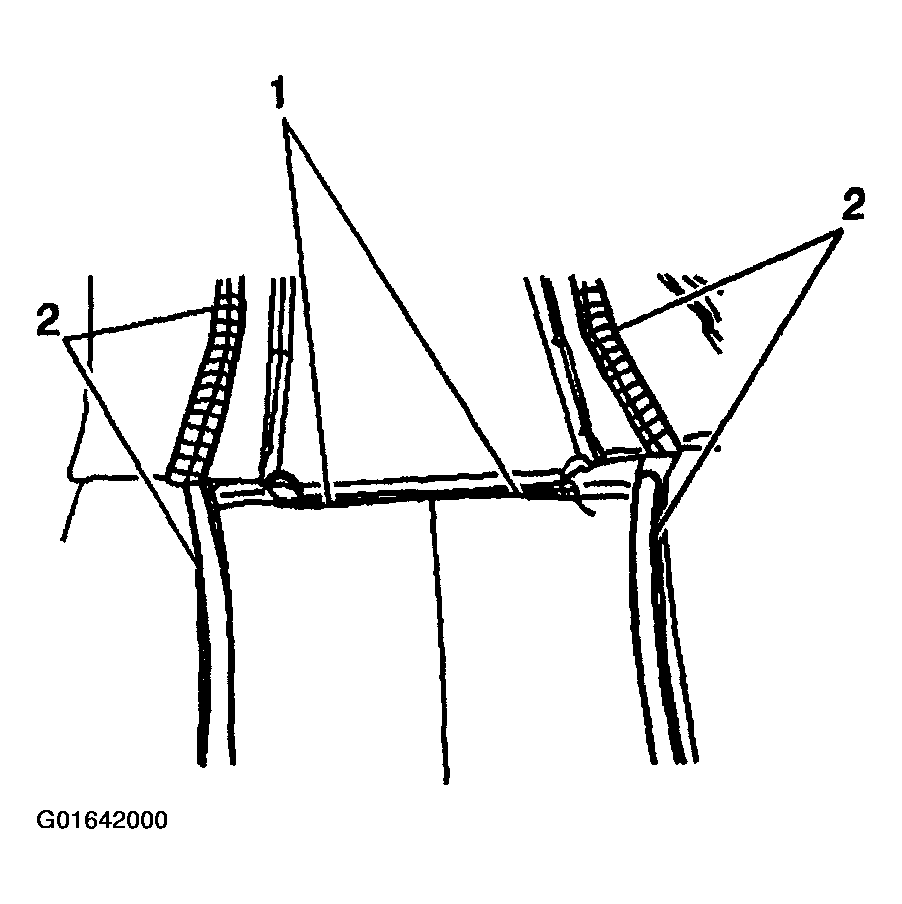

    5. Fig 2: Hog Rings
    G01642000Courtesy of GENERAL MOTORS CORP.
  5. Pull the seat back cover down over the pad pressing the hook and loop fastener strips (2) together.
  6. Install the seat back cover flap to the pad with the hog rings (2).
  7. Install the J-strips (1) across the bottom of the seat back cover.

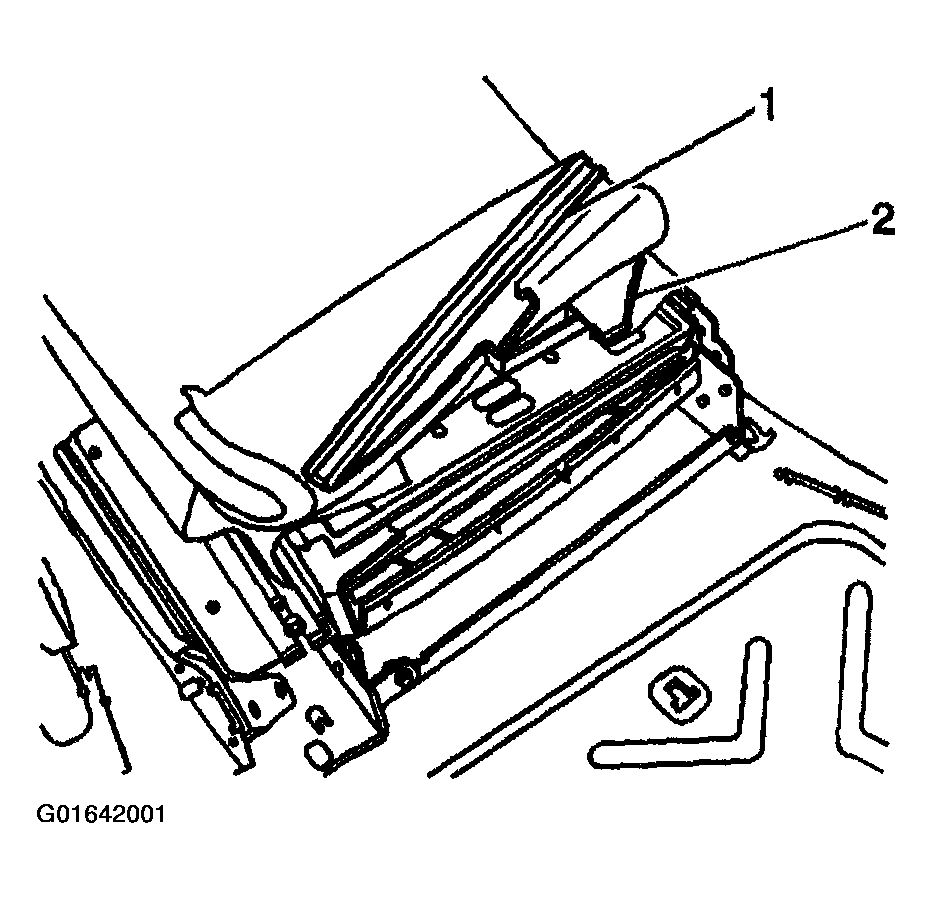

    8. Fig 3: J-Strip Across Bottom Of Seat Back Cover
    G01642001Courtesy of GENERAL MOTORS CORP.
  8. J-Strip (1) to the seat adjuster cross bar (2).

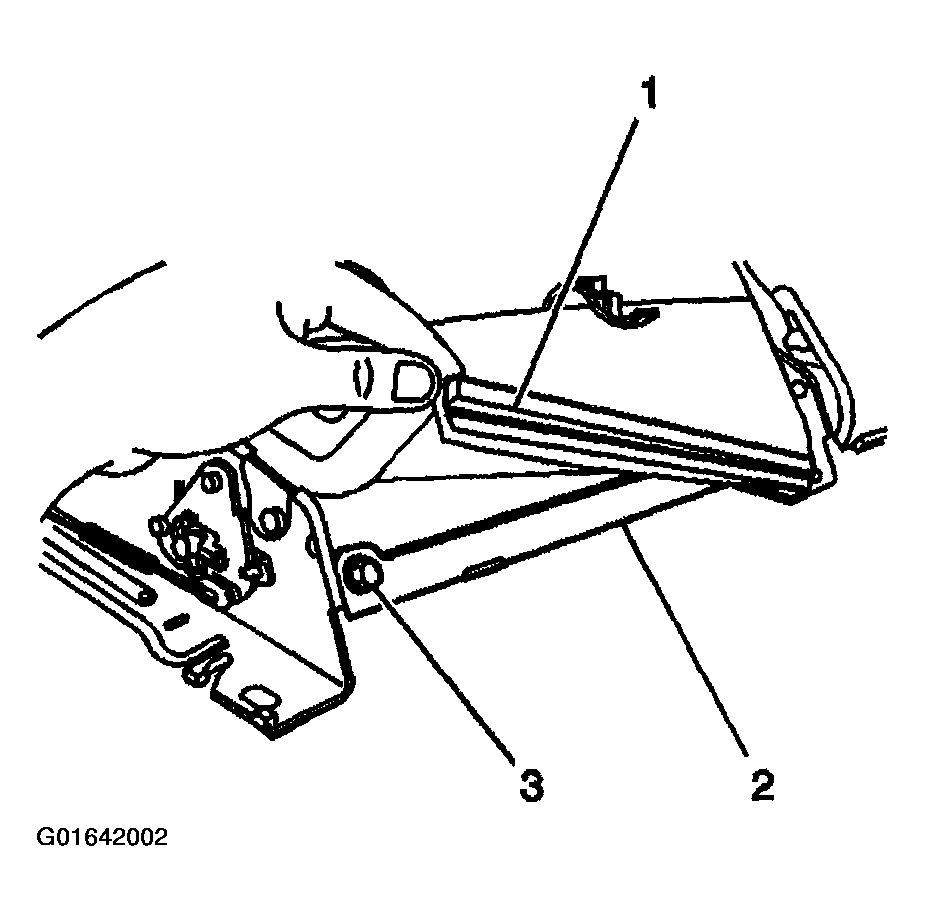

    9. Fig 4: J-Strip To Seat Adjuster Cross Bar
    G01642002Courtesy of GENERAL MOTORS CORP.
  9. Install the screws (3) securing the extension panel (1) to the seat back.

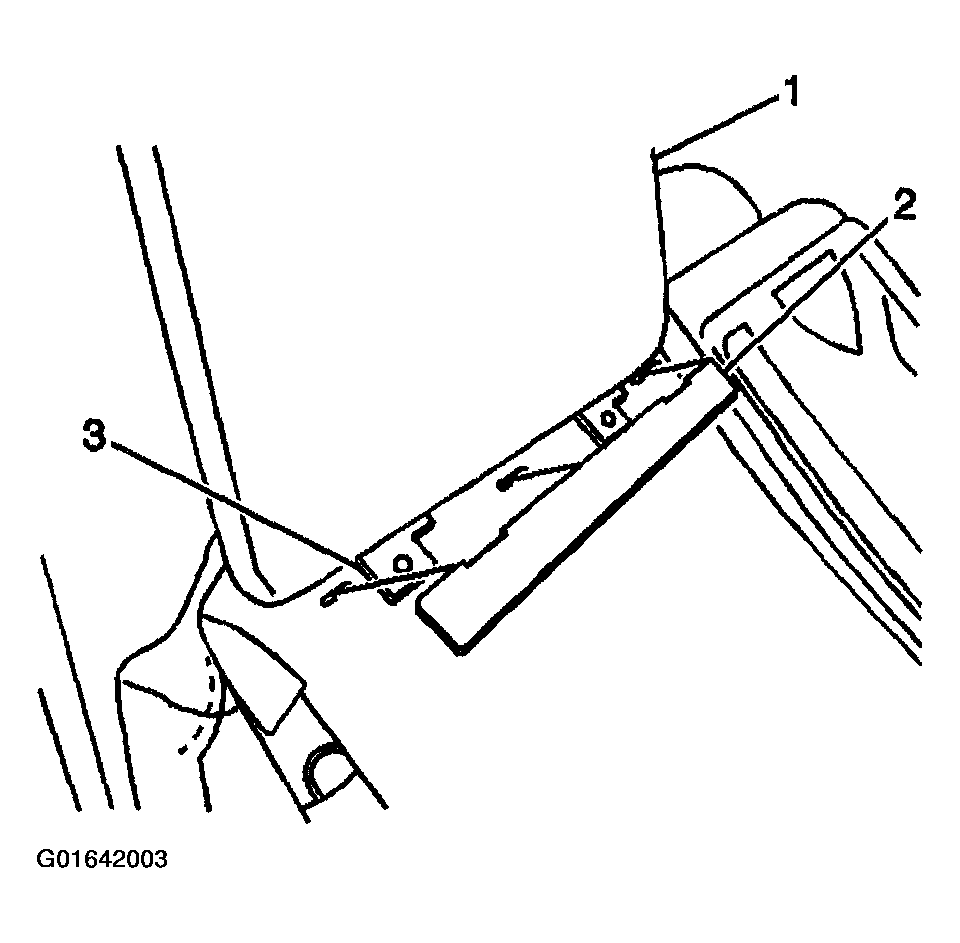

    10. Fig 5: Extension Panel Hinge Trim
    G01642003Courtesy of GENERAL MOTORS CORP.
  10. Install the extension panel hinge trim (2).
  11. Install the head restraint assembly. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
