Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back from the vehicle. Refer to SEAT BACK REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK REPLACEMENT - REAR NO. 1 (TRAILBLAZER, EXT & ENVOY XL)  .
  2. Remove the seat belt buckle bracket, on the right side only.
  3. Remove the seat belt anchor bolt from the bracket.

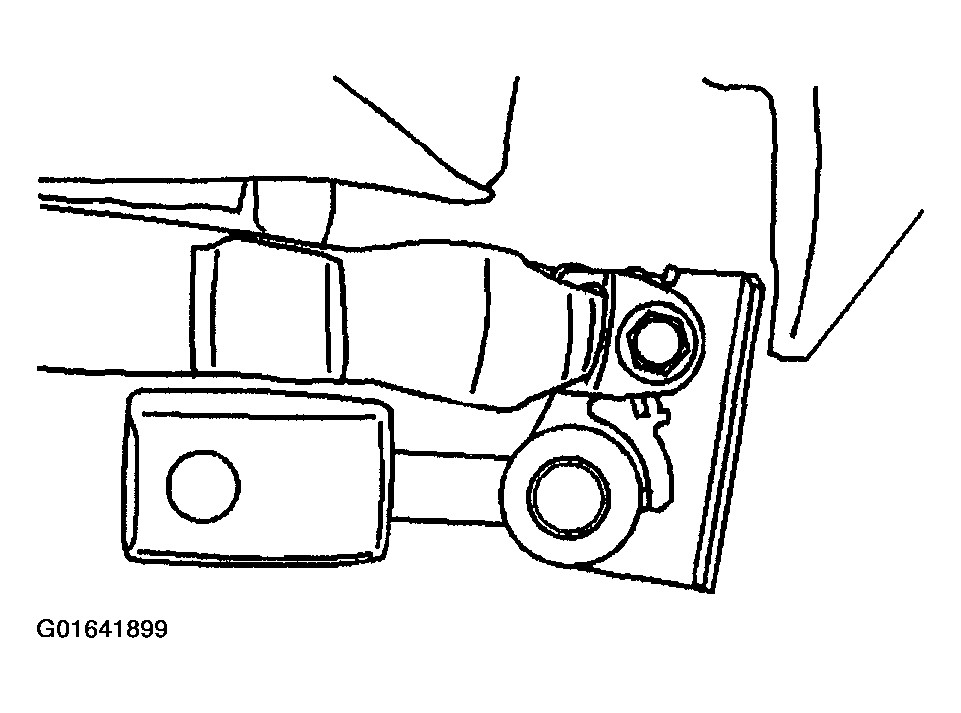

    4. Fig 1: Seat Belt Anchor Bolt Of bracket
    G01641899Courtesy of GENERAL MOTORS CORP.
  4. Release the seat belt bezel from the seat back by pressing in the buttons (1) on the plastic retainers.
  5. Remove the seat belt bezel by sliding it off the seat belt.
    6. Fig 2: Seat Belt Bezel From Seat Back
    G01641900Courtesy of GENERAL MOTORS CORP.
  6. Remove the head restraints. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
  7. Remove the release latch knob.

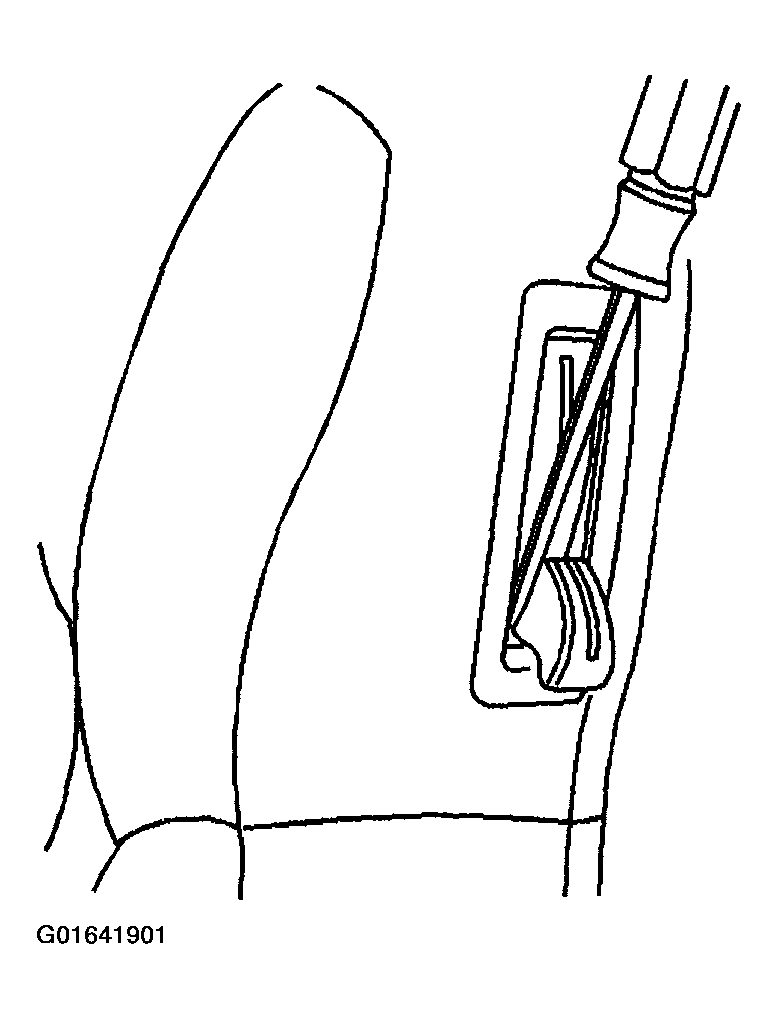

    8. Fig 3: Release Latch Knob
    G01641901Courtesy of GENERAL MOTORS CORP.
  8. Remove the screw that retains the seat back latch release bezel to the seat back.

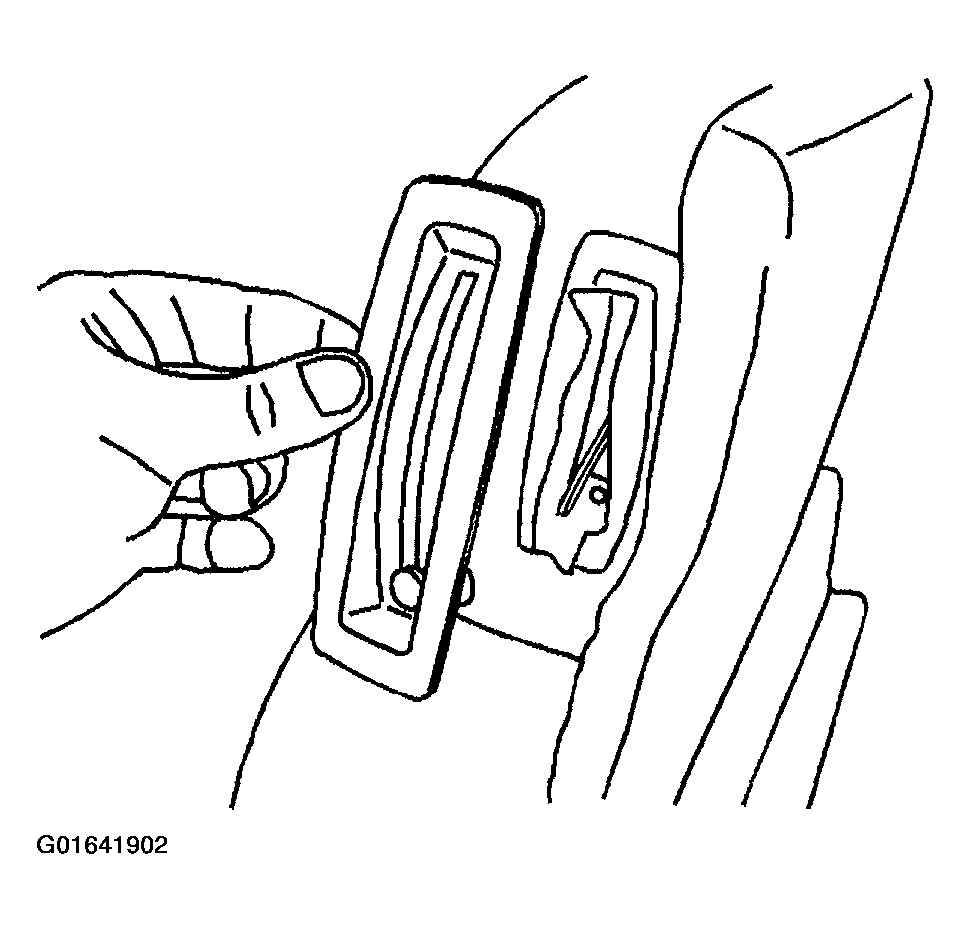

    9. Fig 4: Bezel To Seat Back
    G01641902Courtesy of GENERAL MOTORS CORP.
  9. Release the J strips on the bottom of the seat back frame.

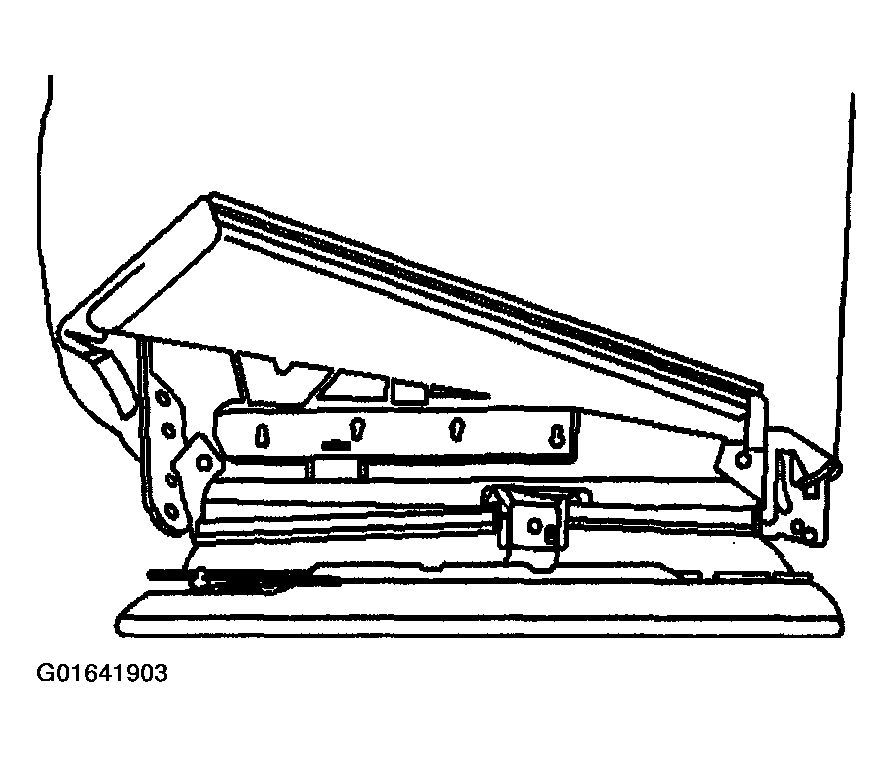

    10. Fig 5: J Strips On Bottom Of Seat Back Frame
    G01641903Courtesy of GENERAL MOTORS CORP.
  10. Release the hook and loop retaining strips at the bottom of the seat back.
  11. Remove 3 push-pins from the bottom of the seat back.
    IMPORTANT: Ensure that the hook and loop retaining strips remain attached to the seat back pad.

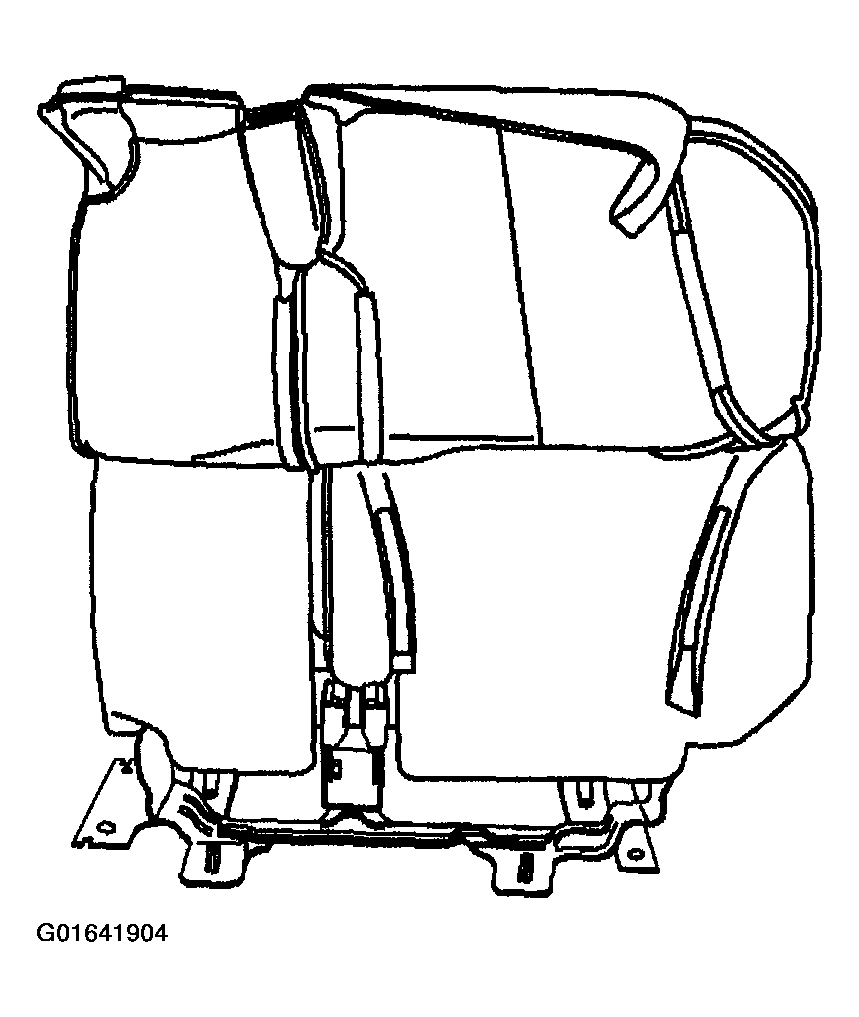

    12. Fig 6: Cover From Hook And Loop
    G01641904Courtesy of GENERAL MOTORS CORP.
  12. Release the cover from the hook and loop retaining strips on the front of the seat back pad.
  13. Remove the 6 push-pins from the seat back.

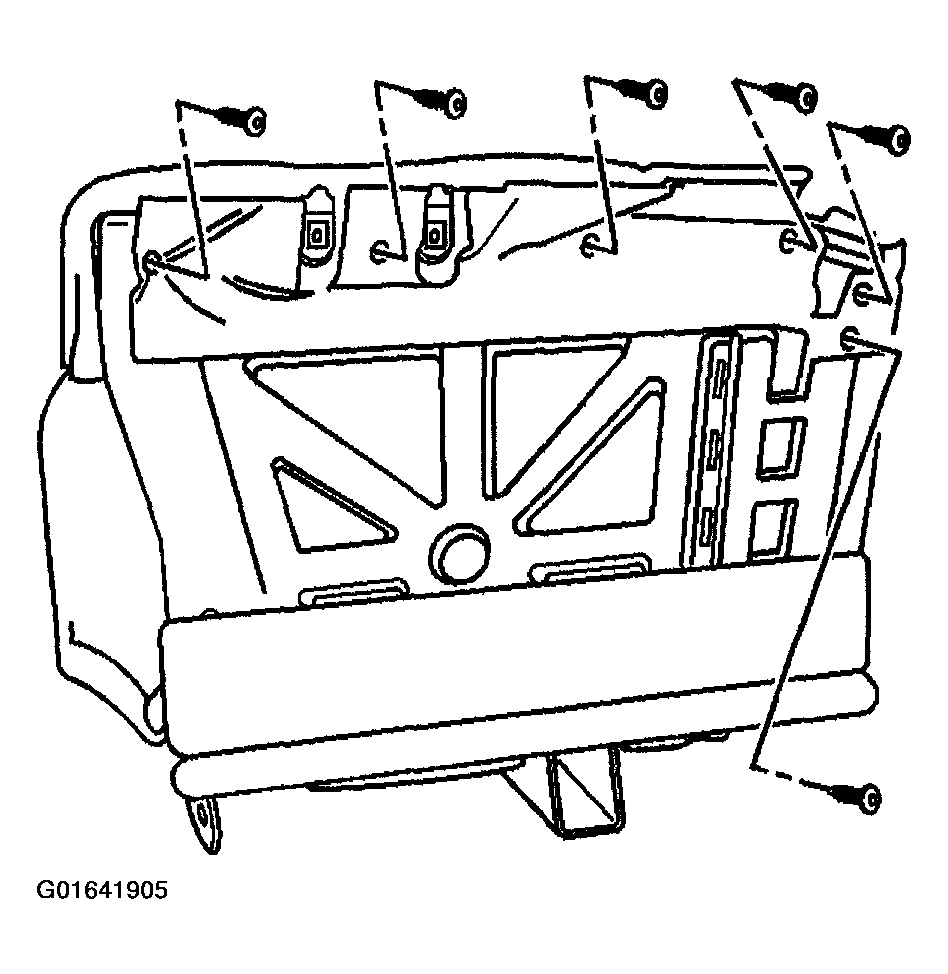

    14. Fig 7: 6 Push-Pins From Seat Back
    G01641905Courtesy of GENERAL MOTORS CORP.
  14. Remove the cover and pad from the seat back.
  15. Release the 3 hog-rings from the reinforcement bar.
  16. Remove the seat cover from the pad.

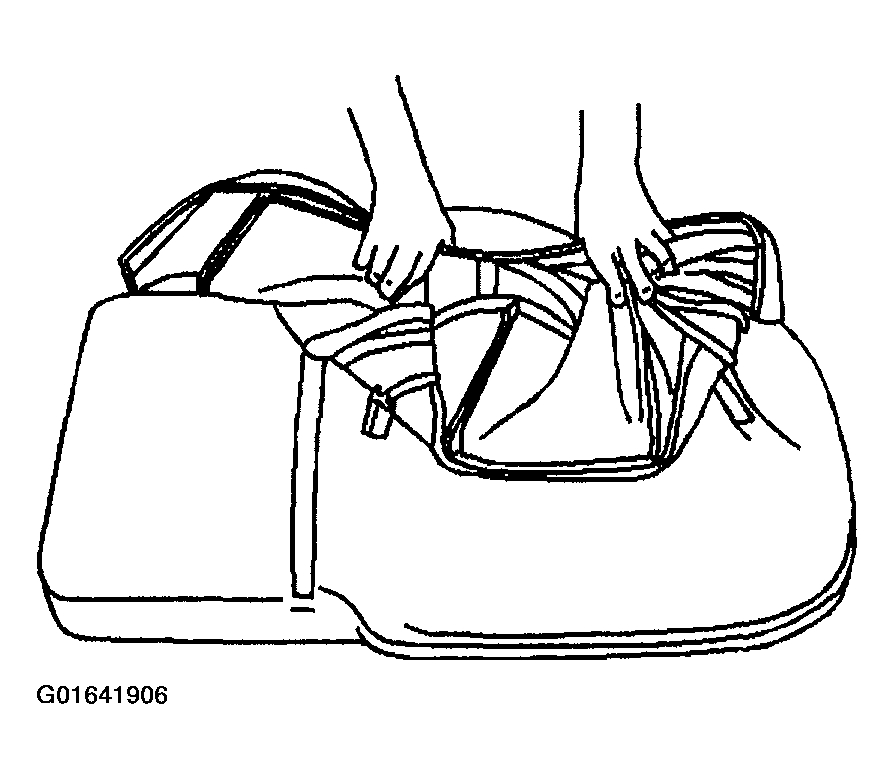

    17. Fig 8: Seat Cover From Pad
    G01641906Courtesy of GENERAL MOTORS CORP.
