Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back pad to the seat back frame.
  2. Connect the electrical connector to the seat back heating element, if equipped.
  3. Partially install the seat back cover over the top of the seat.
  4. Install the head restraint guides to the seat frame. Ensure that the locking tabs are fully seated. The guide with the release tab goes on the right-hand side.
    5. Fig 1: Head Restraint Guides To Seat Frame
    G01641794Courtesy of GENERAL MOTORS CORP.
  5. Pull the seat back cover down approximately 18 cm (7 in) from the top of the seat back, leaving the reinforcement bar exposed.
  6. Install the hog rings that retain the seat back pad to the reinforcement bar.
  7. Pull the seat cover over the seat back pad.

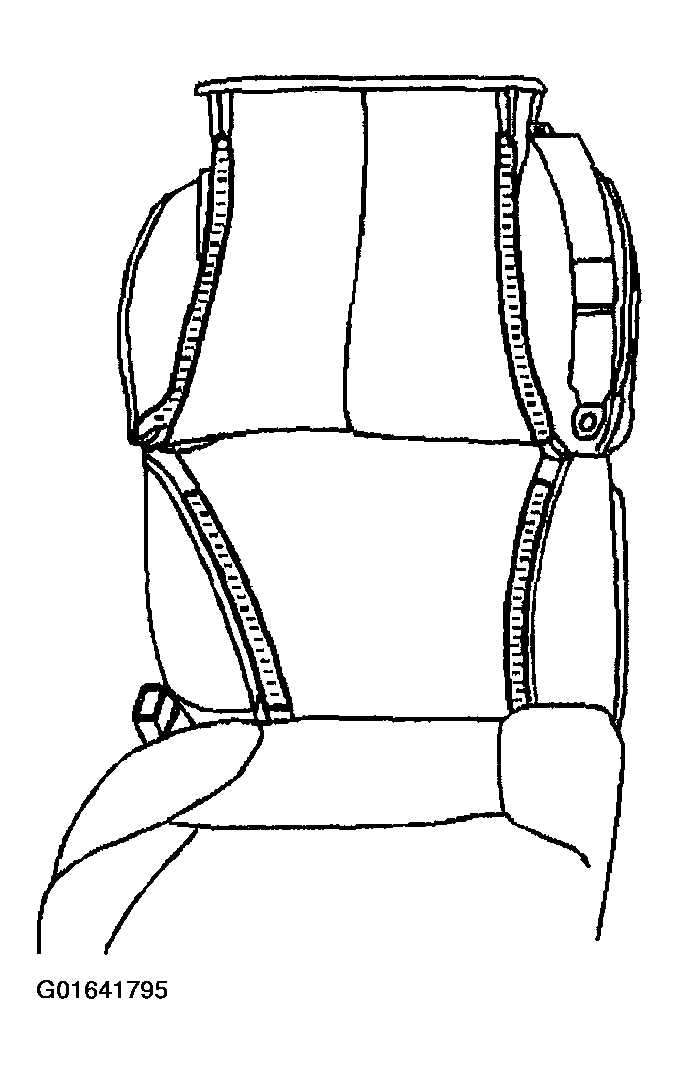

    8. Fig 2: Seat Cover Over Seat Back Pad
    G01641795Courtesy of GENERAL MOTORS CORP.
  8. Press the seat cover hook and loop retaining strips together by firmly running your hand over the seat back cover.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  9. Install the seat belt bezel to the top of the seat back with the mounting screw.

    Tighten

    Tighten the seat belt bezel screw to 3 N.m (26 lb in).

    10. Fig 3: Screw Seat Belt Bezel To Top Of Seat Back
    G01641796Courtesy of GENERAL MOTORS CORP.
  10. Using a flat-bladed tool, carefully engage the plastic strips that retain the seat back cover to the side airbag inflator module.
  11. Carefully install the seat back cover behind the trim edge of the side airbag inflator module.

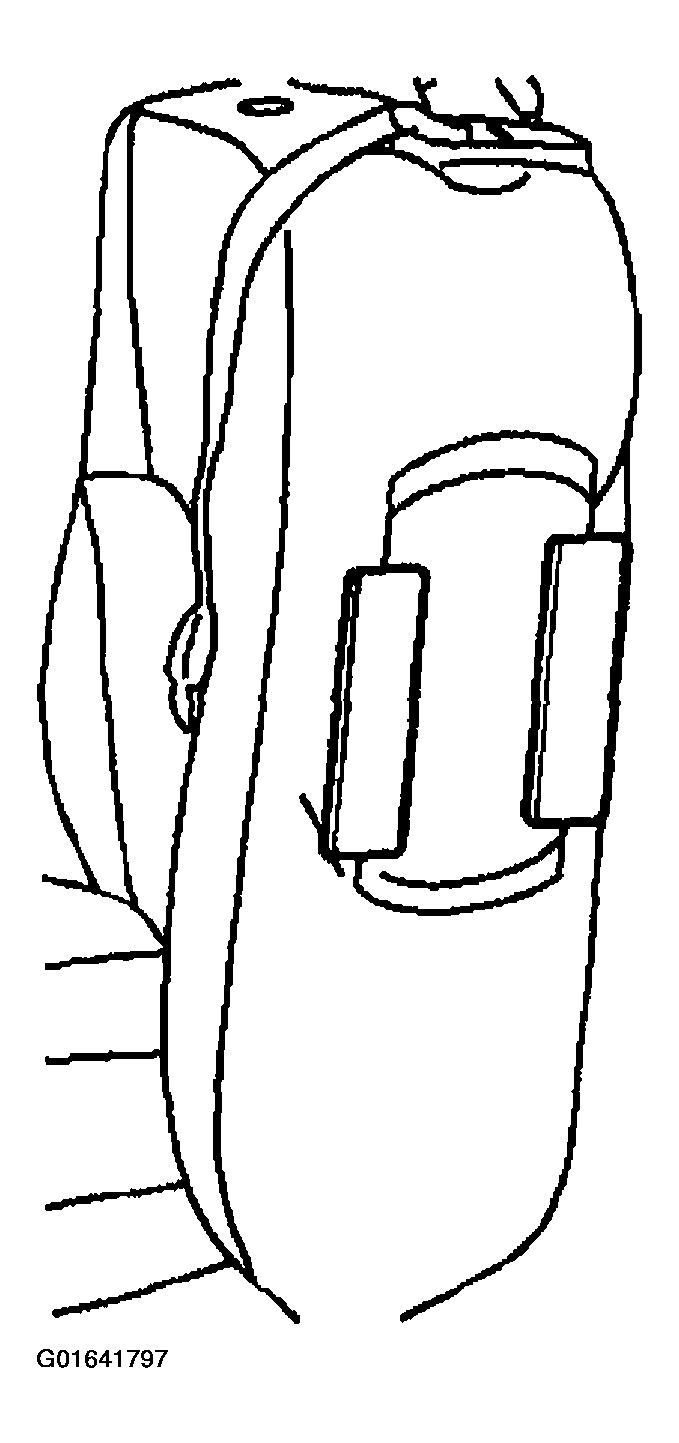

    12. Fig 4: Seat Back Cover Behind Trim Edge
    G01641797Courtesy of GENERAL MOTORS CORP.
  12. Fasten the J-strips (1,4) across the bottom of the seat back cover.
  13. Install the seat cover flaps (2) to the seat frame with push pins (3).

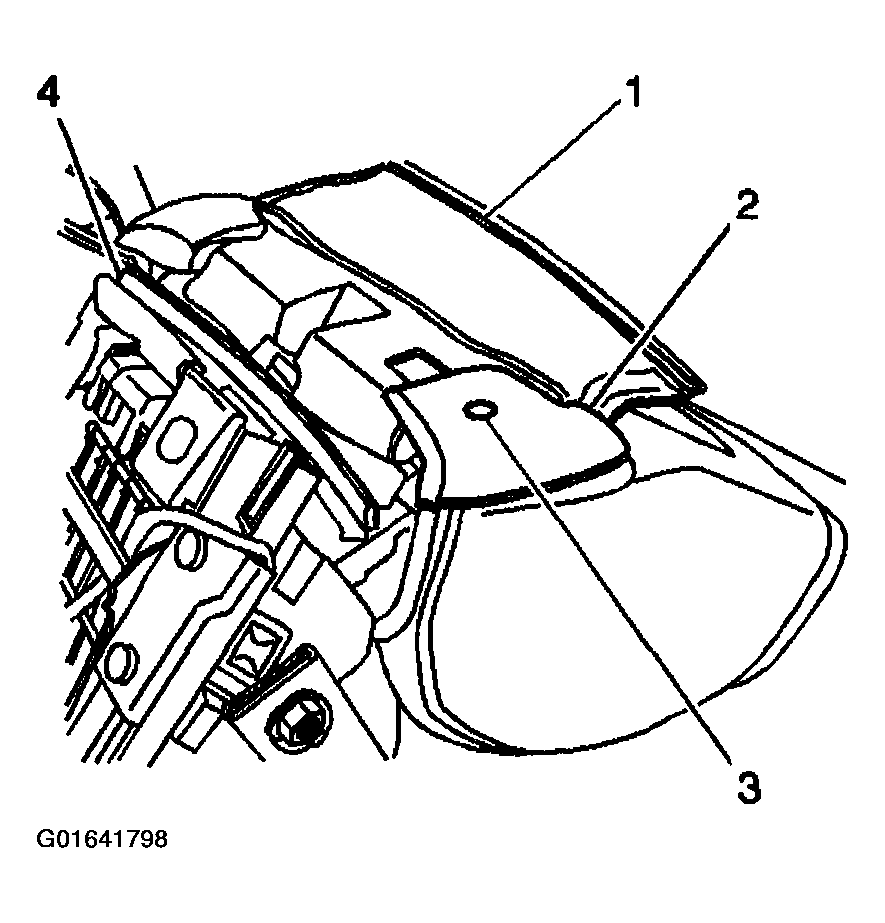

    14. Fig 5: Seat Cover Flaps
    G01641798Courtesy of GENERAL MOTORS CORP.
  14. Install the seat trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT  .
  15. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  16. Install the front seat assembly from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
