Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat assembly from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat cushion trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT  .

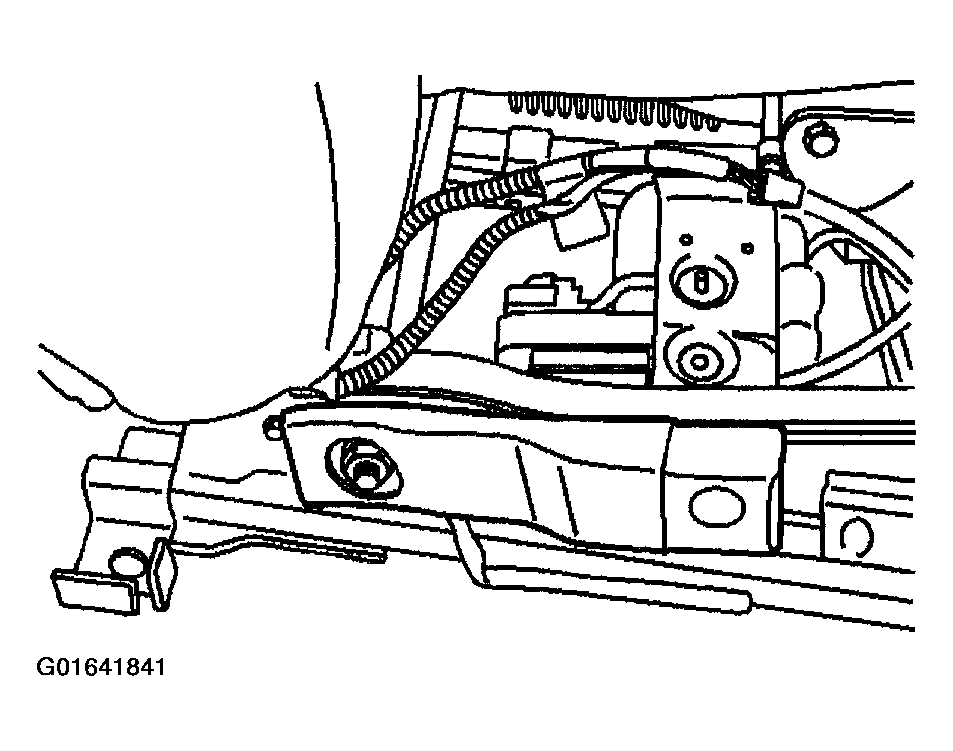

  3. Remove the seat belt buckle nut.
    4. Fig 1: Seat Belt Buckle Nut
    G01641841Courtesy of GENERAL MOTORS CORP.

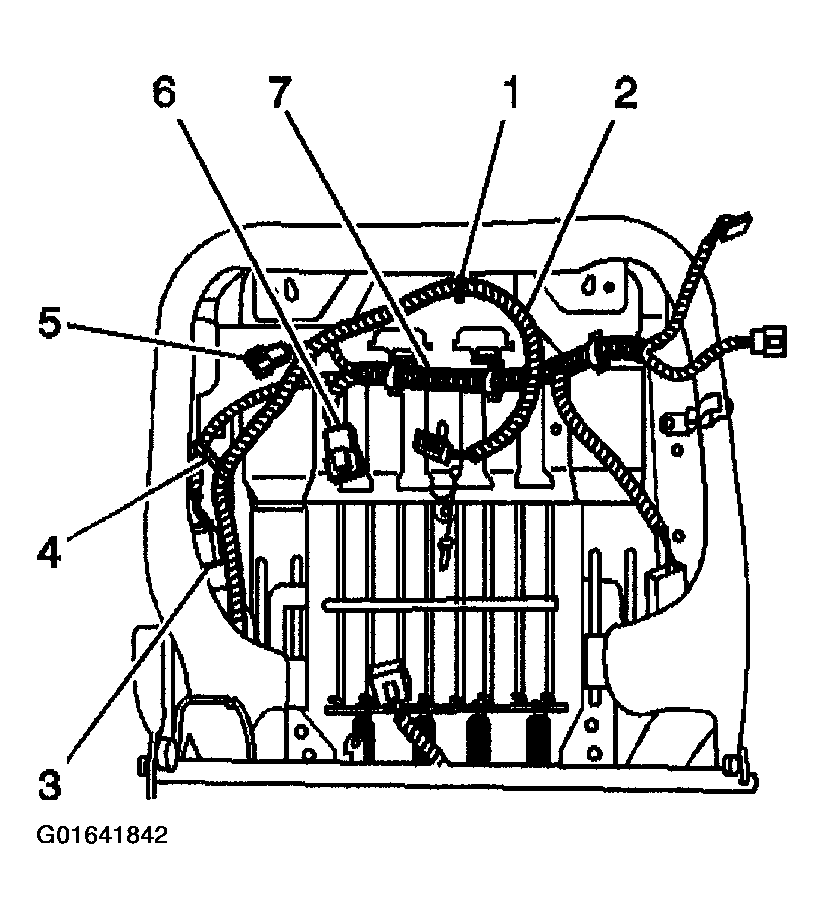

  4. Disconnect the black electrical connector (6) from the seat back harness.
    5. Fig 2: Connectors
    G01641842Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the black electrical connector (3) from the seat belt buckle.
  6. Disconnect the gray lumbar electrical connector (5), if equipped.
  7. Remove the SIR harness (2) from the harness clips (1,4), and remove the SIR harness from the seat.

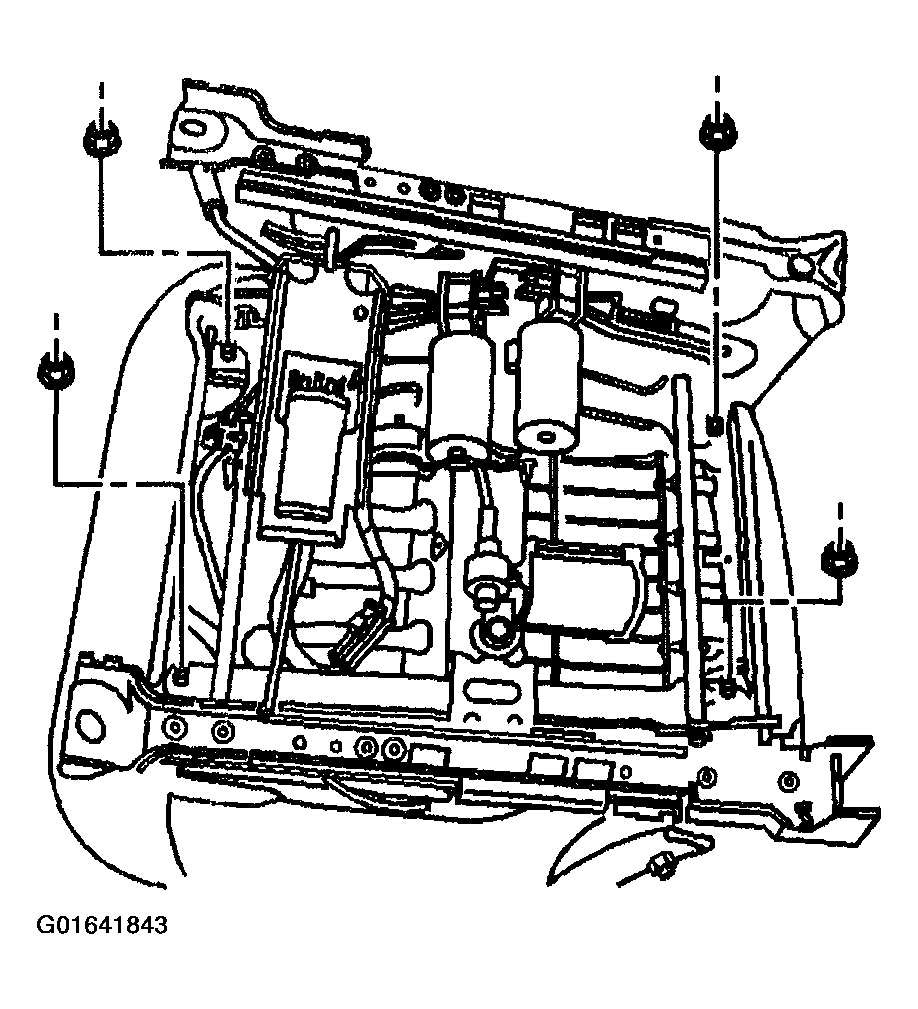

  8. Remove the 4 nuts that secure the seat pan to the power seat adjuster frame.
    9. Fig 3: 4 Nuts Secure Seat Pan To Power Seat Adjuster Frame
    G01641843Courtesy of GENERAL MOTORS CORP.
  9. Remove the seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
