Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unhook the seat back cushion extension panel strap (1) from the extension panel (2).
    2. Fig 1: Seat Back Cushion Extension Panel Strap
    G01642018Courtesy of GENERAL MOTORS CORP.
  2. Remove the J-strip (1) from the seat adjuster cross bar (2).
  3. Remove the two bolts (3) from the seat adjuster cross bar (2).
  4. Remove the seat adjuster cross bar.

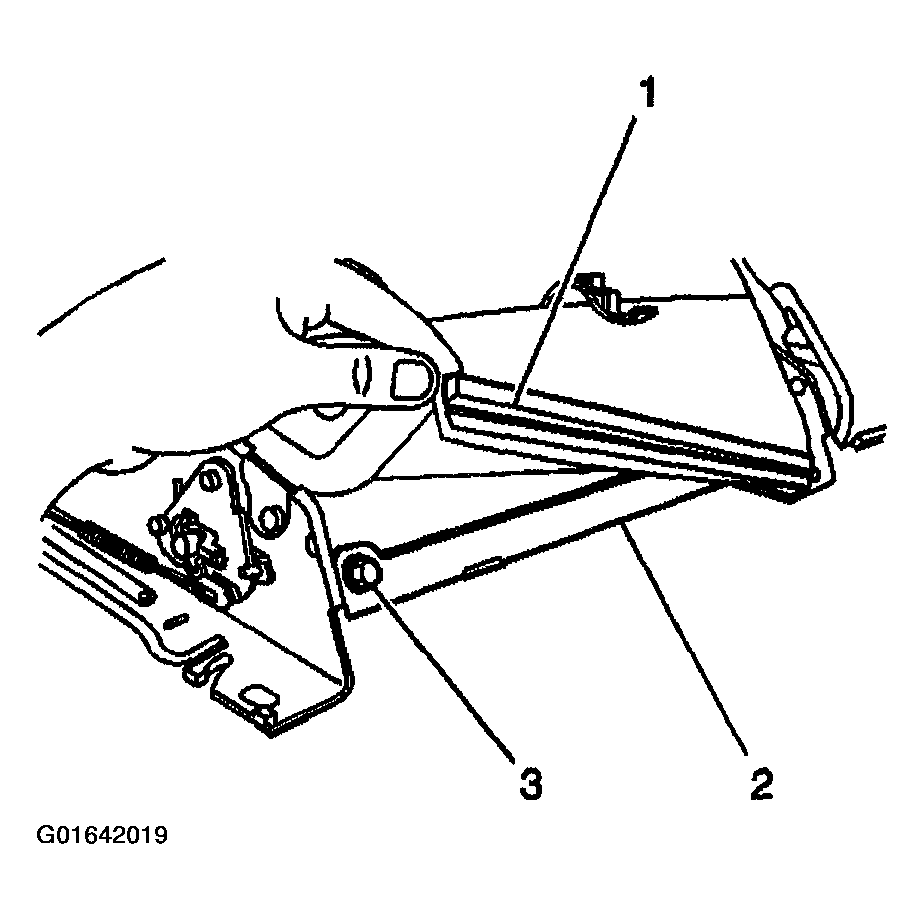

    5. Fig 2: J-Strip From Seat Adjuster Cross Bar
    G01642019Courtesy of GENERAL MOTORS CORP.
