Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the rear seat adjuster cross bar (2) to the seat with two bolts (3).

    Tighten

    Tighten the rear seat adjuster cross bar bolts to 25 N.m (18 lb ft).

  2. Install the J-strip (1) to the seat adjuster cross bar (2).

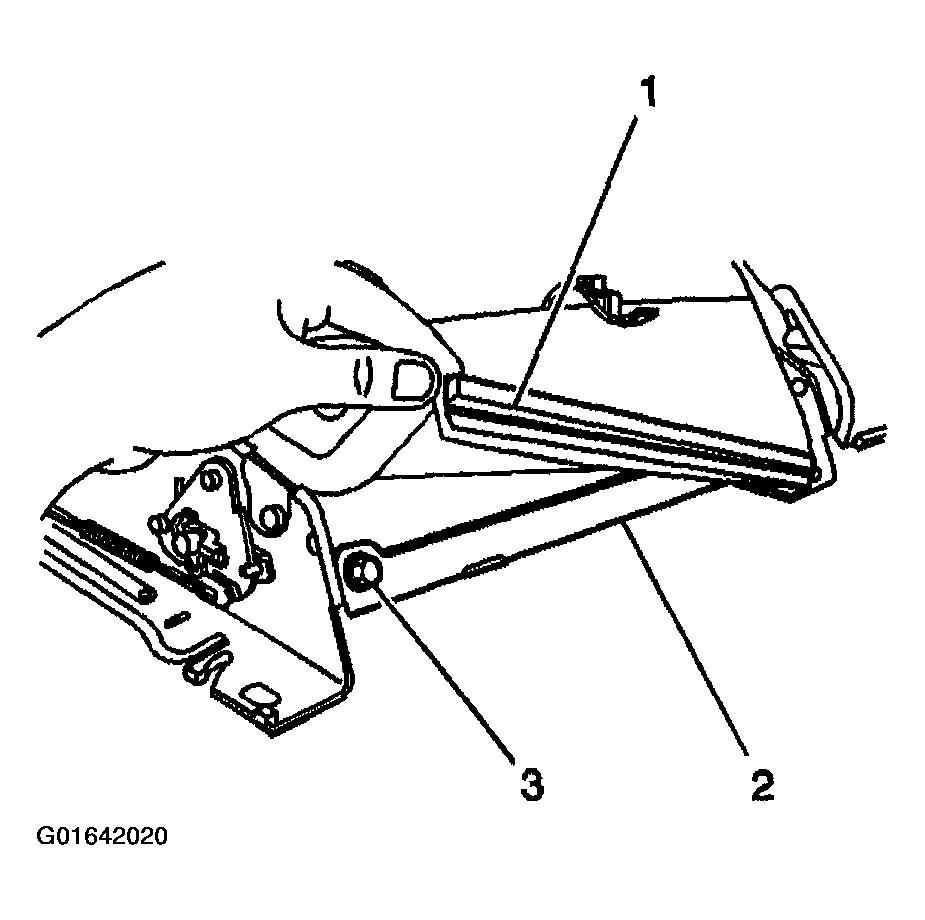

    3. Fig 1: J-Strip To Seat Adjuster Cross Bar
    G01642020Courtesy of GENERAL MOTORS CORP.
  3. Hook the seat back cushion extension panel strap (1) to the extension panel (2).
    4. Fig 2: Seat Back Cushion Extension Panel Strap To Extension Panel
    G01642021Courtesy of GENERAL MOTORS CORP.
