Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the two screws (3) securing the seat pull handle (1) to the seat panel.

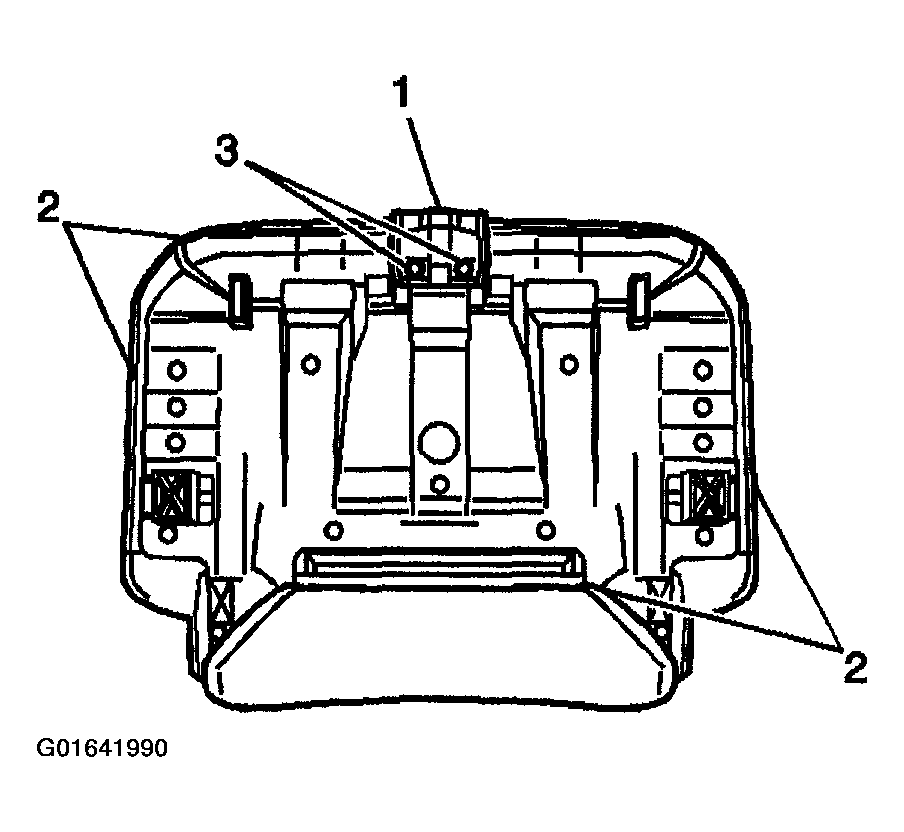

  2. Fig 1: Screws Of Seat Pull Handle
    G01641990Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat pull handle.
