Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  2. Remove the trim panel from the seat cushion. Refer to SEAT CUSHION TRIM PANEL REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  3. Remove the rear center seat belt buckle assembly from the floor latch assembly. Refer to SEAT BELT SYSTEM or SEAT BELT SYSTEM in Seat Belts.

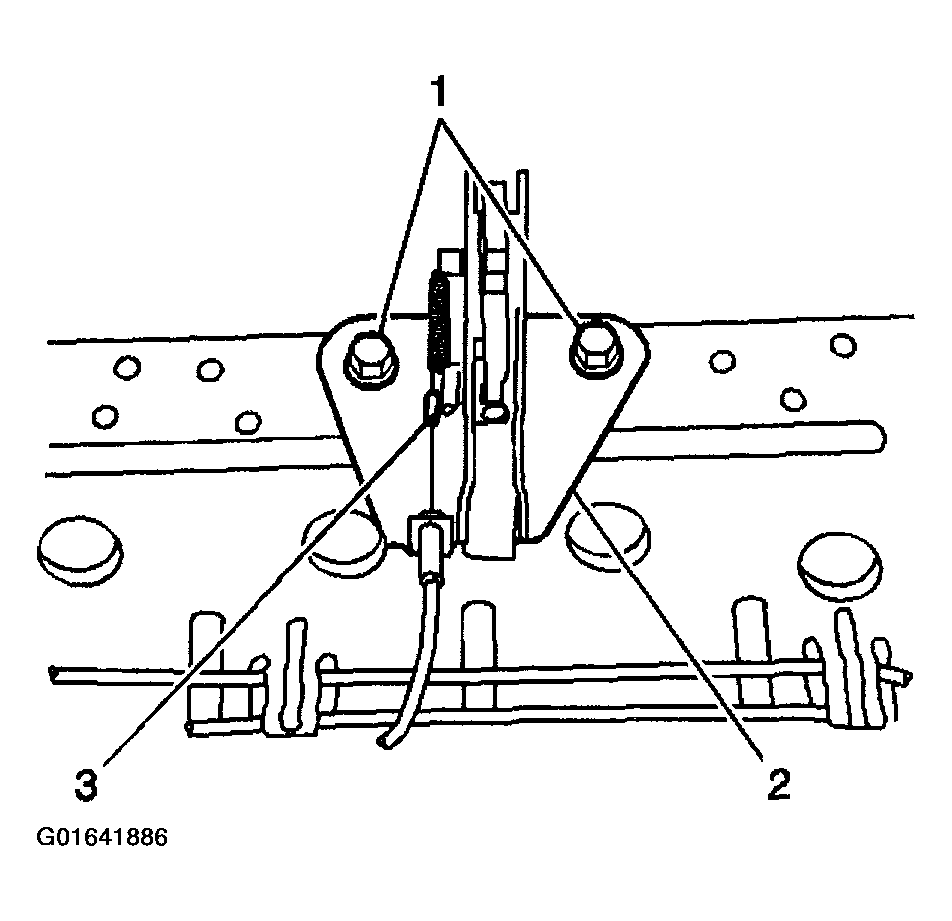

    4. Fig 1: Rear Center Seat Belt Buckle Assembly
    G01641886Courtesy of GENERAL MOTORS CORP.
  4. Remove the cable (3) from the mid-position floor latch assembly (2).
  5. Remove the bolts (1) securing the mid-position floor latch assembly to the seat cushion frame.
  6. Remove the mid-position floor latch assembly.
