Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the switch bezel assembly from the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
  2. Remove the power seat switch. Refer to SEAT SWITCH REPLACEMENT - POWER  .
  3. Release the tabs that retain the lumbar switch to the switch bezel assembly.
  4. Disconnect the electrical connector from the lumbar switch.
  5. Remove the lumbar switch from the switch bezel assembly.

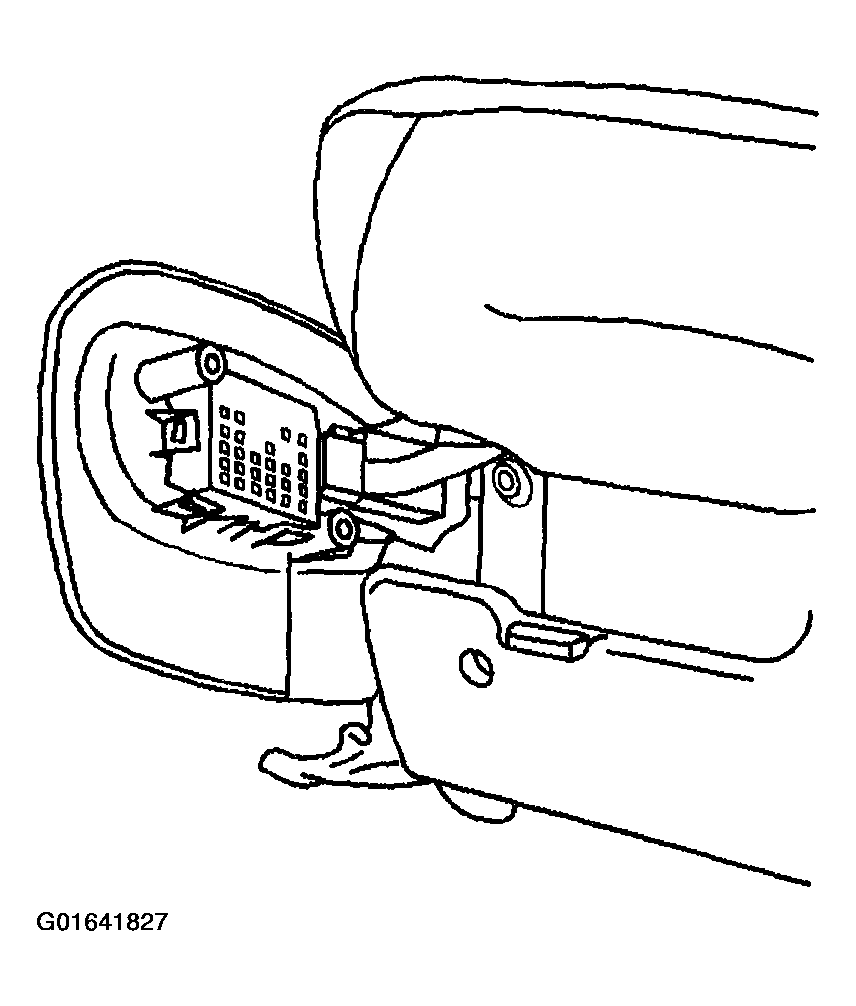

    6. Fig 1: Switch Bezel Assembly From Seat
    G01641827Courtesy of GENERAL MOTORS CORP.
