Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  3. Remove the seat back panel. Refer to SEAT BACK PANEL REPLACEMENT - FRONT  .
  4. Disconnect the electrical connector from the lumbar motor.
  5. Detach the lumbar clip from the top of the seat back frame.
  6. Remove the lumbar motor mounting screw.
  7. Remove the lumbar assembly from the seat.

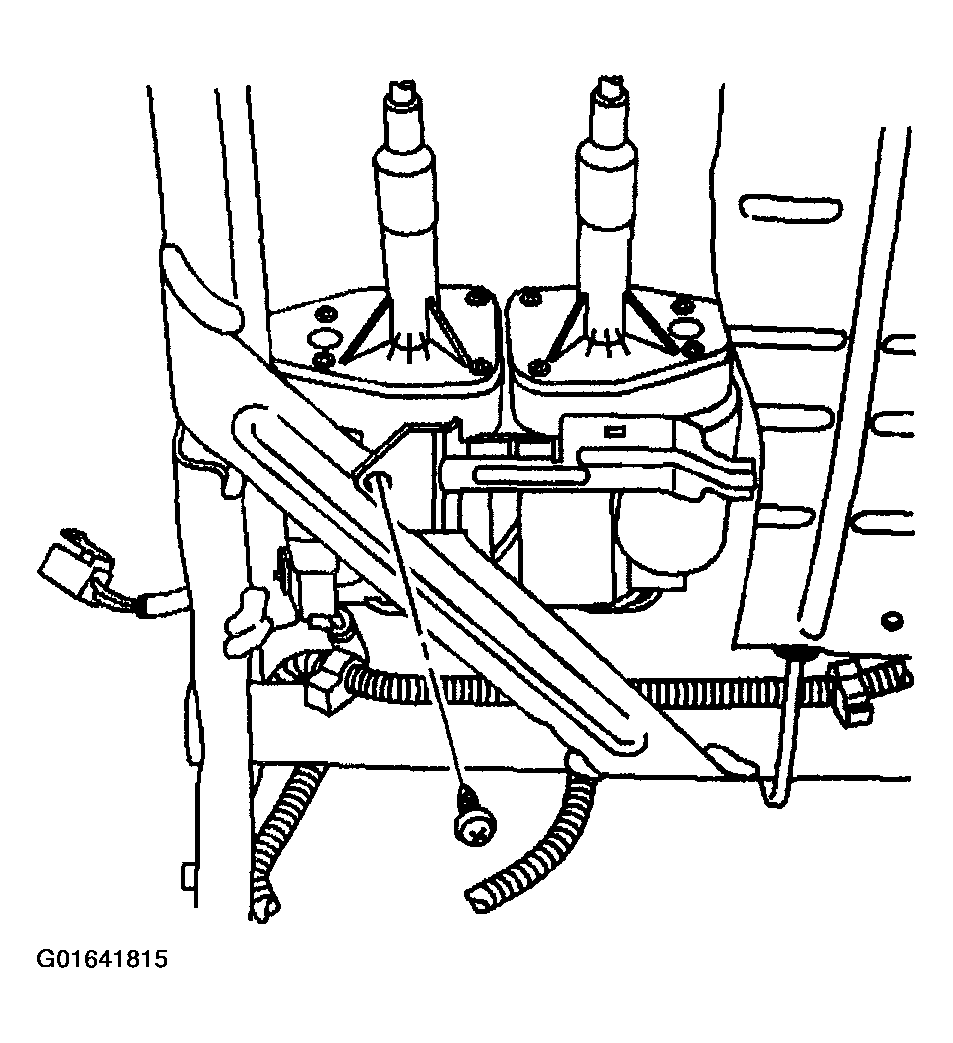

    8. Fig 1: Lumbar Motor Mounting Screw
    G01641815Courtesy of GENERAL MOTORS CORP.
