Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lumbar assembly onto the seat.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the lumbar motor mounting screw.

    Tighten

    Tighten the lumbar motor mounting screw to 8 N.m (71 lb in).

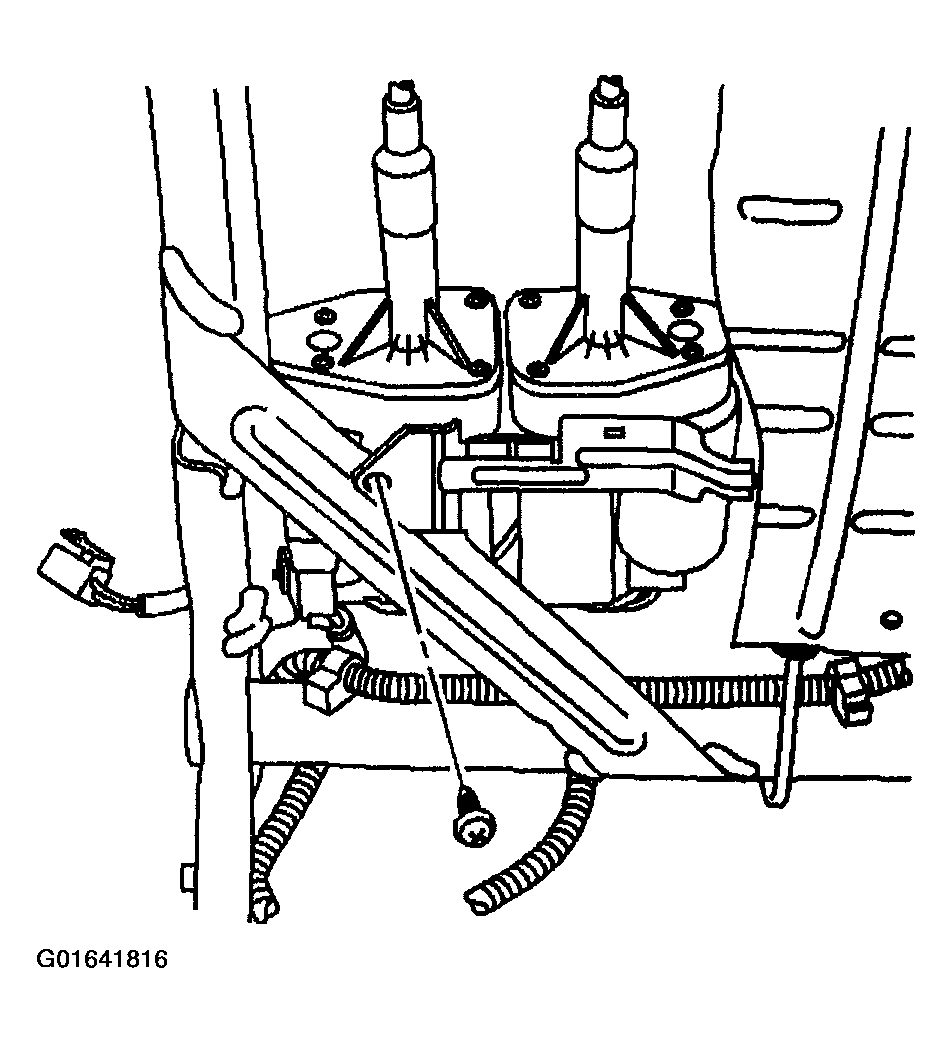

    3. Fig 1: Lumbar Motor Mounting Screw
    G01641816Courtesy of GENERAL MOTORS CORP.
  3. Attach the lumbar clips onto the top and bottom of the seat back frame.
  4. Connect the electrical connector to the lumbar motor.
  5. Install the seat back panel. Refer to SEAT BACK PANEL REPLACEMENT - FRONT  .
  6. Install the seat back pad and cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  7. Install the seat in the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
