Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2  .
  2. Remove the seat belt buckle assembly.
  3. Remove the seat latch rod. Refer to SEAT LATCH ROD REPLACEMENT - REAR NO. 2  .
  4. Remove the seat riser latch assembly. Refer to SEAT RISER LATCH ASSEMBLY REPLACEMENT - REAR NO. 2  .
  5. Remove the seat adjuster cross bar. Refer to SEAT ADJUSTER CROSS BAR REPLACEMENT - REAR NO. 2  .
  6. Unhook the J-strip (1) from the bottom of the seat back cover.

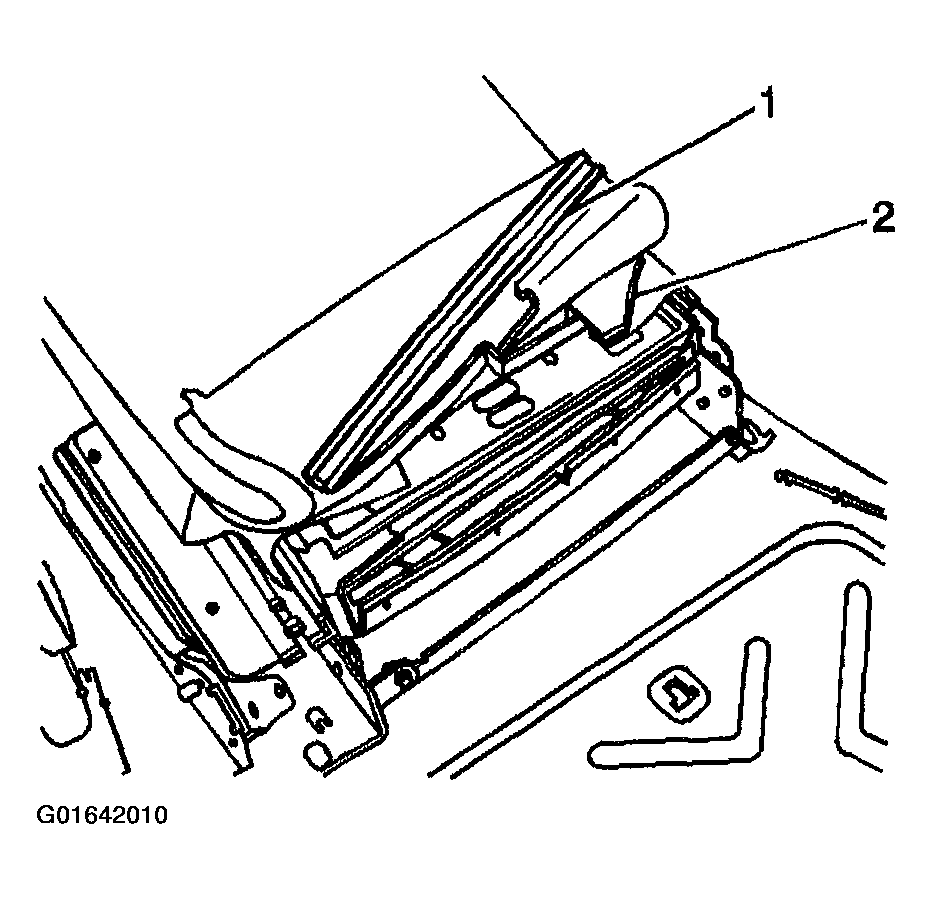

    7. Fig 1: Unhook J-Strip From Bottom Of Seat Back Cover
    G01642010Courtesy of GENERAL MOTORS CORP.
  7. Remove the hog rings (2) from the seat back cover flaps.
  8. Pull the seat cover up to expose the rear seat back mounting bolts.
  9. Remove the two rear seat back mounting bolts (1) securing the inner riser assembly to the seat back frame.

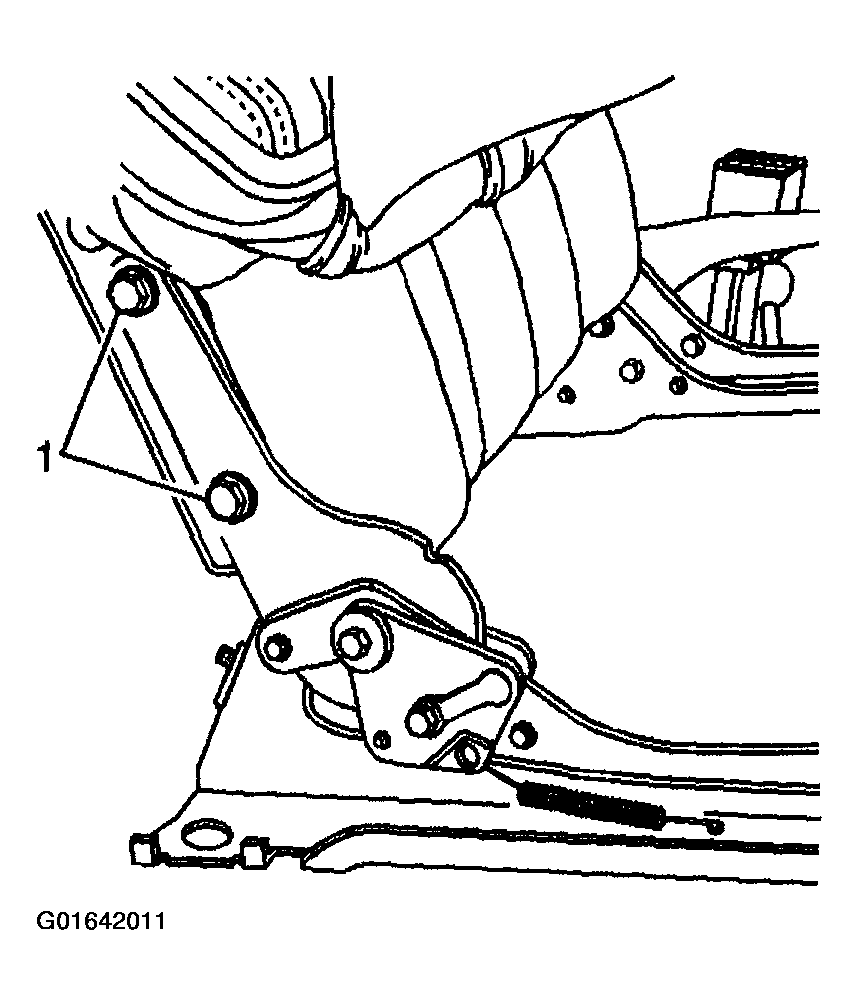

    10. Fig 2: Rear Seat Back Mounting Bolts
    G01642011Courtesy of GENERAL MOTORS CORP.
