Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the two rear seat back mounting bolts (1) securing the inner riser assembly to the seat back frame.

    Tighten

    Tighten the rear seat back mounting bolts to 25 N.m (18 lb ft).

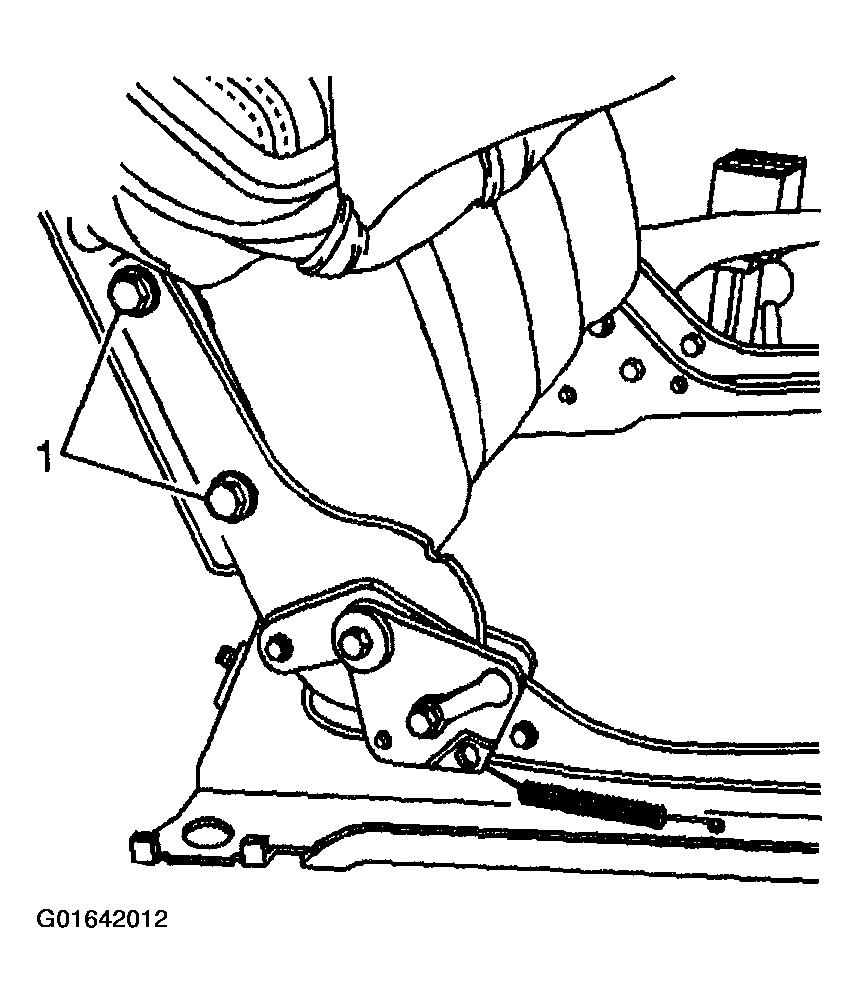

    2. Fig 1: Rear Seat Back Mounting Bolts
    G01642012Courtesy of GENERAL MOTORS CORP.
  2. Pull the seat cover back down over the seat pad.
  3. Secure the seat back cover flaps to the pad with the hog rings (2).
  4. Install the J-strip (1) on the bottom of the seat back cover.

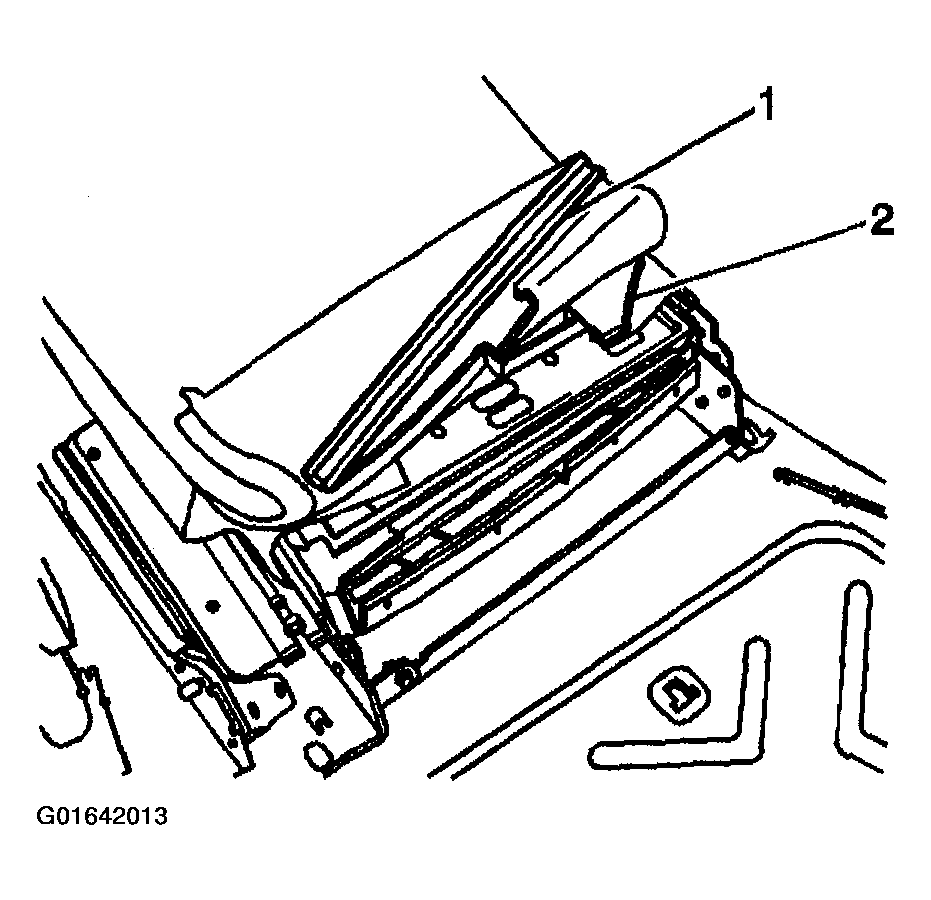

    5. Fig 2: J-Strip On Bottom Of Seat Back Cover
    G01642013Courtesy of GENERAL MOTORS CORP.
  5. Install the seat adjuster cross bar. Refer to SEAT ADJUSTER CROSS BAR REPLACEMENT - REAR NO. 2  .
  6. Install the seat riser latch assembly. Refer to SEAT RISER LATCH ASSEMBLY REPLACEMENT - REAR NO. 2  .
  7. Install the seat latch rod. Refer to SEAT LATCH ROD REPLACEMENT - REAR NO. 2  .
  8. Install the seat belt buckle assembly.
  9. Install the seat in the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2  .
